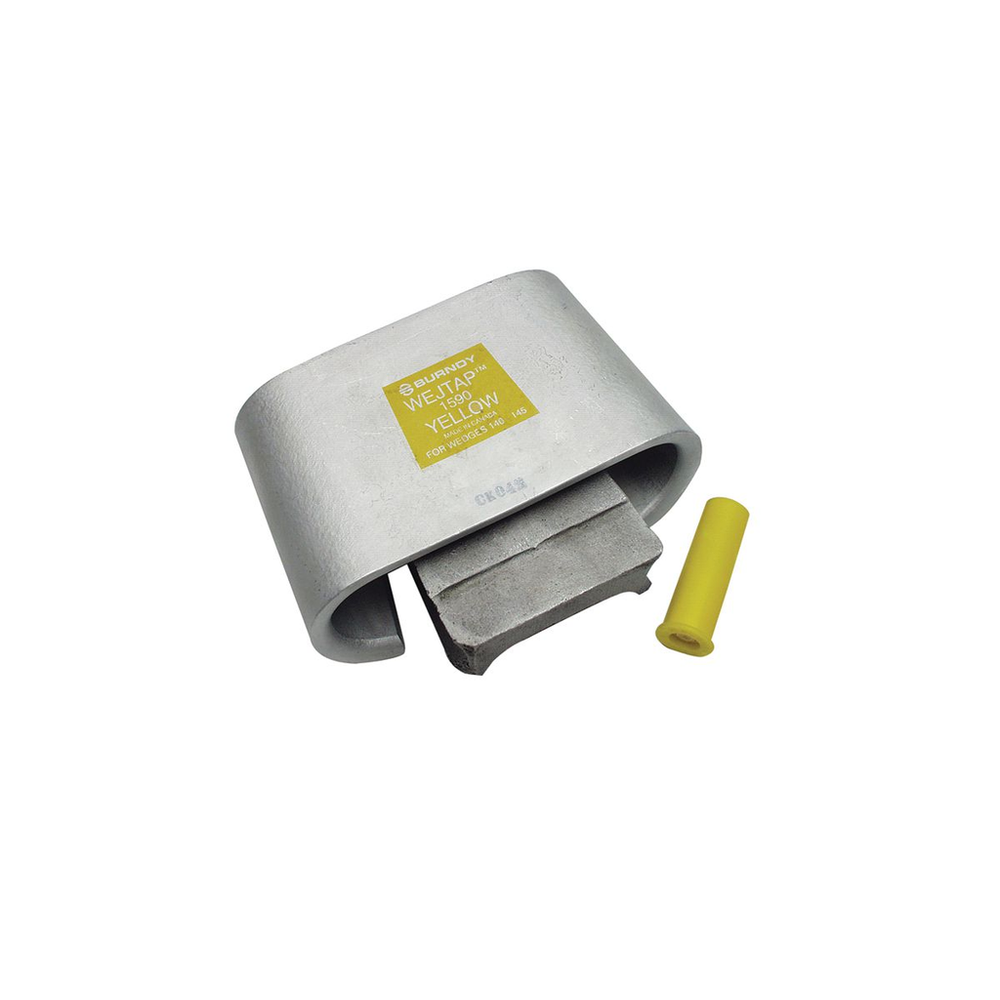

Burndy WCY51PB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Wejtap connector installed with Yellow booster, .537-.750 Run, .324-.557 (Tap).Wejtap connector installed with Yellow booster, .537-.750 Run, .324-.557 (Tap)
Burndy WCY51PB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- No
Specifications
- Application
- For use in tap applications using large run and tap conductor sizes
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810870457
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810870458
- Certification Agency
- Proposition 65
- Class Code
- B32
- Color
- Yellow
- Conductor - ACSR Str Run
- 4/0 (6/1) Penquin AWG;80 (8/1) Grouse kcmil;101.8 (12/7) Petrel kcmil;110.8 (12/7) Minorca kcmil;134.6 (12/7) Leghorn kcmil;159 (12/7) Guinea kcmil;176.9 (12/7) Dotterel kcmil;190.8 (12/7) Dorking kcmil;211.3 (12/7) Cochin kcmil;203.2 (16/9) Brahma kcmil;266.8 (18/1) Waxwing kcmil;266.8 (26/7) Owl kcmil;266.8 (26/7) Partridge kcmil;300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil
- Conductor - ACSR Str Run Range
- 4/0 (6/1) Penquin AWG-397.5 (26/7) Ibis kcmil
- Conductor - ACSR Str Tap
- 2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Tap Range
- 2 (7/1) Sparate AWG-4/0 (6/1) Penquin AWG
- Conductor - AL Str Run
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil
- Conductor - AL Str Run Range
- 4/0 AWG-450 kcmil
- Conductor - AL Str Tap
- 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Tap Range
- 1 AWG-250 kcmil
- Conductor Type
- ACSR C Str-Run;AL C Str-Run;ACSR C Str-Tap;AL C Str-Tap
- Connector Type
- Tap
- Country of Origin
- MX
- Description - Invoice
- Wejtap,0.750 D Max(RUN),0.557 D Max(TAP)
- Dimension - F Width Center to Center inch
- 3 in
- Dimension - G inch
- 1.37 in
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 7.68 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- Yes
- Order Multiple
- 10 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810870458
- Package Height
- 4.88 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 10 EA
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810870457
- Package - Total Units
- 10 EA
- Package Weight
- 10 lb.
- Package Width
- 6.38 in
- Product Type
- Wejtap
- Special Features
- Features: With Yellow Power Booster, ANSI Class AA, Booster: WPBY Box 25, Conductor Size (tap - Mm): 8 - 14 SQ-MM, Color Code: Yellow, Booster Color: Yellow, Installation Tool: WTRB Tool, Cable Diameter Range (run): 0.537 - 0.75 IN, Conductor Type: Run: AAC, Tap: AAC, Copper, Cable Diameter Range (tap): 0.324 - 0.557 IN, Conductor Size (run - Mm): 14 - 19 SQ-MM
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- NC
- Stock Indicator
- N - Non-stock
- Sub Brand
- WEJTAP
- Sub Class Code
- B32B61F
- Trade Name
- WEJTAP™
- Type
- Wejtap Connector with Booster
- Width
- 7.68 in
