Burndy WCR31
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

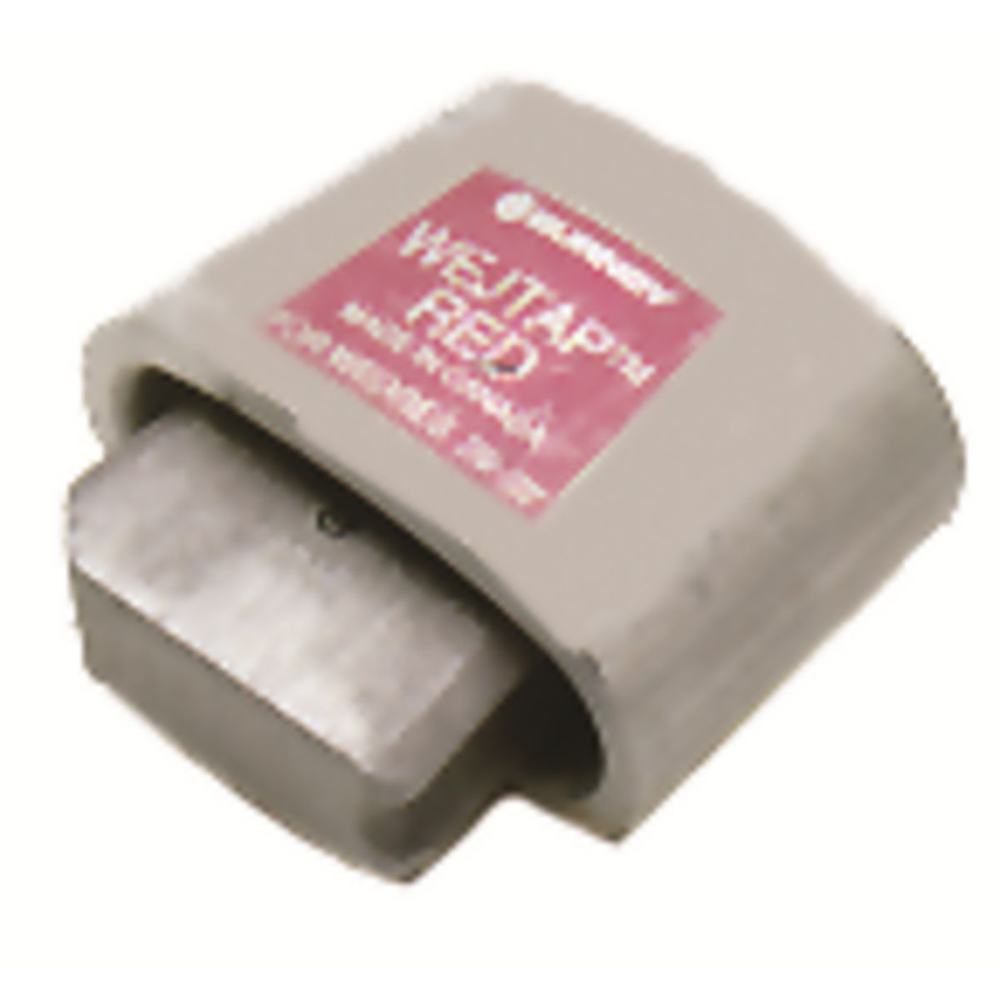

Wejtap connector installed with red booster, .257-398 (Run), .162-.258 (Tap).Wejtap connector installed with red booster, .257-398 (Run), .162-.258 (Tap)
Burndy WCR31 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For use in tap applications using large run and tap conductor sizes
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810872109
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810872100
- Certification Agency
- Proposition 65
- Class Code
- B32
- Color
- Red
- Conductor - ACSR Str Run
- 4 (7/1) Swanate AWG;3 (6/1) Swallow AWG;2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG;1 (6/1) Robin AWG;1/0 (6/1) Raven AWG
- Conductor - ACSR Str Run Range
- 4 (7/1) Swanate AWG-1/0 (6/1) Raven AWG
- Conductor - ACSR Str Tap
- 6 (6/1) Turkey AWG;5 (6/1) Thrush AWG;4 (6/1) Swan AWG;4 (7/1) Swanate AWG
- Conductor - ACSR Str Tap Range
- 6 (6/1) Turkey AWG-4 (7/1) Swanate AWG
- Conductor - AL Str Run
- 2 AWG;1 AWG;1/0 AWG
- Conductor - AL Str Run Range
- 2 AWG-1/0 AWG
- Conductor - AL Str Tap
- 8 AWG;6 AWG;4 AWG;3 AWG
- Conductor - AL Str Tap Range
- 8 AWG-3 AWG
- Connector Type
- Tap
- Country of Origin
- MX
- Description - Invoice
- Wejtap,Sum of Diameter: 0.602 IN Max.
- Dimension - F Width Center to Center inch
- 1.40 in
- Dimension - G inch
- 0.92 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 5.91 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 5.75 lb.
- Package - GTIN - Package
- 30781810872100
- Package Height
- 6.38 in
- Package Length
- 6.88 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810872109
- Package - Total Units
- 25 EA
- Package Weight
- 5.75 lb.
- Package Width
- 5.88 in
- Product Type
- Wejtap
- Special Features
- Features: Without Red Power Booster, ANSI Class AA, Booster: WPBR Box 25, Conductor Size (tap - Mm): 4 - 7 SQ-MM, Installation Tool: WTRB Tool, Color Code: Red, Cable Diameter Range (run): 0.257 - 0.398 IN, Conductor Type: Run: ACSR, AAC, Tap: ACSR, AAC, Copper, Conductor Size (run - Mm): 7 - 10 SQ-MM, Cable Diameter Range (tap): 0.162 - 0.258 IN
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- WEJTAP
- Sub Class Code
- B32B60F
- Trade Name
- WEJTAP™
- Type
- Wejtap Connector
- UL Listed
- No
- Width
- 5.91 in
