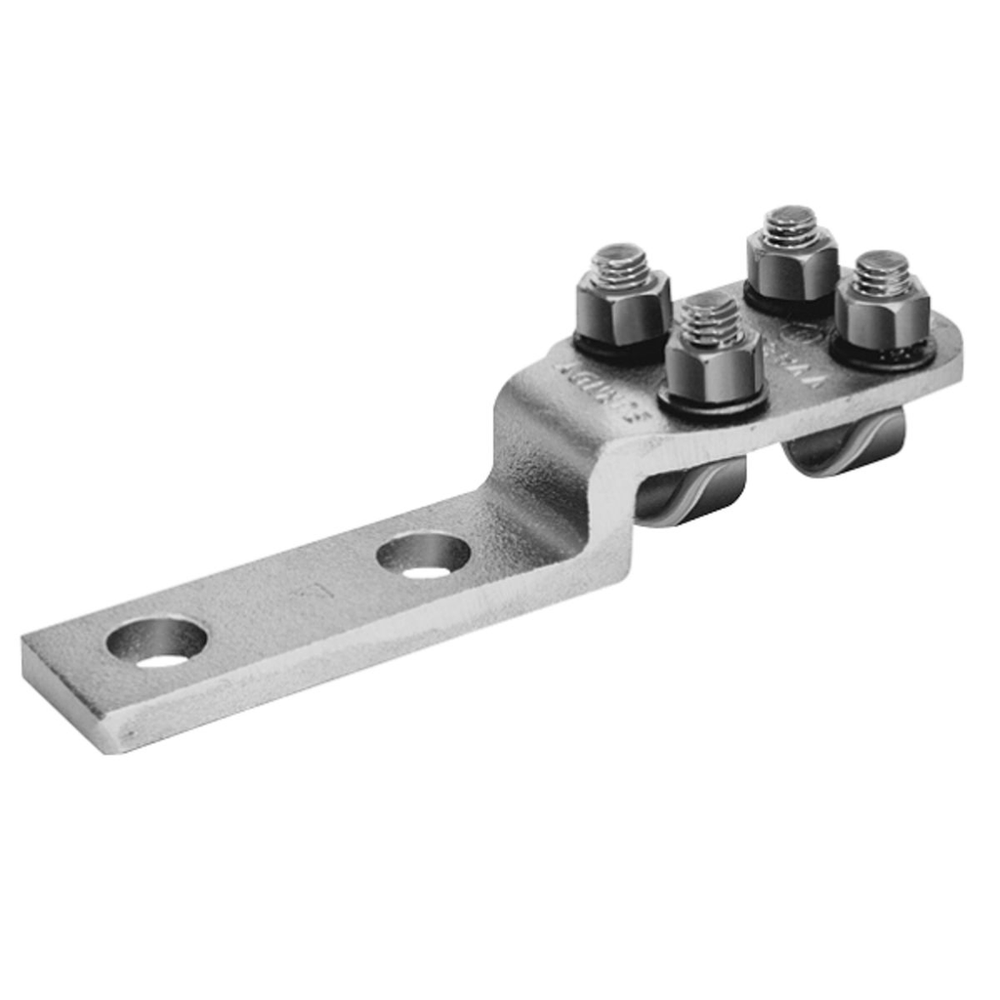

Burndy VVA302N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper VARILUG, Cable Range: 300 Kcmil - 1/0 Str.Copper VARILUG, Cable Range: 300 Kcmil - 1/0 Str.
Burndy VVA302N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810005699
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810005690
- Certification Agency
- Proposition 65
- Clamping Element Design
- V Bolt
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Flat
- Conductor - Copper Solid Size
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 1/0 AWG-4/0 AWG
- Conductor - Copper Str Size
- 300 kcmil
- Conductor - Copper Str Size Range
- 300 kcmil
- Conductor Type
- CU C Str-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 1/0-300 CU LUG 2 VEE BOL
- Dimension - B Length inch
- 1.09 in
- Dimension - D inch
- 3.56 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 2-3/16 in
- Dimension - Height inch
- 2.19 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 6.56 in
- Dimension - L Length Overall mm
- 167 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Size inch
- 1.13 x 3.56
- Dimension - Pad Width inch
- 1.13 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Width inch
- 1.94 in
- Dimension - Width mm
- 49 mm
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 0.87 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 325 LBS/in
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- Number of Conductors/Ports (Main/Primary)
- 1
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.88 lb.
- Package - GTIN - Package
- 30781810005690
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 6 EA
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810005699
- Package - Total Units
- 6 EA
- Package Weight
- 8.88 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Clamping Elements
- 2
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Pad Alignment
- Offset
- Physical Attribute - Pad Configuration
- 1.13 x 3.56 - 2 holes
- Physical Attribute - Pad Orientation
- Straight
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- VVA302N
- Special Features
- Features: High Copper Alloy Terminal Type VVA, Twin Elements Secure Joint Against Vibration And Flexing, Particularly Recommended For Use On Extra Flexible Cables, One-Wrench Installation, Dimension T: 5/16 IN, Dimension N: 5/8 IN, Dimension D: 3-9/16 IN, Dimension K: 9/16 IN, Number Of Clamping Elements: 2, Tongue Width: 1-1/8 IN, Installation Torque: 325 IN-LB, Height: 2-3/16 IN, Length: 6-9/16 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- MECHANICAL CONNECTOR, VARILUG
- Sub Class Code
- B21B03F
- Trade Name
- VARILUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 0.87 in
