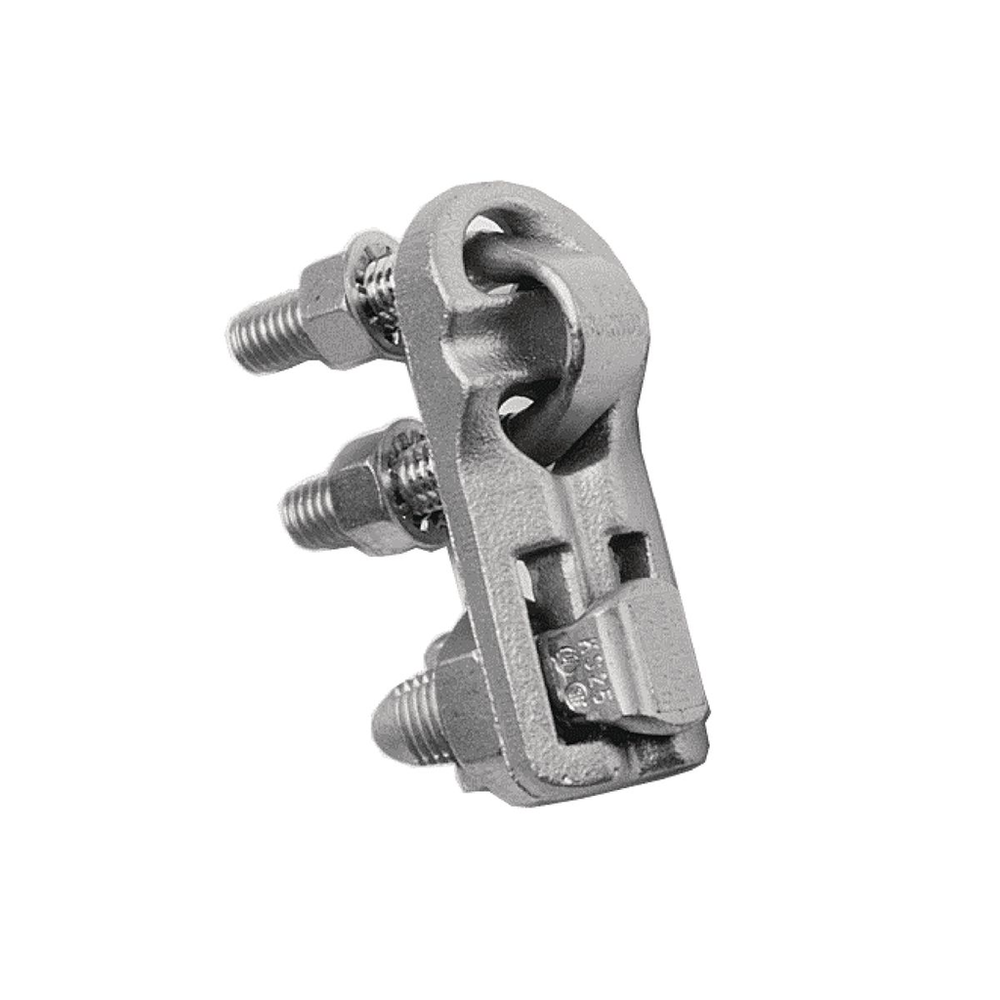

Burndy VT4428
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
High Cu Alloy VARITAP T-Connector, Bolted, Cable to Cable, 750 - 1000 Kcmil(Run), 1/0 Str - 4/0 Str(Tap).High Cu Alloy VARITAP T-Connector, Bolted, Cable to Cable, 750 - 1000 Kcmil(Run), 1/0 Str - 4/0 Str(Tap)
Burndy VT4428 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810005668
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810005669
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Cable
- Conductor - Copper Solid Tap
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Str Run
- 750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
- Conductor - Copper Str Run Range
- 750 kcmil-1000 kcmil
- Conductor - Copper Str Tap
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Tap Range
- 1/0 -4/0 AWG
- Conductor Type
- CU C Str-Run;CU C Str-Tap
- Connector Type
- T-Connector
- Country of Origin
- US
- Dimension - Height fraction
- 2-7/8 in
- Dimension - Height inch
- 2.88 in
- Dimension - Length Overall inch
- 4.13 in
- Dimension - L Length Overall mm
- 105 mm
- Dimension - Width fraction
- 1-3/4 in
- Dimension - Width inch
- 1.69 in
- Dimension - Width mm
- 43 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 2.7 LBS/in
- Installation Torque Recommended Run in-lb
- 500 LBS/in
- Installation Torque Recommended Tap in-lb
- 250 LBS/in
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810005669
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 3
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B03F
- Trade Name
- VARITAP™
- Type
- Bolted Tees
- UL Listed
- Yes
