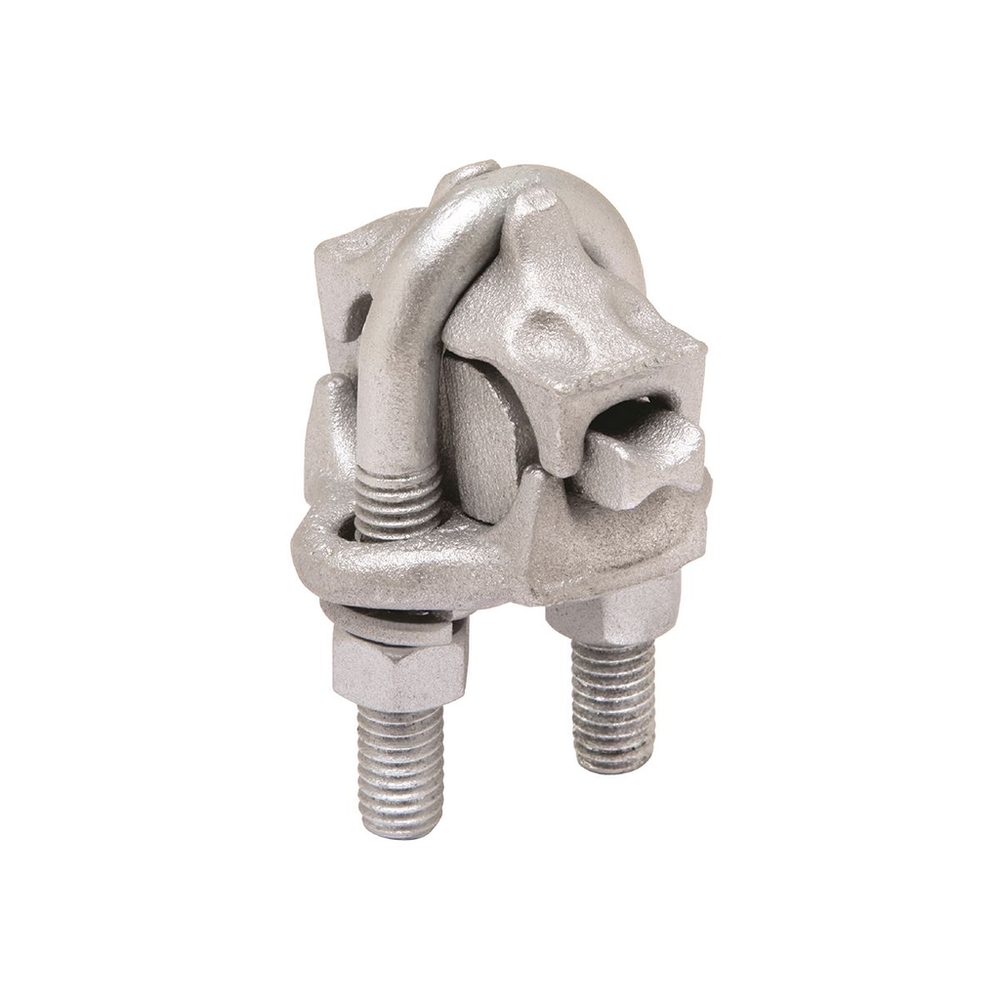

Burndy UW25R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CLIPIT deadend clamp. High strength aluminum casting with galvanized steel U-bolt. Holding strength of two deadends exceeds RBS of intended conductor.CLIPIT deadend clamp. High strength aluminum casting with galvanized steel U-bolt. Holding strength of two deadends exceeds RBS of intended conductor.
Burndy UW25R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810108000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810108001
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - AAAC 5005 Run
- 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
- Conductor - AAAC 5005 Run Range
- 30.58 (7)-123.3 (7)
- Conductor - AAAC 5005 Size A
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 5005 Size A Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 5005 Size B
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 5005 Size B Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 5005 Tap
- 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
- Conductor - AAAC 5005 Tap Range
- 30.58 (7)-123.3 (7)
- Conductor - AAAC 6201 Run
- 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
- Conductor - AAAC 6201 Run Range
- 30.58 (7)-123.3 (7)
- Conductor - AAAC 6201 Size A
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 6201 Size A Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 6201 Size B
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 6201 Size B Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 6201 Tap
- 30.58 (7);48.69 (7);77.47 (7);123.3 (7)
- Conductor - AAAC 6201 Tap Range
- 30.58 (7)-123.3 (7)
- Conductor - ACSR Str Run
- 6 (6/1) Turkey;5 (6/1) Thrush;4 (6/1) Swan;4 (7/1) Swanate;3 (6/1) Swallow;2 (6/1) Sparrow;2 (7/1) Sparate;1 (6/1) Robin;1/0 (6/1) Raven
- Conductor - ACSR Str Run Range
- 6 (6/1) Turkey-1/0 (6/1) Raven
- Conductor - ACSR Str Tap
- 6 (6/1) Turkey;5 (6/1) Thrush;4 (6/1) Swan;4 (7/1) Swanate;3 (6/1) Swallow;2 (6/1) Sparrow;2 (7/1) Sparate;1 (6/1) Robin;1/0 (6/1) Raven
- Conductor - ACSR Str Tap Range
- 6 (6/1) Turkey-1/0 (6/1) Raven
- Conductor - AL Str Run
- 6;4;3;2;1;1/0;2/0
- Conductor - AL Str Size A
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
- Conductor - AL Str Size A Range
- 6 AWG-1/0 AWG
- Conductor - AL Str Size B
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
- Conductor - AL Str Size B Range
- 6 AWG-1/0 AWG
- Conductor - AL Str Tap
- 6;4;3;2;1;1/0;2/0
- Connector Type
- Deadend
- Country of Origin
- US
- Dimension - B Length fraction
- 1-46/63 in
- Dimension - B Length inch
- 1.73 in
- Dimension - Height fraction
- 2-7/8 in
- Dimension - Height inch
- 2.83 in
- Dimension - Length Overall inch
- 1.875 in
- Dimension - L Length Overall mm
- 48 mm
- Dimension - Width fraction
- 2 in
- Dimension - Width inch
- 1.98 in
- Dimension - Width mm
- 50 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 7616995190
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Material - Hardware
- Galvanized Steel
- Oxide Inhibitor Type
- Penetrox A
- Package - GTIN - Package
- 30781810108001
- Package Quantity
- 25 EA
- Package - Total Units
- 25 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Mechanical
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B31B5EF
- Trade Name
- CLIPIT™
- UL Listed
- No
