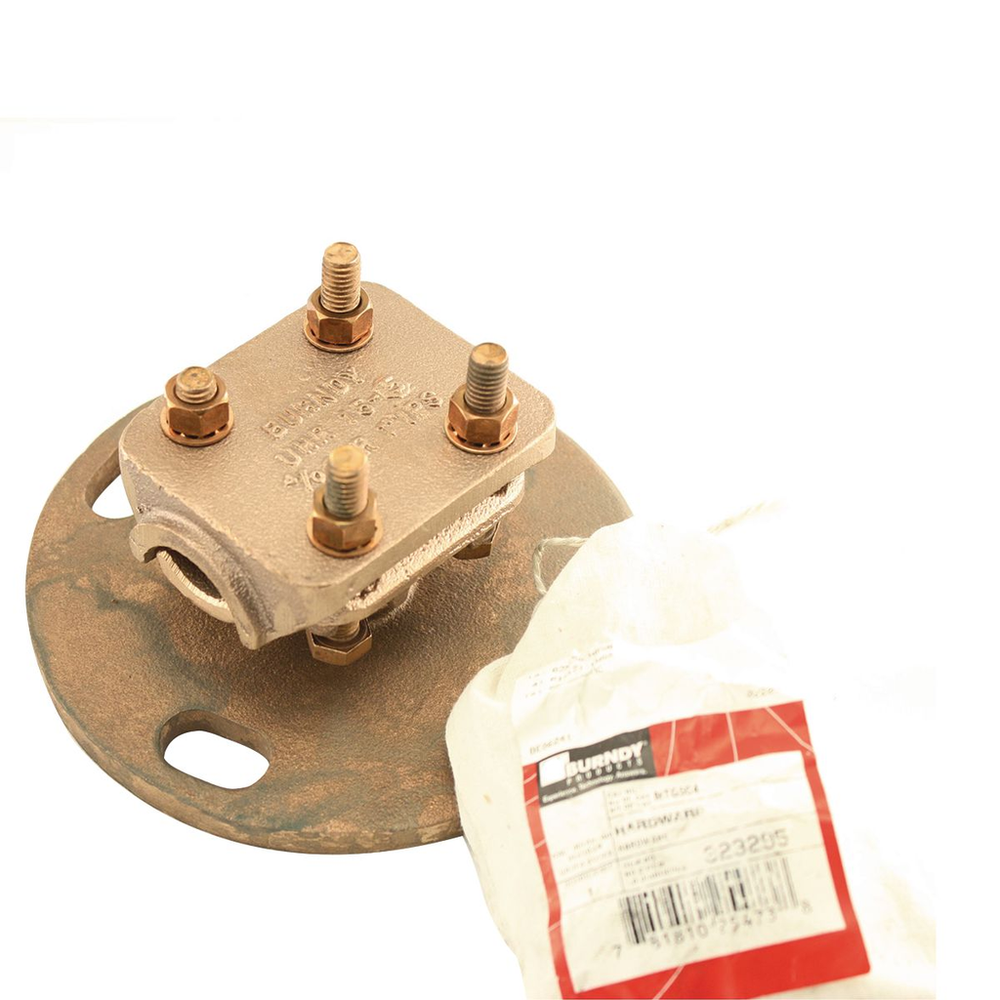

Burndy UHR175
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Cu Alloy Bus Support, CU Str. Size: 750 Kcmil - 1250 Kcmil, CU Pipe Size: 3/4"-1-1/2" IPS, 5 IN Bolt Circle Dia.Cast Cu Alloy Bus Support, CU Str. Size: 750 Kcmil - 1250 Kcmil, CU Pipe Size: 3/4"-1-1/2" IPS, 5 IN Bolt Circle Dia
Burndy UHR175 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Bolt Circle Diameter
- 5.00 in
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810004517
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810004518
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Base to Tube or Cable
- Conductor - Copper Str Size
- 750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil;1250 kcmil;1300 kcmil;1500 kcmil;1600 kcmil;1750 kcmil;2000 kcmil;2500 kcmil
- Conductor - Copper Str Size Range
- 750 kcmil-2500 kcmil
- Conductor - Copper Tube Std Size
- 3/4 IPS;1 IPS;1 1/4 IPS;1 1/2 IPS
- Conductor - Copper Tube Std Size Range
- 3/4 IPS-1 1/2 IPS
- Connector Type
- Bus Support
- Country of Origin
- US
- Dimension - B Length fraction
- 2-7/8 in
- Dimension - B Length inch
- 2.81 in
- Dimension - G inch
- 2.50 in
- Dimension - Height fraction
- 4-1/4 in
- Dimension - Height inch
- 4.25 in
- Dimension - Hole Size fraction
- 11/16
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Width fraction
- 4 in
- Dimension - Width inch
- 3.94 in
- Dimension - Width mm
- 100 mm
- Fitting Type
- Rigid Conduit
- Freight Class Code
- 16027000
- Hardware Type
- Cap mounting kit (w/o nuts)
- Harmonization Code
- 7419805050
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 in-lb
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Mounting Hardware
- 5/8 X 1" Hot Dipped Galv. Steel Hex. Head Bolts
- Number Of Conductors
- 1
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810004518
- Package Quantity
- 2 EA
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- UHR175
- Standard Package Quantity
- 2
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B01F
- Type
- Cable or Tube to Insulator Bus Supports
- UL Listed
- No
