Description

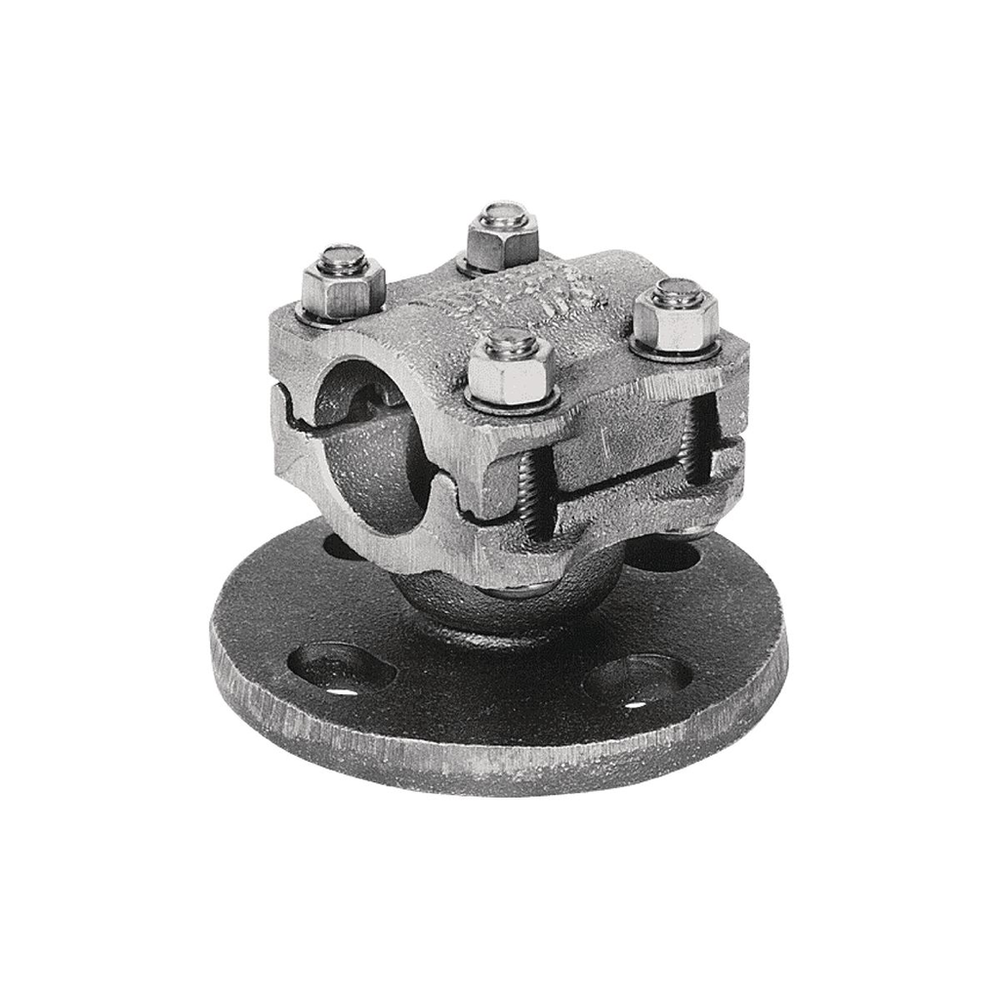

Cast Cu Alloy Bus Support, 3" IPS, 5." Bolt Dia, 5/8" Bolt.Cast Cu Alloy Bus Support, 3" IPS, 5." Bolt Dia, 5/8" Bolt
Burndy UH205 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Bolt Circle Diameter
- 5.00 in
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810004500
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810004501
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Base to Tube
- Conductor - Copper Tube EH Size
- 3 IPS
- Conductor - Copper Tube EH Size Range
- 3 IPS
- Conductor - Copper Tube Std Size
- 3 IPS
- Conductor - Copper Tube Std Size Range
- 3 IPS
- Conductor Type
- CU Tube Std-Size;CU Tube EH-Size
- Connector Type
- Bus Support
- Country of Origin
- US
- Dimension - B Length fraction
- 3-1/4 in
- Dimension - B Length inch
- 3.25 in
- Dimension - G inch
- 3.63 in
- Dimension - Height fraction
- 5-7/8 in
- Dimension - Height inch
- 5.88 in
- Dimension - Hole Size fraction
- 11/16
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Width fraction
- 6-1/4 in
- Dimension - Width inch
- 6.25 in
- Dimension - Width mm
- 159 mm
- Fitting Type
- Slip or Rigid
- Freight Class Code
- 16027000
- Hardware Type
- Cap mounting kit (w/o nuts)
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 660 in-lb
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Mounting Hardware
- 5/8-11 x 1" LG
- Number Of Conductors
- 1
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810004501
- Package Quantity
- 2 EA
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 2
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B01F
- Type
- Cable or Tube to Insulator Bus Supports
- UL Listed
- No
