Burndy UGSKIT250
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

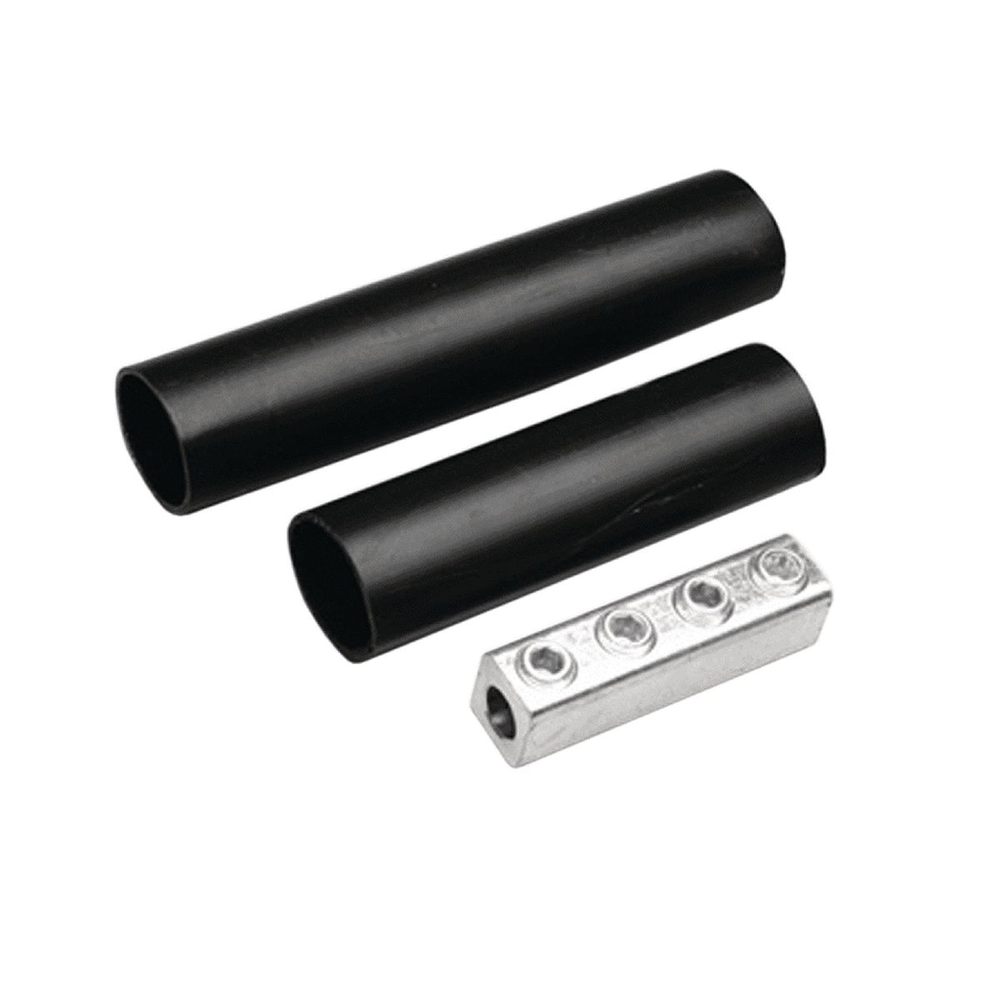

Watertight Underground Splice Kit, 1 AWG-250 kcmil, w/ Two Heavy Wall Heat Shrink Sleeves, Al/Cu Rated.Watertight Underground Splice Kit, 1 AWG-250 kcmil, w/ Two Heavy Wall Heat Shrink Sleeves, Al/Cu Rated
Burndy UGSKIT250 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Aluminum or Copper/Aluminum Combinations, UF Direct Burial
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810175286
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810175287
- Class Code
- B51
- Conductor - AL Str Size
- 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Size Range
- 1 AWG-250 kcmil
- Conductor - Copper Str Size
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 1 AWG-250 kcmil
- Conductor Size
- 1 AWG-250 KCMIL
- Connector Type
- Splice/Heat Shrink Kit
- Country of Origin
- CA
- Description - Invoice
- UNDERGROUND SPLICE KIT
- Description - Slang
- Splice Kit
- Dimension - Length Overall inch
- 4.00 in
- Dimension - L Length Overall mm
- 102 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.50 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Hex Size
- 5/16
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486D
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.2 lb.
- Package - GTIN - Package
- 30781810175287
- Package Height
- 2.00 in
- Package Length
- 11.5 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810175286
- Package - Total Units
- 10 EA
- Package Weight
- 5.2 lb.
- Package Width
- 7.00 in
- Physical Attribute - Screw Type
- Allen
- Plated
- N
- Plating Type
- Unplated
- Product Type
- SPLICE REDUCER
- Rating - Minimum Voltage
- 600
- Special Features
- Features: Type UGS Watertight Underground Splice Kit Consists Of A Standard Ams Splice/Reducer And Two Heavy Wall Heat-Shrink Sleeves, The Ams Splice Is Dual Rated For Use With Aluminum And Copper Conductors And Are Constructed From High Strength, Tin Plated Aluminum That Provides Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Connector Installed With Common Installation Tools, Both Heavy Wall Heat Shrink Sleeves Are Lined With Adhesive Material, Providing A Watertight Splice That Can Withstand Abrasions That May Occur During Direct Burial Applications, Heat Shrink Sleeve Installed With Standard Propane Torch, Or Electric Heat Gun, Includes: (4) 5/16 IN Hex Screws, Material: Aluminum, Finish: Tin Plated
- Standard
- UL486D
- Standard Package Quantity
- 10
- Standards - Industry Standards Met
- UL486D
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- SPLICE KIT
- Sub Class Code
- B51BGIF
- Temperature Rating
- 194
- Type
- UGSKIT, Watertight/ Underground
- UL Listed
- Yes
- Width
- 1.50 in
