Description

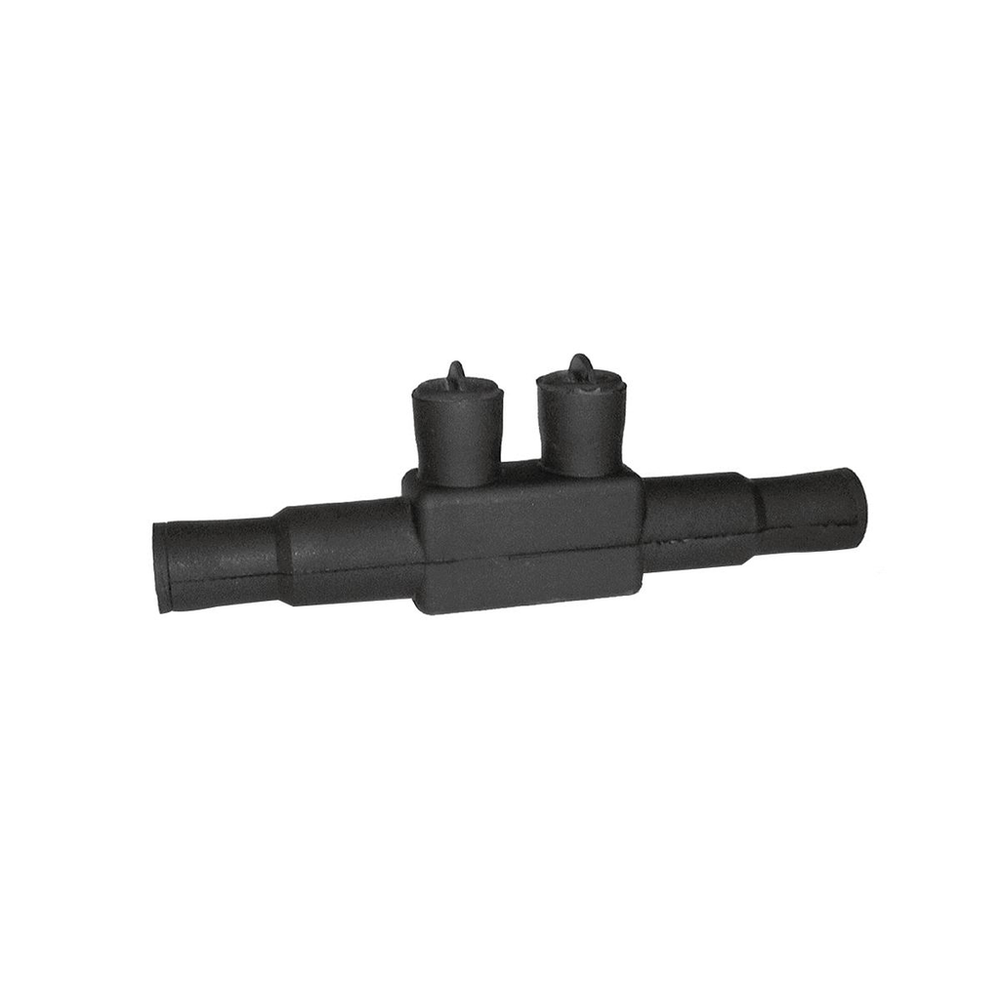

In-Line Splice/Reducer For Direct Burial, 12 AWG - 350 kcmil, 5/16", Dual rated AL9CU for CU or AL.In-Line Splice/Reducer For Direct Burial, 12 AWG - 350 kcmil, 5/16", Dual rated AL9CU for CU or AL
Burndy UGS350ULDB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- For Direct Burial
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810343807
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810343808
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Size
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Size Range
- 8 AWG-350 kcmil
- Conductor - Copper Str Size
- 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 12 AWG-350 kcmil
- Conductor Size
- 12 AWG-350 KCMIL
- Conductor Type
- AL C Str-Size;CU C Str-Size
- Connector Type
- In-Line
- Country of Origin
- US
- Description - Invoice
- UNDERGRND SPLICE 12-350
- Description - Slang
- Splice Kit
- Dimension - Height fraction
- 2.8333333333333335 in
- Dimension - Height inch
- 2.81 in
- Dimension - Length Overall inch
- 8.50 in
- Dimension - L Length Overall mm
- 216 mm
- Dimension - Strip Length inch
- 1 3/8
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.81 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Hex Size
- 5/16
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486D
- Installation Torque Recommended in-lb
- 350 LBS/in
- Insulation
- Y
- Insulation Type
- Rubber
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Brass
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 13.896 lb.
- Package - GTIN - Package
- 30781810343808
- Package Height
- 12.5 in
- Package Length
- 14 in
- Package - Number of Sub Packs
- 24
- Package - Pack Description
- Package
- Package Quantity
- 24 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810343807
- Package - Total Units
- 24 EA
- Package Weight
- 13.896 lb.
- Package Width
- 12.5 in
- Physical Attribute - Screw Type
- Slot
- Plated
- N
- Plating Type
- Unplated
- Product Type
- SPLICE REDUCER
- Rating - Minimum Voltage
- 600
- Special Features
- Features: EPDM Rubber Covered 6061-T6 Aluminum Connector, Dual Rated AL9CU For Copper Or Aluminum Conductor, UL Listed And CSA Certified For Direct Burial, Broad Range Taking Capability, Low Installation Cost, Installation Torque: 350 IN-LB, Number Of Screws: 2, Hex Size: 5/16 IN
- Standard
- UL486D
- Standard Package Quantity
- 1
- Standards - Industry Standards Met
- UL486D
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- SPLICE KIT
- Sub Class Code
- B51BGIF
- Temperature Rating
- 194
- Trade Name
- UNITAP™
- Type
- In-Line, Underground
- UL Listed
- Yes
- Width
- 2.81 in
