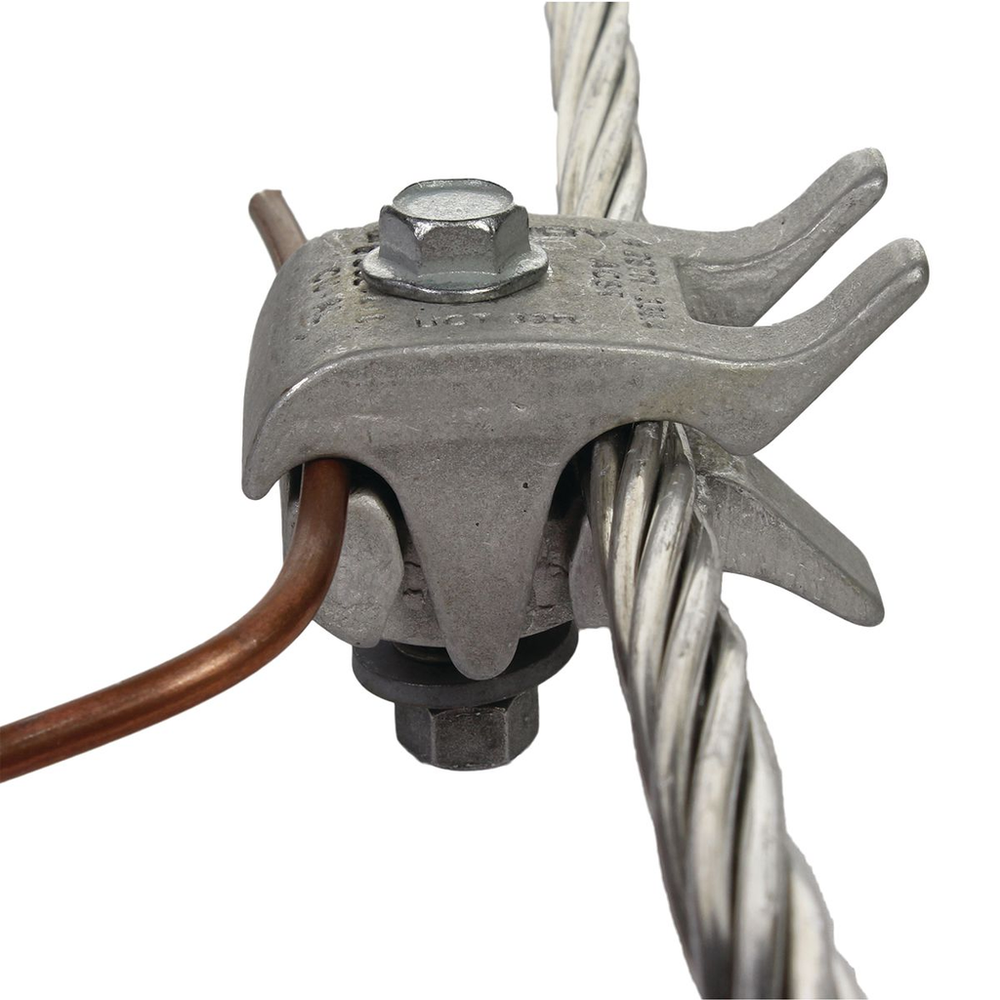

Burndy UCT32R

Certifications

• CSA Approved
  • No

Specifications

• Base Unit of Measure
  • EA
• Class Code
  • B30
• Conductor - AAAC 5005 Size
  • 6 STR - 336.4
• Conductor - AAAC 5005 Size Range
  • 6 STR - 336.4
• Conductor - AAAC 6201 Size
  • 6 STR - 336.4
• Conductor - AAAC 6201 Size Range
  • 6 STR - 336.4
• Conductor - ACSR Str Size
  • 6 STR - 336.4
• Conductor - ACSR Str Size A Range
  • 2 Str. - 336.4
• Conductor - ACSR Str Size B Range
  • 6 Str. - 4/0
• Conductor - AL Str Size A
  • 1 SOL - 400
• Conductor - AL Str Size A Range
  • 1 Sol. - 400
• Conductor - AL Str Size B
  • 8 SOL - 4/0 STR
• Conductor - AL Str Size B Range
  • 8 Sol. - 4/0 Str.
• Conductor - Copper Solid Size
  • 8-400
• Conductor - Copper Solid Size Range
  • 8-400
• Conductor - Copper Str Size A Range
  • 1 Sol. - 400
• Conductor - Copper Str Size B Range
  • 8 Sol. - 4/0 Str.
• Conductor Type
  • AAAC C 5005-Size;AAAC C 6201-Size;ACSR C Str-Size;AL C Str-Size A;AL C Str-Size B;CU C Solid-Size;CU C Str-Size A;CU C Str-Size B;CU Weld C Solid-Size
• Country of Origin
  • MX
• Dimension - Height inch
  • 2.62 in
• Dimension - Length Overall inch
  • 1.62 in
• Dimension - Width inch
  • 2.82 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Lead Time
  • 12 wk
• Material
  • Aluminum
• Package Quantity
  • 20 EA
• Package - Total Units
  • 20 EA
• Package Weight
  • 0.000 lb.
• Plated
  • N
• Plating Type
  • Unplated
• Product Type
  • Mechanical
• Replaced Catalog Number
  • 50091275
• Standard Package Quantity
  • 20
• Standards - RoHS Compliance Status
  • UI
• Sub Class Code
  • B30B3IF
• Trade Name
  • FASTAP™
