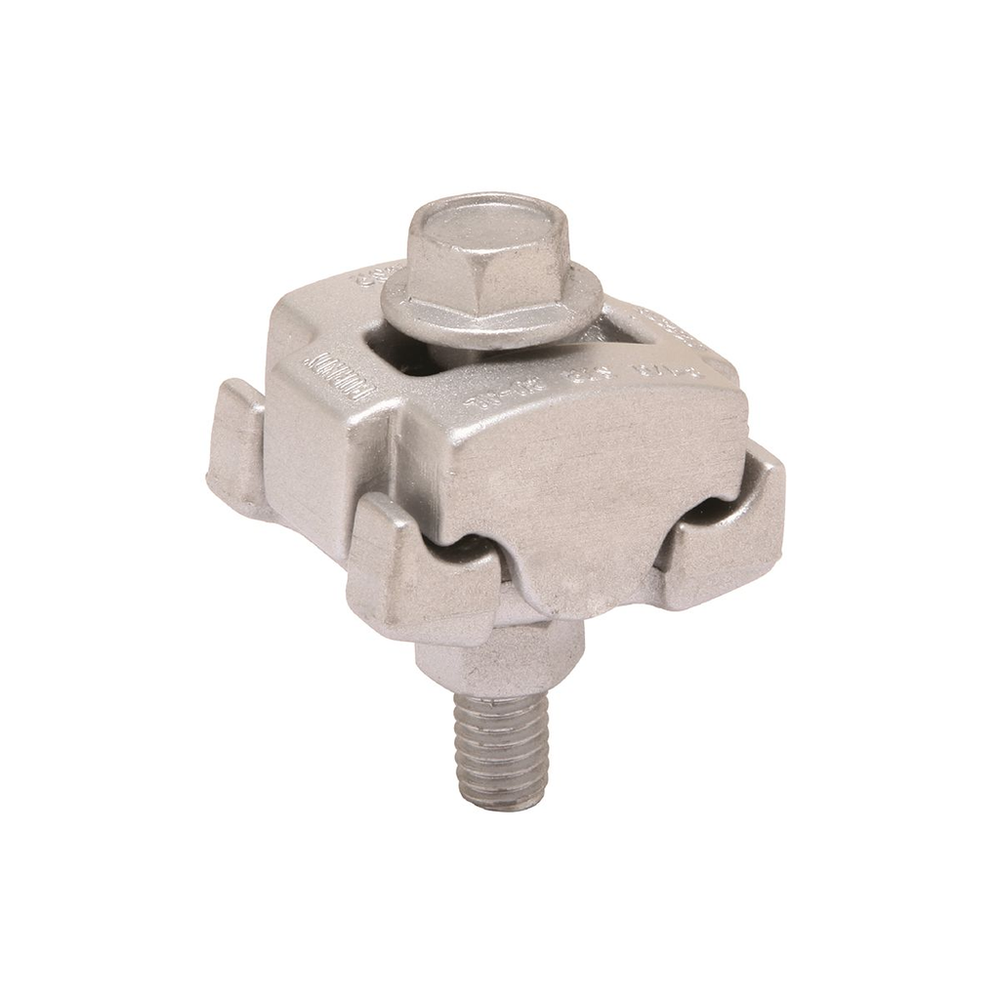

Burndy UCG25R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Multiple purpose parallel groove clamp made of high strength, high conductivity aluminum alloy. Hardware allows for one of two wrench installation,torque:150 in lbs.Multiple purpose parallel groove clamp made of high strength, high conductivity aluminum alloy. Hardware allows for one of two wrench installation,torque:150 in lbs.
Burndy UCG25R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For All Combinations Of Copper, Aluminum, ACSR, 6201 And 5005
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- No
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810097700
- Carton - Total Units
- 100 EA
- Case - Number of Sub Packs
- 4
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810097701
- Case - Total Units
- 100 EA
- Class Code
- B30
- Conductor - AAAC 5005 Size A
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 5005 Size A Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 5005 Size B
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 5005 Size B Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 6201 Size A
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 6201 Size A Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AAAC 6201 Size B
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil
- Conductor - AAAC 6201 Size B Range
- 30.58 (7) kcmil-123.3 (7) kcmil
- Conductor - AL Str Size A
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
- Conductor - AL Str Size A Range
- 8 AWG-1/0 AWG
- Conductor - AL Str Size B
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG
- Conductor - AL Str Size B Range
- 8 AWG-1/0 AWG
- Conductor - Copper Str Size A
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
- Conductor - Copper Str Size A Range
- 8 AWG-1/0
- Conductor - Copper Str Size B
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0
- Conductor - Copper Str Size B Range
- 8 AWG-1/0
- Conductor Type
- AL C Str-Size A;CU C Solid-Size A;CU C Str-Size A;AAAC C 5005-Size A;AAAC C 6201-Size A;AL C Str-Size B;CU C Solid-Size B;CU C Str-Size B;AAAC C 5005-Size B;AAAC C 6201-Size B
- Country of Origin
- CN
- Description - Invoice
- ALCU 8-1/0,8-1/0
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - B Length inch
- 1.41 in
- Dimension - Height inch
- 2.09 in
- Dimension - Width fraction
- 1-5/7 in
- Dimension - Width inch
- 1.71 in
- Dimension - Width mm
- 43 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.87 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.75 lb.
- Package - GTIN - Package
- 30781810097701
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810097700
- Package - Total Units
- 25 EA
- Package Weight
- 5.75 lb.
- Package Width
- 6.13 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: Multiple Purpose Parallel Groove Clamp Made Of High Strength, High Conductivity, Non-Copper Bearing Aluminum Alloy, Properly Proportioned To Minimize Stress Corrosion And Deterioration By Galvanic Action, Interlocking Fingers On Connector Body Halves Prevent Mismatching, Square Shank, Hex Head, Round Collar, High Strength Galvanized Steel Bolt Allows One Or Two-Wrench Installation, Also Supplied Pre-Filled With PENETROX RUS Accepted Joint Compound And Strip sealed, Accommodates Compact And Compressed Conductors Within Diameter Range, Conductor Type: Run: Copper, Aluminum, ACSR, Conductor Size (run - Range): Groove A: Copper And Aluminum: 8 - 1/0 AWG Stranded, ACSR, 6201 And 5005: 6 - 1/0 AWG, Conductor Size (tap Range): Groove B: Copper And Aluminum: 8 - 1/0 AWG Stranded, ACSR, 6201 And 5005: 6 - 10 AWG
- Standard
- RUS
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TAPIT
- Sub Class Code
- B30B3IF
- Trade Name
- TAPIT™
- Type
- UCG-R
- Width
- 1.87 in
