Description

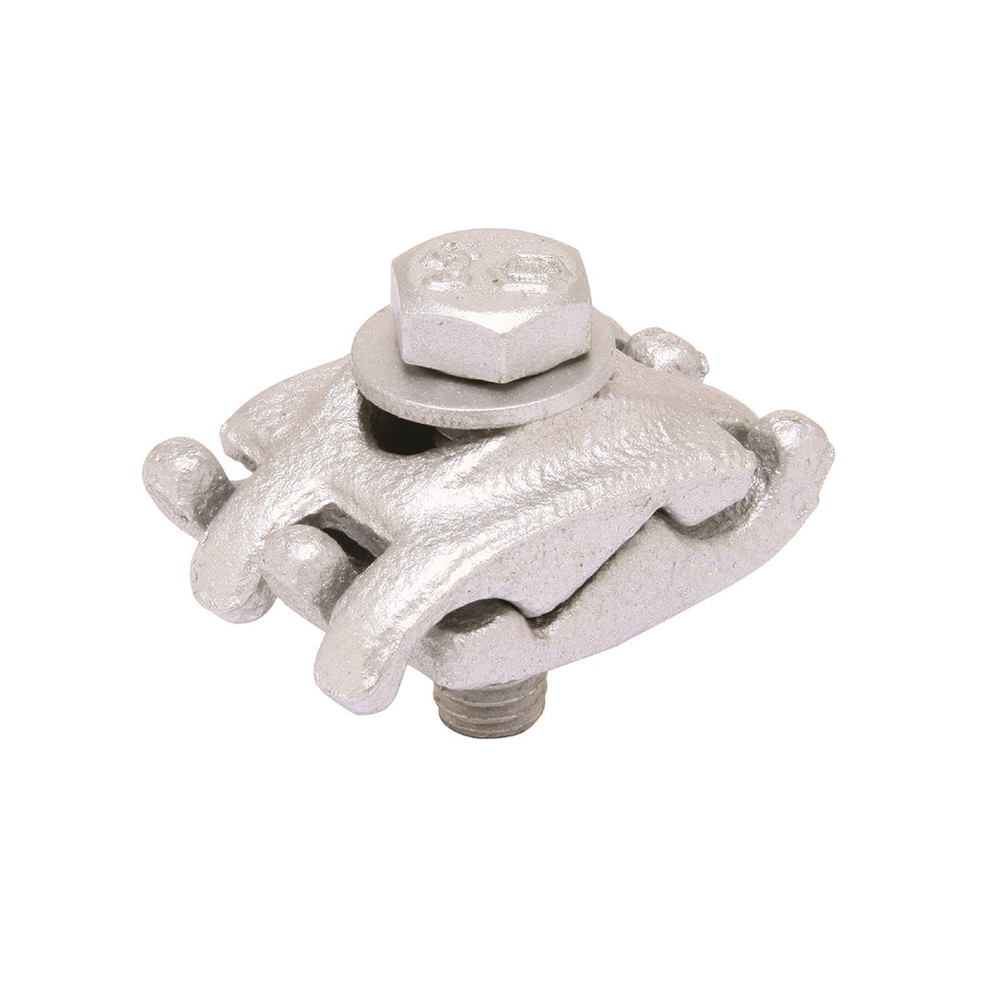

Cast Copper Alloy Universal Parallel Clamp, 8 Sol. - 2/0 Str, 1 in Length, 1-7/16 in Width, Tin-plated.Cast Copper Alloy Universal Parallel Clamp, 8 Sol. - 2/0 Str, 1 in Length, 1-7/16 in Width, Tin-plated
Burndy UC8W26L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Combinations Of Copper, Aluminum, ACSR, 6201, 5005, Steel And Copperweld
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.750x9.688x7.753 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 29.850 lb.
- Carton - Number of Sub Packs
- 150
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810095959
- Carton - Total Units
- 150
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810095950
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Size
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - AAAC 5005 Size Range
- 30.58 (7) kcmil-246.9 (7) kcmil
- Conductor - AAAC 6201 Size
- 30.58 (7) kcmil;48.69 (7) kcmil;77.47 (7) kcmil;123.3 (7) kcmil;155.4 (7) kcmil;195.7 (7) kcmil;246.9 (7) kcmil
- Conductor - AAAC 6201 Size Range
- 30.58 (7) kcmil-246.9 (7) kcmil
- Conductor - AL Str Size
- 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - AL Str Size Range
- 8 AWG-2/0 AWG
- Conductor - Copper Solid Size
- 8 -2/0
- Conductor - Copper Solid Size Range
- 8 -2/0
- Conductor - Copper Str Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
- Conductor - Copper Str Size A
- 8 - 2/0
- Conductor - Copper Str Size A Range
- 8 - 2/0
- Conductor - Copper Str Size B
- 8 - 2/0
- Conductor - Copper Str Size B Range
- 8 - 2/0
- Conductor - Copper Str Size Range
- 8 AWG-2/0 AWG
- Conductor - CopperWeld C Solid Size
- 8 AWG;7 AWG
- Conductor - CopperWeld Solid Size Range
- 8 AWG-7 AWG
- Conductor - Galvanized Steel Str Size
- 5/32 (7) in;3/16 (7) in;7/32 (7) in;1/4 (7) in;9/32 (7) in;5/16 (7) in;3/8 (7) in;7/16 (7) in
- Conductor - Galvanized Steel Str Size Range
- 5/32 (7) in-7/16 (7) in
- Country of Origin
- US
- Description - Invoice
- CLAMP, UNIV JUMPER
- Dimension - B Length inch
- 1 in
- Dimension - Height fraction
- 1-1/2 in
- Dimension - Height inch
- 1.45 in
- Dimension - Width fraction
- 1-7/16 in
- Dimension - Width inch
- 1.48 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.48 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Installation Torque Recommended in-lb
- 75 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 29.85 lb.
- Package - GTIN - Package
- 30781810095950
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 150
- Package - Pack Description
- Package
- Package Quantity
- 150 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810095959
- Package - Total Units
- 150 EA
- Package Weight
- 29.85 lb.
- Package Width
- 7.44 in
- Pallet - GTIN - Package
- 70781810095958
- Pallet Height
- 46.250 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1477.800 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Tin - Electro Plated
- Product Type
- Mechanical
- Replaced Catalog Number
- UC8W26L
- Special Features
- Features: Interlocking Finger Design Accommodates Large Range Of Conductor Sizes, Tin-Plated, Cast Of High Copper Alloy And Clamped With Plated Steel Bolt, PENETROX Joint Compound Recommended With Aluminum And ACSR, Installation Torque: 75 IN-LB For 8 AWG Copper Conductor, Length: 1 IN, Width: 1-7/16 IN, Height: 1-1/2 IN
- Standard
- RUS
- Standard Package Quantity
- 150
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- TAPIT
- Sub Class Code
- B30B39F
- Type
- UC-L, Universal
- UL Listed
- Yes
- Width
- 1.48 in
