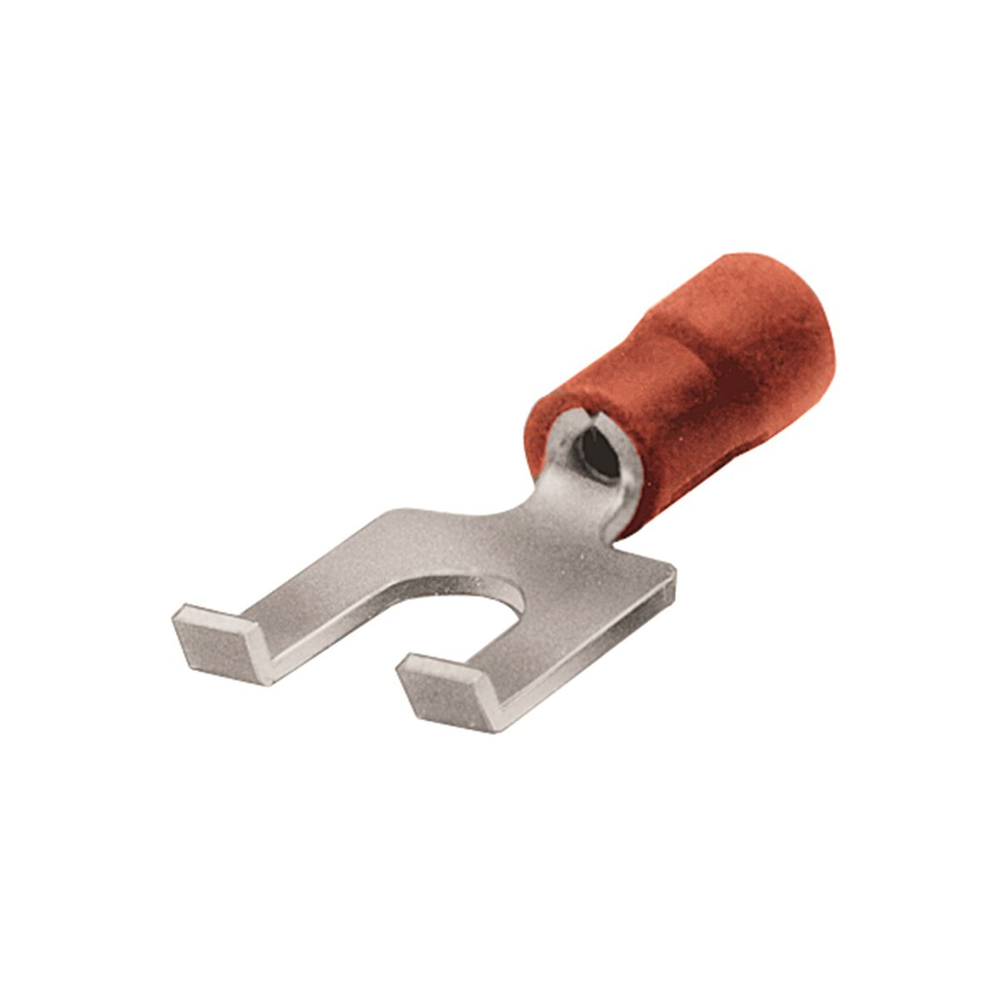

Burndy TP168Z
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Vinyl Flanged Fork Terminal For 22 - 16 AWG.Vinyl Flanged Fork Terminal For 22 - 16 AWG
Burndy TP168Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Fast Installation And Security
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Cable Insulation Diameter Maximum
- 0.145 in
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 1200
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810714768
- Carton - Total Units
- 1200 EA
- Case - Number of Sub Packs
- 12
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810714769
- Case - Total Units
- 1200 EA
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Red
- Conductor Range
- #20 AWG to #22 AWG; 16 AWG to 18 AWG
- Conductor Size
- 22 - 16 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Flanged Fork Terminal
- Country of Origin
- US
- Description - Invoice
- FLANG FK-22-16 AWG-VYL, 0.88 IN L
- Dimension - Bolt Size fraction
- #8
- Dimension - Hole Size fraction
- 9/53
- Dimension - Hole Size inch
- 0.17 in
- Dimension - Length Overall inch
- 0.88 in
- Dimension - L Length Overall mm
- 22 mm
- Dimension - Pad Width inch
- 0.31 in
- Dimension - Strip Length inch
- 1/4 in
- Dimension - Stud Size inch
- #8
- Dimension - Z inch
- 0.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.31 in
- Feature - Barrel Style
- Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 0.2 lb.
- Package - GTIN - Package
- 30781810714769
- Package Height
- 4.25 in
- Package Length
- 2.06 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810714768
- Package - Total Units
- 100 EA
- Package Weight
- 0.2 lb.
- Package Width
- 2.06 in
- Pallet - GTIN - Package
- 70781810714767
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 623.400 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Flanged Fork
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: VINYLUG Type TP-Z Is A Variation Of The Type TP And Employs A Flanged Fork Tongue For Fast Installation And Security, 600 V Maximum, 105 DEG C Maximum, Flange Fork Tongue Design: Allows Fast Installation-Screw Only Has To Be Loosened For Termination, The Flanges On The End Of The Fork Terminal Aid In Preventing A Slightly Loose Terminal From Becoming Fully Disconnected From The Screw, Flanges Make Re-Securing A Loose Terminal Easier, Insulation Diameter (maximum): 0.145 IN, Installation Tool: Plier Type: Y10-22 Tool, Ratchet: MR8-89-1 Tool, Tape Mounted Catalog Number: BA16EZ8M, Bulk Catalog Number: BA16EZ8, Wire Insulation Grip: No, Color Code: Red, Finish: Electro-Tin Plated, Temperature Rating: 105 DEG C Maximum
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VINYLUG
- Sub Class Code
- B57BKMF
- Trade Name
- VINYLUG™
- Type
- Flange Fork
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.31 in
