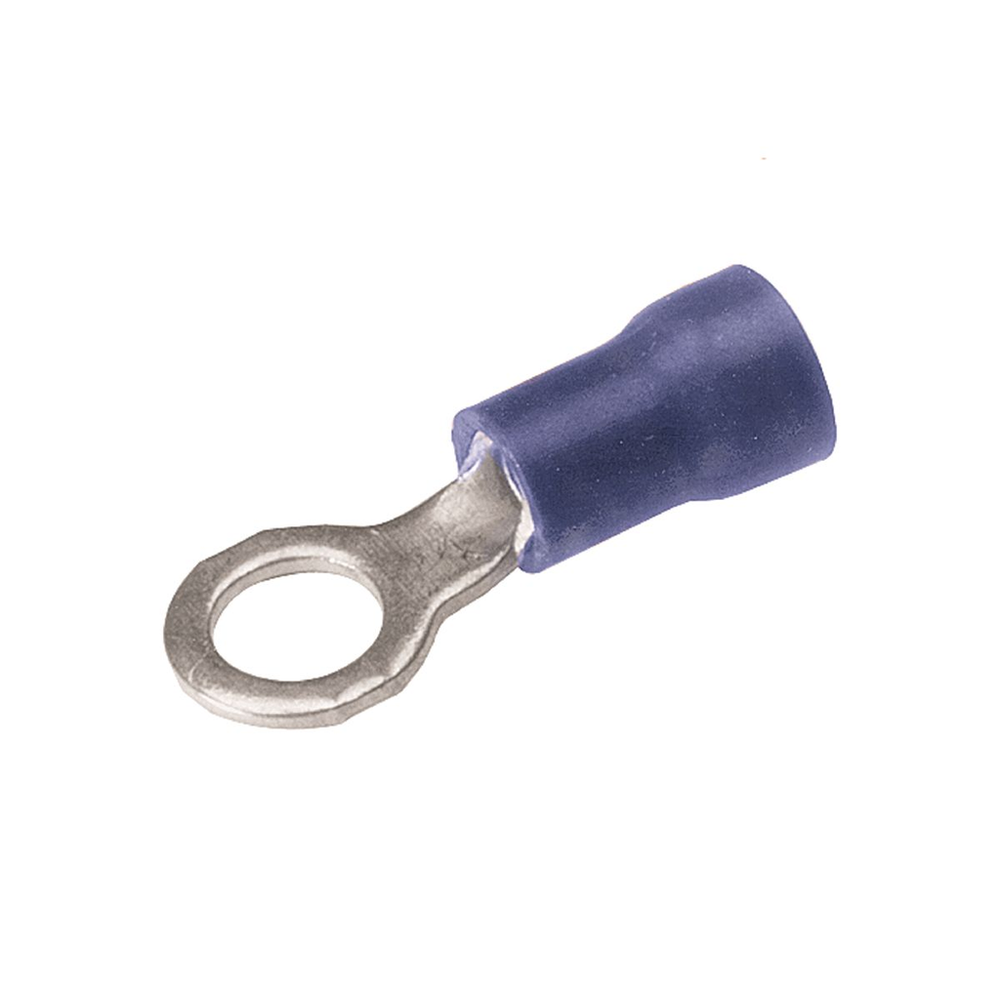

Burndy TP1410

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Commercial And Light Duty Industrial Control And Power Circuit Applications
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.180 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 1200
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810712849
• Carton - Total Units
  • 1200 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810712840
• Case - Total Units
  • 1200 EA
• Certification Agency
  • Proposition 65
• ChannelSightWidgetId
  • 705
• Class Code
  • B57
• Color Code
  • Blue
• Conductor Range
  • #16 AWG to #14 AWG
• Conductor Size
  • 16 - 14 AWG
• Conductor Type
  • CU C Solid-Size;CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING16- 14AWG VINYL
• Dimension - B Length fraction
  • 13/50 in
• Dimension - B Length inch
  • 0.26 in
• Dimension - Bolt Size fraction
  • #10
• Dimension - Diameter Max Size inch
  • 0.19 in
• Dimension - Hole Size fraction
  • 1/5
• Dimension - Hole Size inch
  • 0.20 in
• Dimension - Length Overall inch
  • 0.91 in
• Dimension - L Length Overall mm
  • 23 mm
• Dimension - Pad Width inch
  • 0.31 in
• Dimension - Strip Length inch
  • 13/64 in
• Dimension - Stud Size inch
  • #10
• Dimension - Z inch
  • 0.26 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.31 in
• Feature - Barrel Style
  • Shrouded
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Insulation
  • Y
• Insulation Type
  • Vinyl
• Lead Time
  • 10 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 100 EA
• Package - Gross Weight per Pack
  • 0.2 lb.
• Package - GTIN - Package
  • 30781810712840
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 100
• Package - Pack Description
  • Package
• Package Quantity
  • 100 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810712849
• Package - Total Units
  • 100 EA
• Package Weight
  • 0.2 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810712848
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 623.400 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: Expanded Insulation Support Accepts Standard And Large Wire Diameters, Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry, Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper, Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel, Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated, Provides Durable Long-Lasting Corrosion Resistance, VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications. Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600V Makes TP Terminals Versatile And Economical, Wire Strip Length: 13/64 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Plier Type: Y10-22, Y10D Or Ratchet Tool: MR8-89-1, MR15, MR8-G96, TFM Tool With DFM2D-1 Die, Wire Insulation Grip: No, Temperature Rating: 105 DEG C Maximum, Die Index: Hand Tools Element A
• Standard
  • UL467
• Standard Package Quantity
  • 100
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • VINYLUG
• Sub Class Code
  • B57BKJF
• Trade Name
  • VINYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.31 in
