Burndy TP108Z
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

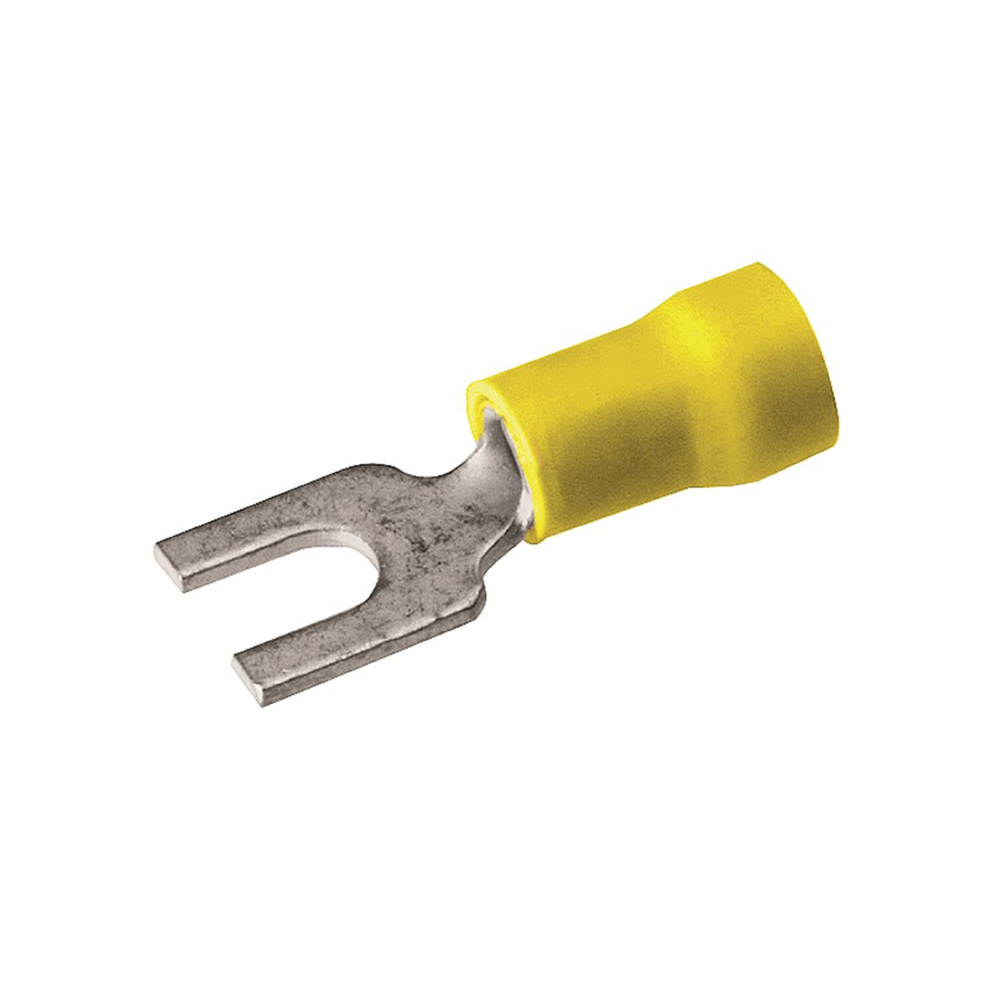

Vinyl Flanged Fork Terminal For 12 - 10 AWG.Vinyl Flanged Fork Terminal For 12 - 10 AWG
Burndy TP108Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Fast Installation And Security
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Cable Insulation Diameter Maximum
- 0.260 in
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 600
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810710760
- Carton - Total Units
- 600 EA
- Case - Number of Sub Packs
- 12
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810710761
- Case - Total Units
- 600 EA
- Certification Agency
- Proposition 65
- Class Code
- B57
- Color Code
- Yellow
- Conductor Range
- #12 AWG to #10 AWG
- Conductor Size
- 12 - 10 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Flanged Fork Terminal
- Country of Origin
- US
- Description - Invoice
- FLANG FK-12-10 AWG-VYL,1.01 IN L
- Dimension - Bolt Size fraction
- #8
- Dimension - Hole Size fraction
- 8/47
- Dimension - Hole Size inch
- 0.17 in
- Dimension - Length Overall inch
- 1.01 in
- Dimension - L Length Overall mm
- 26 mm
- Dimension - Pad Width inch
- 0.31 in
- Dimension - Strip Length inch
- 11/32 in
- Dimension - Stud Size inch
- #8
- Dimension - Z inch
- 0.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.31 in
- Feature - Barrel Style
- Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 0.2 lb.
- Package - GTIN - Package
- 30781810710761
- Package Height
- 4.25 in
- Package Length
- 2.06 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810710760
- Package - Total Units
- 50 EA
- Package Weight
- 0.2 lb.
- Package Width
- 2.06 in
- Pallet - GTIN - Package
- 70781810710769
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 620.040 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Flanged Fork
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: VINYLUG Type TP-Z Is A Variation Of The Type TP And Employs A Flanged Fork Tongue For Fast Installation And Security, 600 V Maximum, 105 DEG C Maximum, Flange Fork Tongue Design: Allows Fast Installation-Screw Only Has To Be Loosened For Termination, The Flanges On The End Of The Fork Terminal Aid In Preventing A Slightly Loose Terminal From Becoming Fully Disconnected From The Screw, Flanges Make Re-Securing A Loose Terminal Easier, Tape Mounted Catalog Number: BA10EZ8M, Insulation Diameter (maximum): 0.26 IN, Bulk Catalog Number: BA10EZ8, Installation Tool: MR15, M8ND Tool With N10ET-23 Die, Wire Insulation Grip: No, Color Code: Yellow, Temperature Rating: 105 DEG C Maximum, Finish: Electro-Tin Plated
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- VINYLUG
- Sub Class Code
- B57BKMF
- Trade Name
- VINYLUG™
- Type
- Flange Fork
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.31 in
