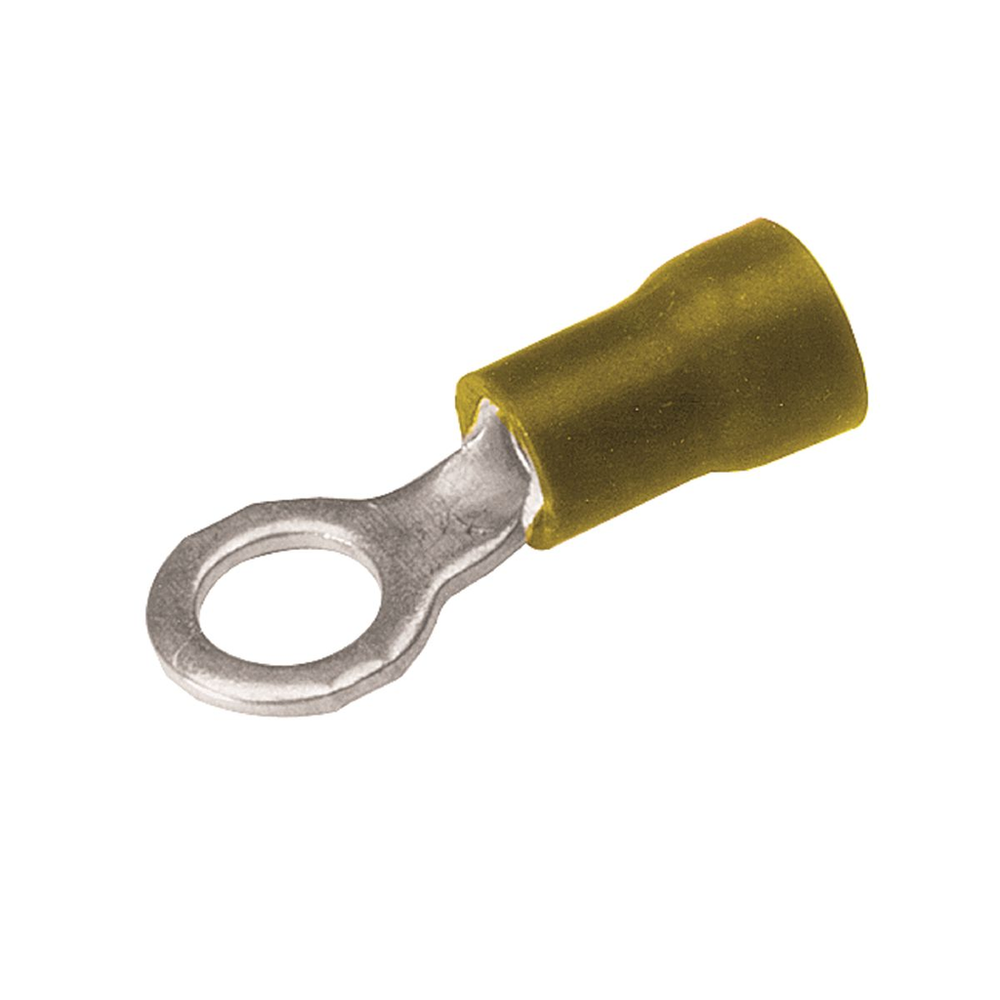

Burndy TP106

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Commercial And Light Duty Industrial Control And Power Circuit Applications
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.260 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 600
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810710449
• Carton - Total Units
  • 600 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810710440
• Case - Total Units
  • 600 EA
• Certification Agency
  • Proposition 65
• ChannelSightWidgetId
  • 705
• Class Code
  • B57
• Color Code
  • Yellow
• Conductor Range
  • #12 AWG to #10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Str-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING-12- 10 AWG- VINYL,0.676 IN L
• Dimension - B Length fraction
  • 17/50 in
• Dimension - B Length inch
  • 0.34 in
• Dimension - Bolt Size fraction
  • #6
• Dimension - Diameter Max Size inch
  • 0.28 in
• Dimension - Hole Size fraction
  • 7/50
• Dimension - Hole Size inch
  • 0.14 in
• Dimension - Length Overall inch
  • 0.95 in
• Dimension - L Length Overall mm
  • 24 mm
• Dimension - Pad Width inch
  • 0.31 in
• Dimension - Strip Length inch
  • 19/64 in
• Dimension - Stud Size inch
  • #6
• Dimension - Z inch
  • 0.20 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.31 in
• Feature - Barrel Style
  • Shrouded
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Insulation
  • Y
• Insulation Type
  • Vinyl
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 50 EA
• Package - Gross Weight per Pack
  • 0.2 lb.
• Package - GTIN - Package
  • 30781810710440
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810710449
• Package - Total Units
  • 50 EA
• Package Weight
  • 0.2 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810710448
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 620.040 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin
• Product Type
  • TERMINAL
• Special Features
  • Features: VINYLUG Type TP Is Designed For Commercial And Light Duty Industrial Control And Power Circuit Applications, Supplied With An Expanded Polyvinyl Chloride (PVC) Insulation Shroud, Many Tongue Variations And Rated 600 V Makes TP Terminals Versatile And Economical, 105 DEG C Maximum, Expanded Insulation Support Accepts Standard And Large Wire Diameters: Lowers Inventory Requirements, Permits Greater Flexibility And Provides Insulation Support, Funnel Entry: Easy Wire Insertion, Manufactured Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Deep V Groove Serrations In The Inner Barrel: Provides Added Holding Strength And Better Conductivity, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Temperature Rating: 105 DEG C Maximum, Bulk Catalog Number: BA10E6, Tape Mounted Catalog Number: BA10E6M, Insulation Diameter (maximum): 0.26 IN, Installation Tool: Plier Type: Y10D, Y10-22 Tool, Ratchet: MR8-89-1, MR15, M8ND Tool With N10HET-23 Die, Color Code: Yellow, Wire Strip Length: 19/64 IN, Finish: Electro-Tin Plated, Wire Insulation Grip: No
• Standard
  • UL467
• Standard Package Quantity
  • 50
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • VINYLUG
• Sub Class Code
  • B57BKJF
• Trade Name
  • VINYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Voltage - Maximum
  • 600 V
• Width
  • 0.31 in
