Burndy TP10516
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

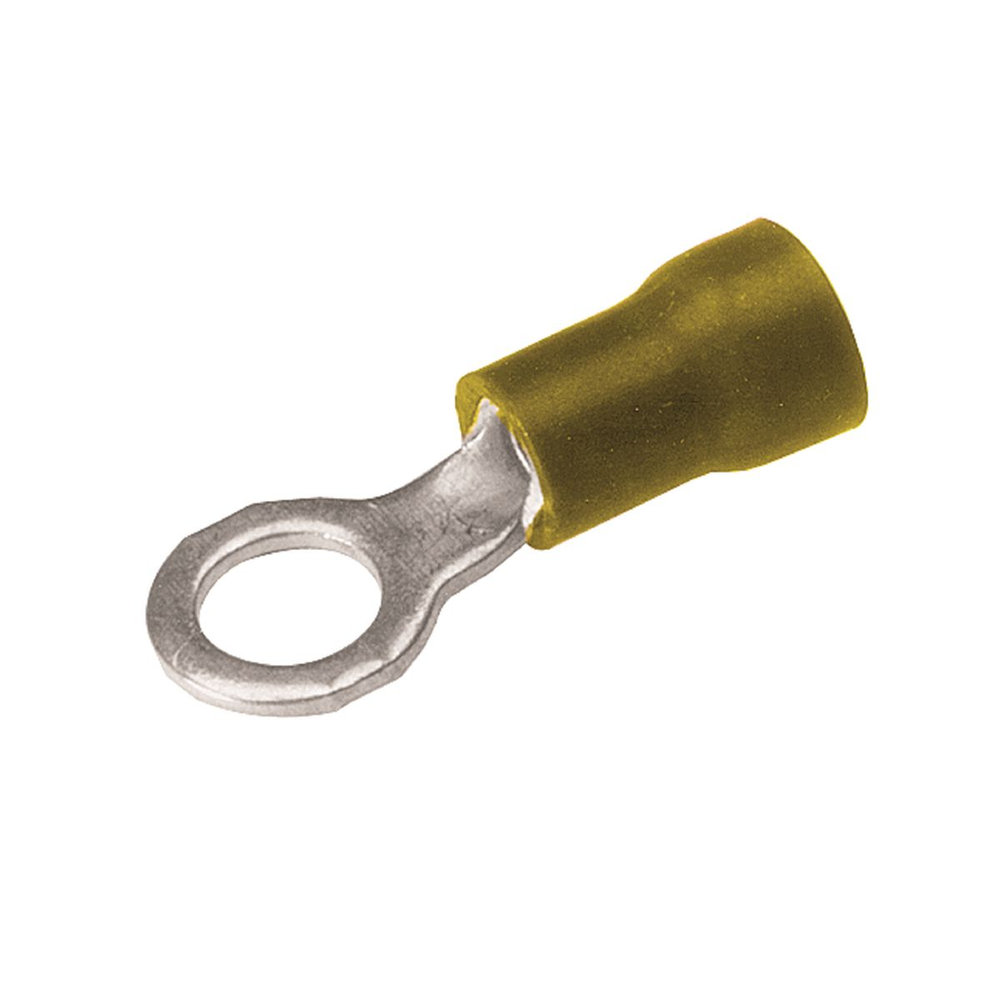

Copper Terminal, Ring Tongue, 12-10 AWG, 5/16" Stud, Vinyl Insulated, Tin Plated.Copper Terminal, Ring Tongue, 12-10 AWG, 5/16" Stud, Vinyl Insulated, Tin Plated
Burndy TP10516 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- for commercial and light duty industrial controland power circuit applications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Cable Insulation Diameter Maximum
- 0.260 in
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 600
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810102893
- Carton - Total Units
- 600 EA
- Case - Number of Sub Packs
- 12
- Case - Pack Description
- Case (ISO code = 'CA' for HEP)
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810102894
- Case - Total Units
- 600 EA
- Certification Agency
- Proposition 65
- ChannelSightWidgetId
- 705
- Class Code
- B57
- Conductor Range
- #12 AWG to #10 AWG
- Conductor Size
- 12 - 10 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Ring Terminal
- Country of Origin
- US
- Description - Invoice
- RING-12- 10 AWG- VINYL,12-10 AWG
- Dimension - B Length fraction
- 17/50 in
- Dimension - B Length inch
- 0.34 in
- Dimension - Bolt Size fraction
- 5/16
- Dimension - Diameter Max Size inch
- 0.28 in
- Dimension - Hole Size fraction
- 1/3
- Dimension - Hole Size inch
- 0.33 in
- Dimension - Length Overall inch
- 1.26 in
- Dimension - L Length Overall mm
- 32 mm
- Dimension - Pad Width inch
- 0.53 in
- Dimension - Strip Length inch
- 19/64 in
- Dimension - Stud Size inch
- 5/16 in
- Dimension - Z inch
- 0.42 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.53 in
- Feature - Barrel Style
- Shrouded
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 50 EA
- Package - Gross Weight per Pack
- 0.25 lb.
- Package - GTIN - Package
- 30781810102894
- Package Height
- 4.25 in
- Package Length
- 2.06 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810102893
- Package - Total Units
- 50 EA
- Package Weight
- 0.25 lb.
- Package Width
- 2.06 in
- Pallet - GTIN - Package
- 70781810102892
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 763.800 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Expanded insulation support accepts standard and large wire diameters
- Standard
- UL467
- Standard Package Quantity
- 50
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- COMPRESSION TERMINAL, VINYLUG
- Sub Class Code
- B57BKJF
- Trade Name
- VINYLUG™
- Type
- Ring Tongue
- UL Listed
- Yes
- Voltage - Maximum
- 600 V
- Width
- 0.53 in
