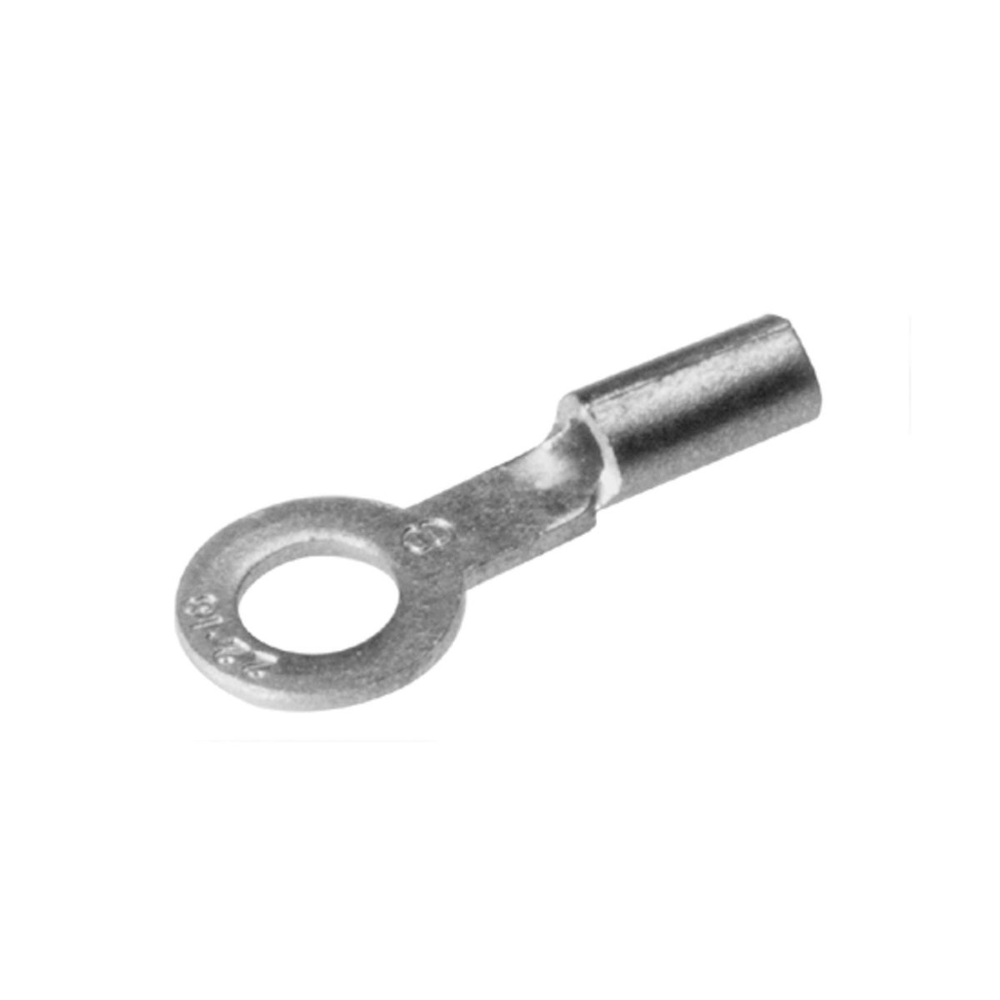

Burndy T1014

Certifications

• CSA Approved
  • Yes
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Control Wiring And Other Standard Duty Applications
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 0.000x0.000x0.000 (in)
• Buy American Compliant
  • Yes
• Cable Insulation Diameter Maximum
  • 0.120 in
• Carton - Gross Weight per Pack
  • 0.000 lb.
• Carton - Number of Sub Packs
  • 600
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810722121
• Carton - Total Units
  • 600 EA
• Case - Number of Sub Packs
  • 12
• Case - Pack Description
  • Case (ISO code = 'CA' for HEP)
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810722122
• Case - Total Units
  • 600 EA
• Certification Agency
  • Proposition 65
• ChannelSightWidgetId
  • 705
• Class Code
  • B57
• Conductor - Copper Solid Size
  • 12 AWG;11 AWG;10 AWG
• Conductor - Copper Solid Size Range
  • 12 AWG-10 AWG
• Conductor - Copper Str Size
  • 12 AWG;10 AWG
• Conductor - Copper Str Size Range
  • 12 AWG-10 AWG
• Conductor Size
  • 12 - 10 AWG
• Conductor Type
  • CU C Str-Size;CU C Solid-Size
• Connector Type
  • Ring Terminal
• Country of Origin
  • US
• Description - Invoice
  • RING-12- 10 AWG-UNIN,Stud Hole:0.27 IN
• Dimension - B Length fraction
  • 17/50 in
• Dimension - B Length inch
  • 0.34 in
• Dimension - Bolt Size fraction
  • 1/4
• Dimension - Diameter Max Size inch
  • 0.12 in
• Dimension - Hole Size fraction
  • 10/37
• Dimension - Hole Size inch
  • 0.27 in
• Dimension - Length Overall inch
  • 0.97 in
• Dimension - L Length Overall mm
  • 25 mm
• Dimension - Pad Width inch
  • 0.46 in
• Dimension - Strip Length inch
  • 11/32
• Dimension - Stud Size inch
  • 1/4
• Dimension - Z inch
  • 0.39 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 0.46 in
• Feature - Barrel Type
  • Long
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908020
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • No
• Order Multiple
  • 50 EA
• Package - Gross Weight per Pack
  • 0.2 lb.
• Package - GTIN - Package
  • 30781810722122
• Package Height
  • 4.25 in
• Package Length
  • 2.06 in
• Package - Number of Sub Packs
  • 50
• Package - Pack Description
  • Package
• Package Quantity
  • 50 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810722121
• Package - Total Units
  • 50 EA
• Package Weight
  • 0.2 lb.
• Package Width
  • 2.06 in
• Pallet - GTIN - Package
  • 70781810722120
• Pallet Height
  • 44.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 620.040 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Holes
  • 1
• Physical Attribute - Tongue Type
  • Ring
• Plated
  • Y
• Plating Type
  • Tin - Electro Plated
• Product Type
  • TERMINAL
• Special Features
  • Features: The Type T Uninsulated Terminals Are Constructed Of Pure Electrolytic Copper, Designed With A Long Brazed Seam Barrel, Standard Neck, Deep V Groove Inner Serrations And Electro-Tin Plated, The Terminals Are Ideal For Control Wiring And Other Standard Duty Applications, The Ring Tongue Provides A Secure Termination Under The Screw Head That Cannot Be Removed Without The Complete Removal Of The Screw, Two Or More Terminals Can Easily Be Stacked On A Common Stud, Constructed Of Pure Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Long Brazed Seam Barrel And Deep V Groove Inner Serrations: Provides Optimum Conductivity Reliability And Holding Power After Crimping, Electro-Tin Plated: Provides Durable Long-Lasting Corrosion Resistance, Wire Range Is Clearly Marked On Terminal: Provides Easy Identification, Inspection Hole: Provides An Easy Visual Check Of Wire Insertion, Long Neck Terminal: Permits Easy Bending And Stacking Of Several Terminals On A Common Stud, Tape Mounted Catalog Number: YAD10-14M, Bulk Catalog Number: YAD10-14, Wire Insulation Grip: No, Wire Strip Length: 11/32 IN, Finish: Electro-Tin Plated, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98 Tool
• Standard
  • UL467
• Standard Package Quantity
  • 50
• Standards - Industry Standards Met
  • UL486
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • HYLUG
• Sub Class Code
  • B57BK6F
• Trade Name
  • HYLUG™
• Type
  • Ring Tongue
• UL Listed
  • Yes
• Width
  • 0.46 in
