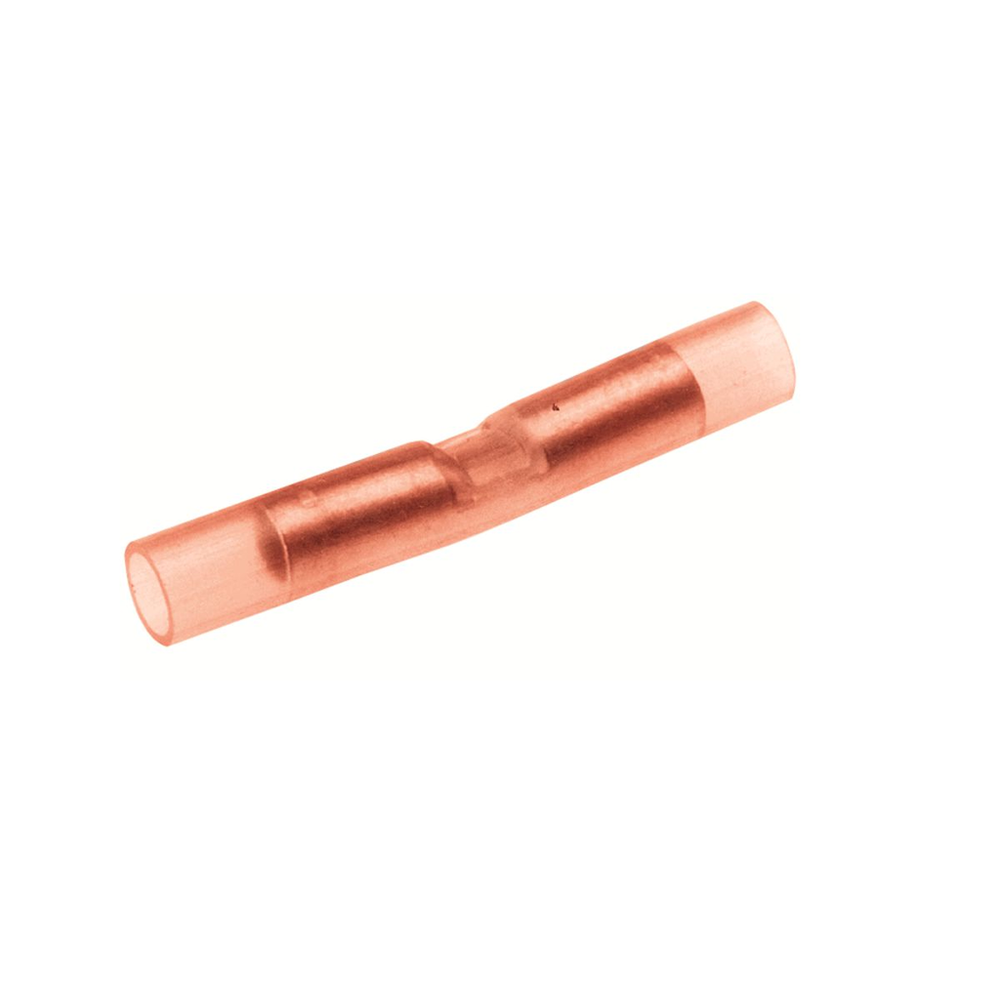

Burndy SN18B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Nylon Splice For 22 - 18 AWG.Nylon Splice For 22 - 18 AWG
Burndy SN18B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Heavy Duty Application Requirements
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810525104
- Carton - Total Units
- 100 EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810525105
- Class Code
- B57
- Color Code
- Red
- Conductor - Copper Str Size Range
- 22 - 18 AWG
- Conductor Size
- 22 - 18 AWG
- Connector Type
- Brazed Seam Butt Splice
- Country of Origin
- US
- Description - Invoice
- 22-18 N/I Butt Connector
- Dimension - Length Overall inch
- 1.25 in
- Dimension - L Length Overall mm
- 32 mm
- Dimension - Outside Diameter inch
- 0.12 in
- Dimension - Strip Length inch
- 15/64 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.12 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL467
- Insulation
- Y
- Insulation Type
- Nylon
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 0.2 lb.
- Package - GTIN - Package
- 30781810525105
- Package Height
- 4.00 in
- Package Length
- 3.00 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810525104
- Package - Total Units
- 100 EA
- Package Weight
- 0.2 lb.
- Package Width
- 3.00 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- SPLICE
- Special Features
- Features: Manufactured From One-Piece Tin-Plated Seamless Copper Tubing With An Integral Barrel/Insulation Grip: Provides Maximum Tensile Strength, Plus Excellent Cable Support And Strain Relief And Eliminates Failures Due To Vibration, Smooth Funnel Entry: Provides Easy Wire Insertion, Window Position Locator For Full Cycle Ratchet Tool Crimp: Provides Proper Tool/Connector Alignment For Correct Crimp, Nylon Insulation Offers High Dielectric Strength And Stability In Oily Enviromental Conditions: Maintains A High Quality Connection In Demanding Applications, The Nylon Is Locked Into Position: The Connector Will Not Move
- Standard
- UL467
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- INSULINK
- Sub Class Code
- B57BL8F
- Trade Name
- INSULINK™
- Type
- SN
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 0.12 in
