Burndy RYA28UCR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Force Fit Rubber Sleeve Tap Kit, 4/0 Str(Al/Cu), 4/0 Str-250 Comp(Al), 249 or 840 Index.Force Fit Rubber Sleeve Tap Kit, 4/0 Str(Al/Cu), 4/0 Str-250 Comp(Al), 249 or 840 Index
Burndy RYA28UCR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- FOR ALUMINUM OR COPPER FOR USE WITH TYPE RDM-28 URD MOLE
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.700 lb.
- Carton - Number of Sub Packs
- 9
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810181959
- Carton - Total Units
- 9
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810181950
- Certification Agency
- Proposition 65
- Class Code
- B35
- Conductor - AL Str Size
- 4/0 AWG;250 kcmil
- Conductor - AL Str Size Range
- 4/0 AWG-250 kcmil
- Conductor - Copper Str Size
- 4/0 AWG
- Conductor - Copper Str Size Range
- 4/0 AWG
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 4/0 FORCE FIT TAP KIT
- Die Index
- 249;K-840
- Dimension - B Length inch
- 1.62 in
- Dimension - D inch
- 0.91 in
- Dimension - Length Overall inch
- 2.74 in
- Dimension - Pad Width inch
- 0.91 in
- Dimension - Strip Length inch
- 1-11/16
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.91 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Rubber
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 2.7 lb.
- Package - GTIN - Package
- 30781810181950
- Package Height
- 4.25 in
- Package Length
- 9.00 in
- Package - Number of Sub Packs
- 9
- Package - Pack Description
- Package
- Package Quantity
- 9 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810181959
- Package - Total Units
- 9 EA
- Package Weight
- 2.7 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810181958
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 693.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 1
- Physical Attribute - Number of Holes
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features

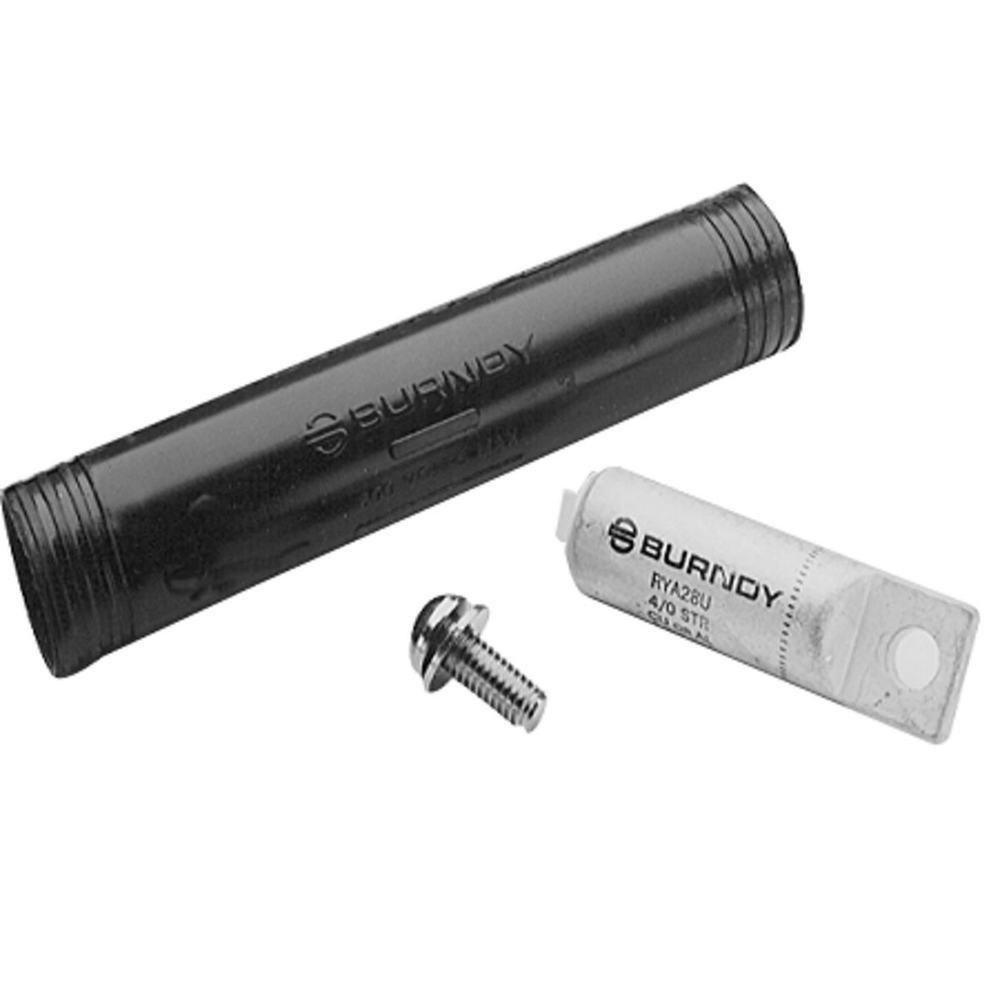

- Features: The Kit Consists Of: Universal HYLUG, Mounting Hardware And Pre-Lubricated Forcefit Rubber Sleeve, The HYLUG Is Pre-Filled With PENETROX Joint Compound And Sealed, Installed With Common Installation Tools, Three Die Sets Install A Range Of 4 AWG Stranded - 350 MCM, The Rubber Sleeve Has Internal Sealing Rings That Provide A Positive Moisture Seal By Exerting Circumferential Force On Cable And MOLE Insulation, Pre-Lubricating Sleeve Makes Installation Easier, REA Listed, No Trimming Required, Tools, Die Set Catalog Number, And (number Of Crimps): MD6 Series Tool, W249 Die, (4), WK840 Die, (7), Y39, Y35, Y750 Series Tool, U249 Die, (2) Overlap Crimps, UK840T Die, (4), OUR840 Tool, X249 Die, (8), X840 Die, (7), Eei Die Index: 11A, Die Index: 249 Or 840
- Standard Package Quantity
- 9
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- TAP KITS, MOLE
- Sub Class Code
- B35B92F
- Trade Name
- MOLE™
- Type
- RYA-UCR
- UL Listed
- No
- Width
- 0.91 in
