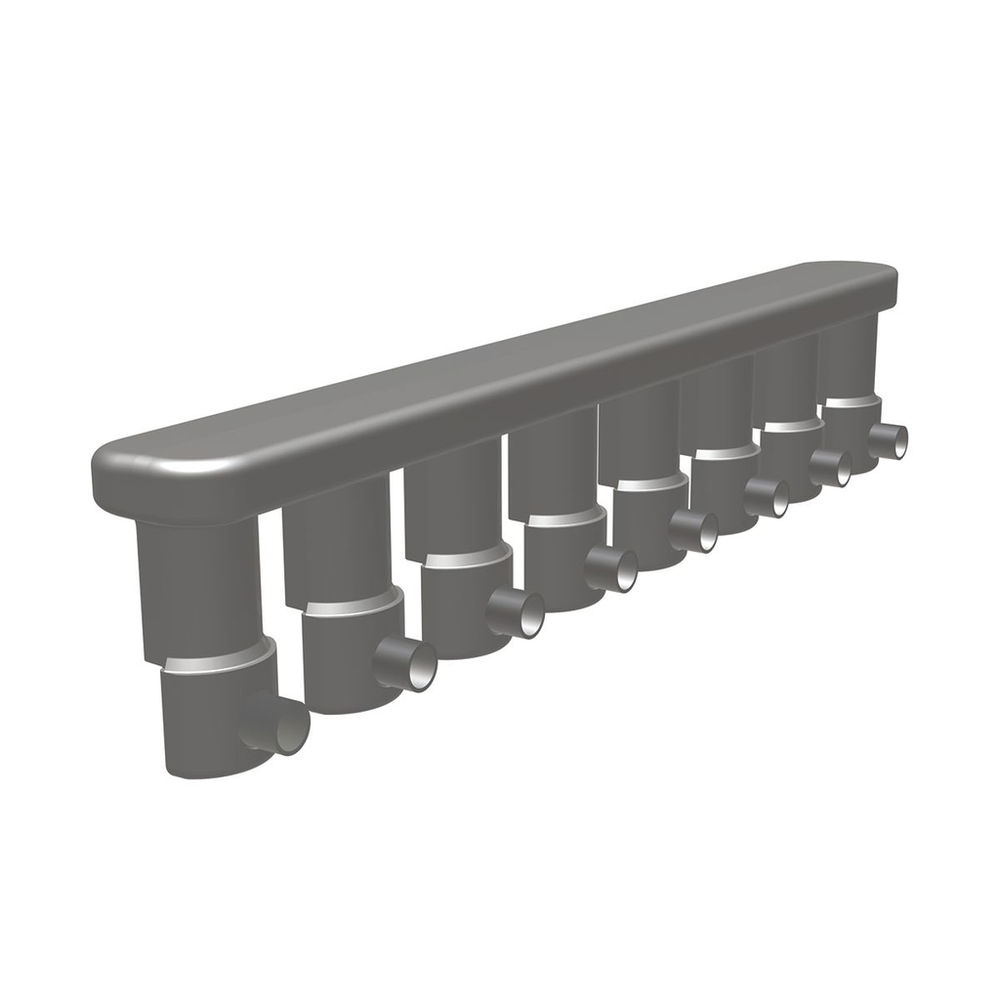

Burndy RDM628
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
URD Mole, #4 Str. - 250 kcmil Al or Cu 300 kcmil - 350 kcmil , 600 Volt Rating, 8.78 in L.URD Mole, #4 Str. - 250 kcmil Al or Cu 300 kcmil - 350 kcmil, 600 Volt Rating, 8.78 in L
Burndy RDM628 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aluminum And Copper And Direct Burial Or For Use In Enclosures
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810180051
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810180052
- Certification Agency
- Proposition 65
- Class Code
- B36
- Conductor - AL Str Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
- Conductor - AL Str Size Range
- 4 AWG-350 kcmil
- Conductor - Copper Str Size
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 4 AWG-250 kcmil
- Connector Type
- Tap
- Country of Origin
- MX
- Description - Invoice
- 6 POS AL/CU URD MOLE 1H
- Dimension - Length Overall inch
- 8.78 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.94 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Rubber
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum Alloy
- MSDS Flag
- No
- Number Of Outlets
- 6
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 19.104 lb.
- Package - GTIN - Package
- 30781810180052
- Package Height
- 12.6 in
- Package Length
- 6.70 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810180051
- Package - Total Units
- 12 EA
- Package Weight
- 19.104 lb.
- Package Width
- 12.6 in
- Product Type
- Mechanical
- Special Features
- Features: Type RDM-28 MOLE Is An Economical, Insulated, Submersible Service Junction Suitable For Direct Burial Or For Use In Enclosures, Disconnectable Joints Allow Additions Of New Services Without Disturbing Previous Installations, Taping Is Eliminated, Heat-Shrink Or Force-Fit Rubber Sleeves Insulate Each Joint, Rubber Is Used To Insulate The MOLE Body, Removable Sealing Covers Are Supplied On All Outlets But Two, REA Listed Tap Kits, Including HYLUG, Hardware And Sleeve Are Ordered Separately, Number Of Outlets: 6
- Standard Package Quantity
- 12
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- URD MOLE
- Sub Class Code
- B36BA5F
- Trade Name
- MOLE™
- Type
- RDM-28
- UL Listed
- No
- Width
- 2.94 in
