Description

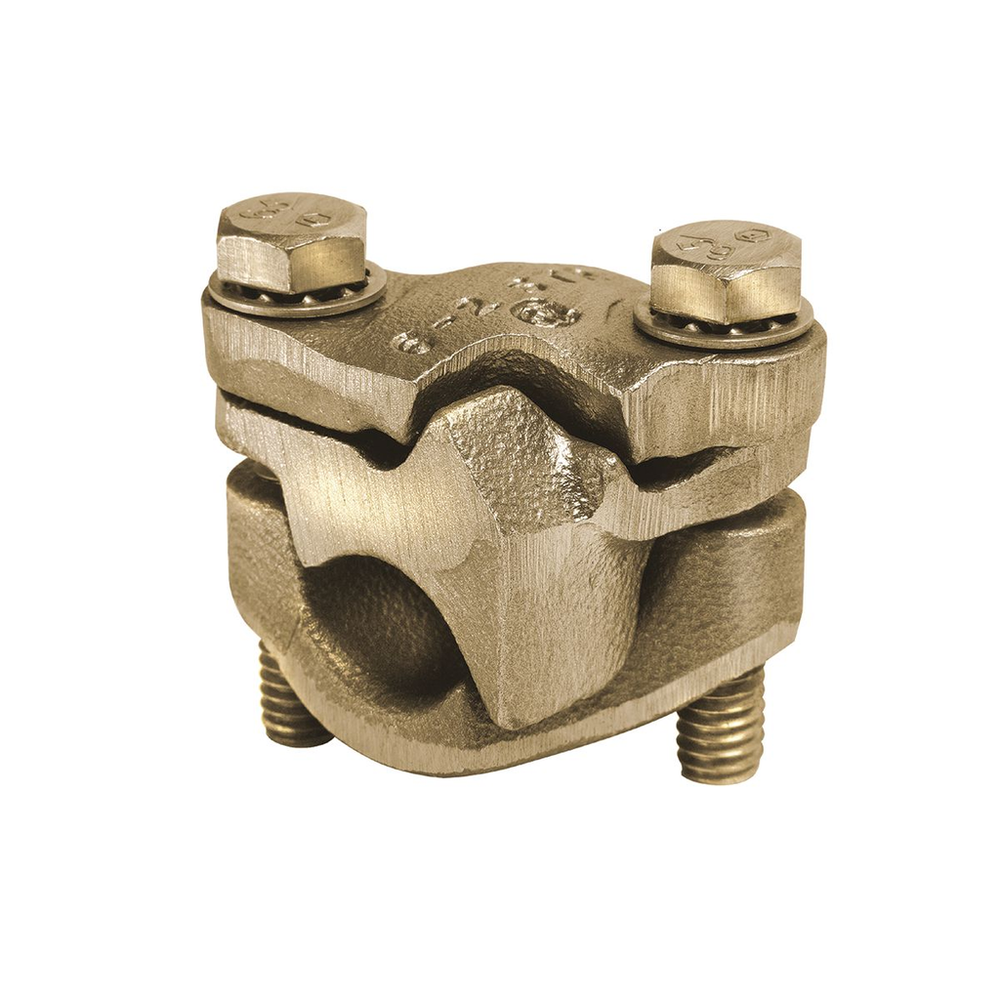

VERSITAP™ Mechanical Parallel Clamp for Copper and Aluminum; Run: 250 - 500 kmcil; Tap: #6 - #2 Str.VERSITAP™ Mechanical Parallel Clamp for Copper and Aluminum
Burndy QPX342CY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810342701
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810342702
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Run
- 250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil
- Conductor - AL Str Run Range
- 250 kcmil-500 kcmil
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Tap Range
- 6 AWG-2 AWG
- Conductor - Copper Str Run
- 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 250 kcmil-500 kcmil
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-2 AWG
- Conductor Type
- AL C Str-Run;CU C Str-Run;AL C Str-Tap;CU C Str-Tap
- Connector Type
- Universal Clamp
- Country of Origin
- US
- Description - Slang
- VERSITAP QPX
- Dimension - Height fraction
- 2-1/4 in
- Dimension - Height inch
- 2.19
- Dimension - Length Overall inch
- 1.50 in
- Dimension - L Length Overall mm
- 38 mm
- Dimension - Width fraction
- 2-1/8 in
- Dimension - Width inch
- 2.14
- Dimension - Width mm
- 54 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 375 LBS/in
- Lead Time
- 12 wk
- Material
- Copper
- Material - Hardware
- DURIUM™ Silicon Bronze
- Package - GTIN - Package
- 30781810342702
- Package Quantity
- 9 EA
- Package - Total Units
- 9 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- Y
- Plating Type
- Tin
- Product Type
- RUN/TAP
- Rating - Minimum Voltage
- 600
- Standard Package Quantity
- 9
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B51BGAF
- Temperature Rating
- 194
- Trade Name
- VERSITAP™
- UL Listed
- No
