Description

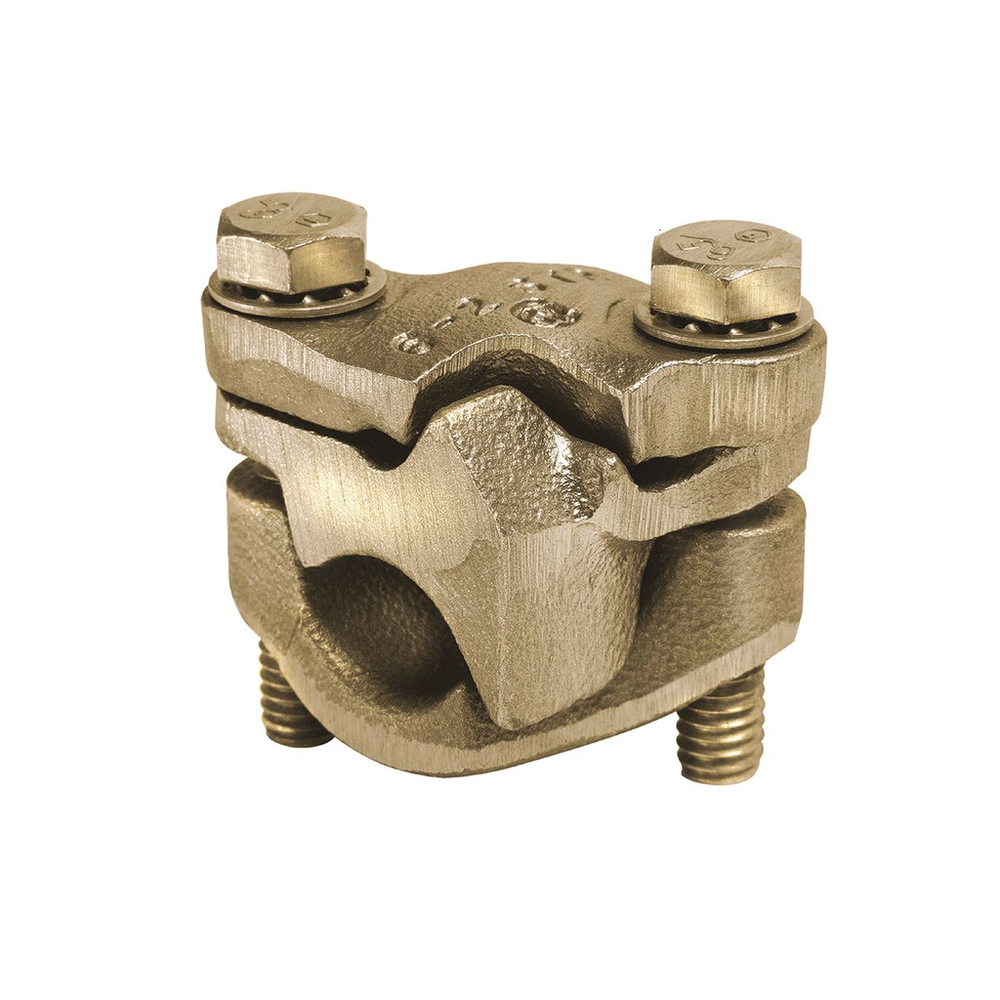

VERSITAP™ Mechanical Parallel Clamp for Copper and Aluminum; Run: #6 - #2 Str; Tap: #6 - #2 Str.VERSITAP™ Mechanical Parallel Clamp for Copper and Aluminum
Burndy QPX2C2CY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
- UL Recognized
- No
Specifications
- Application
- For Use With Copper Or Aluminum Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810341803
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810341804
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - AL Str Run
- 6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Run Range
- 6 AWG-2 AWG
- Conductor - AL Str Tap
- 6 AWG;4 AWG;3 AWG;2 AWG
- Conductor - AL Str Tap Range
- 6 AWG-2 AWG
- Conductor - Copper Str Run
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Run Range
- 6 AWG-2 AWG
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG
- Conductor - Copper Str Tap Range
- 6 AWG-2 AWG
- Conductor Type
- AL C Str-Run;CU C Str-Run;AL C Str-Tap;CU C Str-Tap
- Connector Type
- Universal Clamp
- Country of Origin
- US
- Description - Invoice
- COPPER QIKLUG
- Description - Slang
- VERSITAP QPX
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - B Length inch
- 1.52 in
- Dimension - Height fraction
- 1-5/8 in
- Dimension - Height inch
- 1.59
- Dimension - Length Overall inch
- 1.50 in
- Dimension - L Length Overall mm
- 38 mm
- Dimension - Width fraction
- 1-5/8 in
- Dimension - Width inch
- 1.61
- Dimension - Width mm
- 41 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.61 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 150 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.48 lb.
- Package - GTIN - Package
- 30781810341804
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810341803
- Package - Total Units
- 12 EA
- Package Weight
- 6.48 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Screws
- 2
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- Y
- Plating Type
- Tin
- Product Type
- RUN/TAP
- Rating - Minimum Voltage
- 600
- Special Features
- Features: High Copper Alloy Cast Connector, Tin-Plated For Use With Copper Or Aluminum Cable, Makes Parallel, Tap, Tee, Cross Or End-To-End Connections, Edges Rounded For Easy Taping, PENETROX Joint Compound Recommended, Number Of Bolts: 2, Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded Copper, Installation Torque: 150 IN-LB, Length: 1-1/2 IN, Height: 1-5/8 IN, Width: 1-5/8 IN
- Standard Package Quantity
- 12
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- VERSITAP
- Sub Class Code
- B51BGAF
- Temperature Rating
- 194
- Trade Name
- VERSITAP™
- Type
- QPX-Y, Universal
- UL Listed
- No
- Width
- 1.61 in
