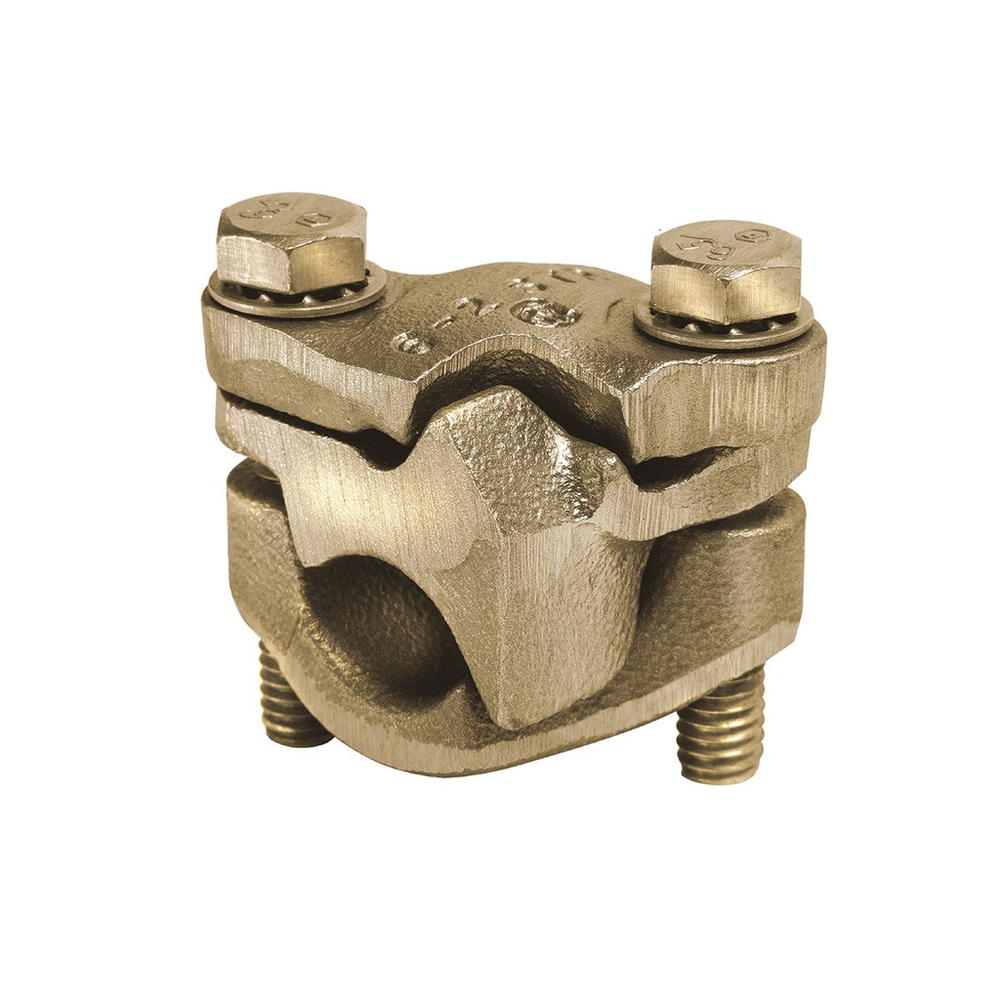

Burndy QPX2828
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
VERSITAP™ Mechanical Parallel Clamp for Copper/Copperweld; Accommodates: Run: #1 - 4/0 AWG; Tap: #1 - 4/0 AWGVERSITAP™ Mechanical Parallel Clamp for Copper/Copperweld
Burndy QPX2828 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- No
Specifications
- Application
- For Tee, Cross, Parallel, Butt And Tap Connections, Copper, Copperweld And Copperweld-Copper
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810342503
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810342504
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Run
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Run Range
- 1 AWG-4/0 AWG
- Conductor - Copper Str Tap
- 1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Str Tap Range
- 1 AWG-4/0 AWG
- Conductor - CopperWeld Solid Run
- 9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
- Conductor - CopperWeld Solid Run Range
- 9 AWG-5 AWG
- Conductor - CopperWeld Solid Tap
- 9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
- Conductor - CopperWeld Solid Tap Range
- 9 AWG-5 AWG
- Conductor - CopperWeld Str Run
- 3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG;1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG;1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG;2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG;3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
- Conductor - CopperWeld Str Run Range
- 3 A AWG-3/0 V AWG
- Conductor - CopperWeld Str Tap
- 3 A AWG;3 J AWG;3 K AWG;3 N AWG;3 P AWG;2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG;1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG;1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG;2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG;3/0 E AWG;3/0 EK AWG;3/0 F AWG;3/0 G AWG;3/0 J AWG;3/0 V AWG
- Conductor - CopperWeld Str Tap Range
- 3 A AWG-3/0 V AWG
- Conductor Type
- CU C Str-Run;CU Weld C Str-Run;CU Weld C Solid-Run;CU C Str-Tap;CU Weld C Str-Tap;CU Weld C Solid-Tap
- Connector Type
- Universal Clamp
- Country of Origin
- MX
- Description - Invoice
- 1STR-4/0 STR, 1STR - 4/0
- Description - Slang
- VERSITAP QPX
- Dimension - Height fraction
- 2-3/8
- Dimension - Height inch
- 2.38 in
- Dimension - Length Overall inch
- 1.81 in
- Dimension - L Length Overall mm
- 46 mm
- Dimension - Width fraction
- 1-13/16 in
- Dimension - Width inch
- 1.81 in
- Dimension - Width mm
- 46 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.81 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486C
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.08 lb.
- Package - GTIN - Package
- 30781810342504
- Package Height
- 4.563 in
- Package Length
- 3.313 in
- Package - Number of Sub Packs
- 8
- Package - Pack Description
- Package
- Package Quantity
- 8 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810342503
- Package - Total Units
- 8 EA
- Package Weight
- 6.08 lb.
- Package Width
- 6.5 in
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- RUN/TAP
- Replaced Catalog Number
- QPX2828
- Special Features
- Features: The VERSITAP Type QPX Is Recommended For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking, Only 10 Connectors Required To Accommodate Conductor Sizes From #6 Stranded To 1000 KCMIL, Edges Are Rounded For Easy Taping, Made Of High Strength, High Conductivity Copper Alloy And Silicone Bronze DURIUM Hardware, Conductor Type: Run And Tap: Copperweld - Copper, Copperweld, Commercial Stranded Copper, Stud/bolt Size: 3/8 IN, Length: 1-7/8 IN, Installation Torque: 250 IN-LB, Width: 1-7/8 IN, Height: 2-1/8 IN
- Standard
- UL486C
- Standard Package Quantity
- 8
- Standards - Industry Standards Met
- UL486C
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- VERSITAP
- Sub Class Code
- B51BG9F
- Trade Name
- VERSITAP™
- Type
- QPX
- UL Listed
- Yes
- Width
- 1.81 in
