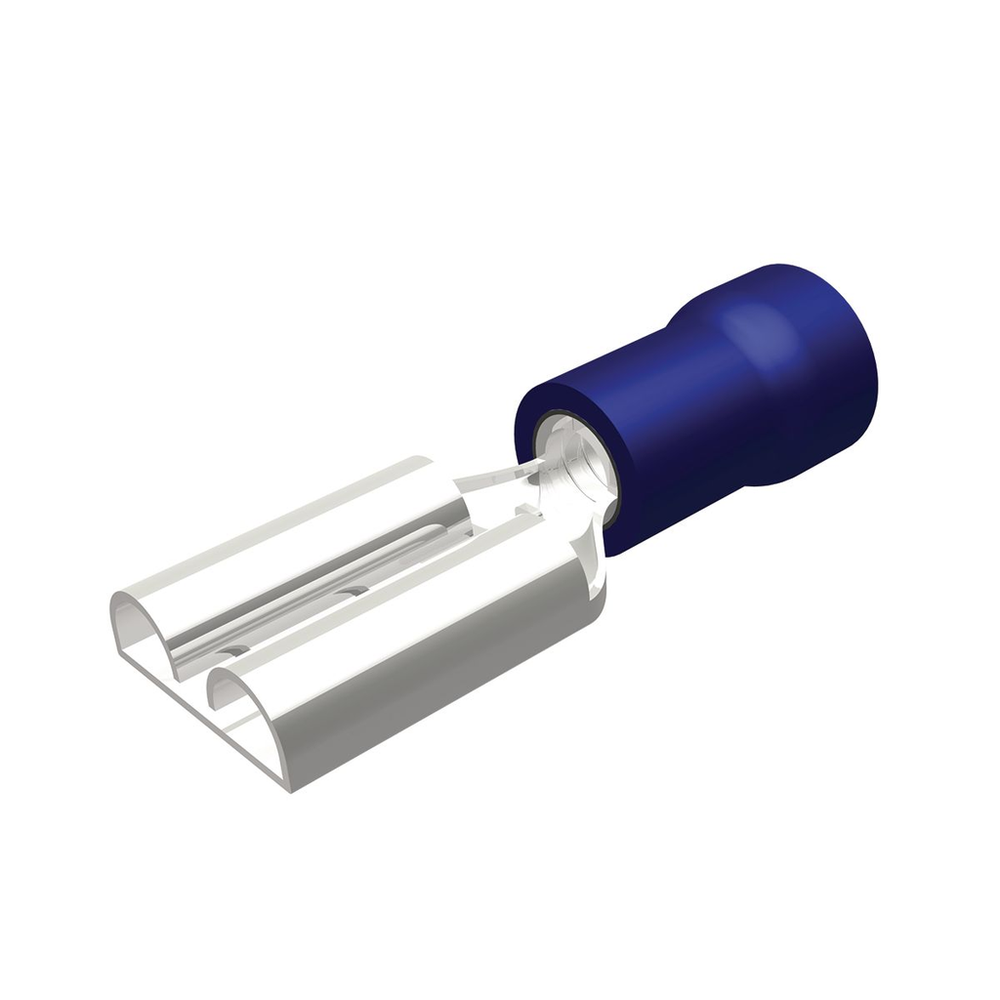

Burndy QP14F25X03B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Vinyl Female Quick Disconnect For 16 - 14 AWG (.25 x .03).Vinyl Female Quick Disconnect For 16 - 14 AWG (.25 x .03)
Burndy QP14F25X03B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- Yes
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For quickly connecting or disconnecting a terminal
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.625x4.313x4.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Number of Sub Packs
- 1000
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810292754
- Carton - Total Units
- 1000
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810292755
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor Range
- #14 AWG to #16 AWG
- Conductor Size
- 16 - 14 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Female Quick Disconnect
- Country of Origin
- TW
- Description - Invoice
- 14-16 FEMALE DISC 250X03
- Dimension - Length Overall inch
- 0.87 in
- Dimension - Strip Length inch
- 3/8 in
- Dimension - Width inch
- 0.25 in
- Dimension - Width mm
- 6 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.29 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Vinyl
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Brass
- MSDS Flag
- No
- Order Multiple
- 1000 EA
- Package - Gross Weight per Pack
- 6 lb.
- Package - GTIN - Package
- 30781810292755
- Package Height
- 4.00 in
- Package Length
- 4.00 in
- Package - Number of Sub Packs
- 1000
- Package - Pack Description
- Package
- Package Quantity
- 1000 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810292754
- Package - Total Units
- 1000 EA
- Package Weight
- 6 lb.
- Package Width
- 4.00 in
- Pallet - GTIN - Package
- 70781810292753
- Pallet Height
- 47.375 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1233.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Features: Butted Seam, Insulated Connectors: Eliminate The Need For Post Installation Insulation, Funnel Entry Barrel Opening: Assures Quick And Easy Wire Insertion, Dimpled Female Socket Detent: Ensures Firm Grip, Mates With Type QP-M Male Disconnects, 600 V Maximum, 105 C Maximum, Installation Tool: Y10D Tool, Size: 0.92 IN Overall Length X 0.2 IN Barrel Length X 0.29 IN Width, Nema Tab Size: 0.25 X 032 IN, Temperature: 105 DEG C Maximum
- Standard Package Quantity
- 1000
- Standards - Industry Standards Met
- UL310
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- FINGRIP
- Sub Class Code
- B57BKQF
- Trade Name
- FINGRIP™
- Type
- Disconnect Connectors
- UL Listed
- No
- Voltage - Maximum
- 600 V
- Width
- 0.29 in
