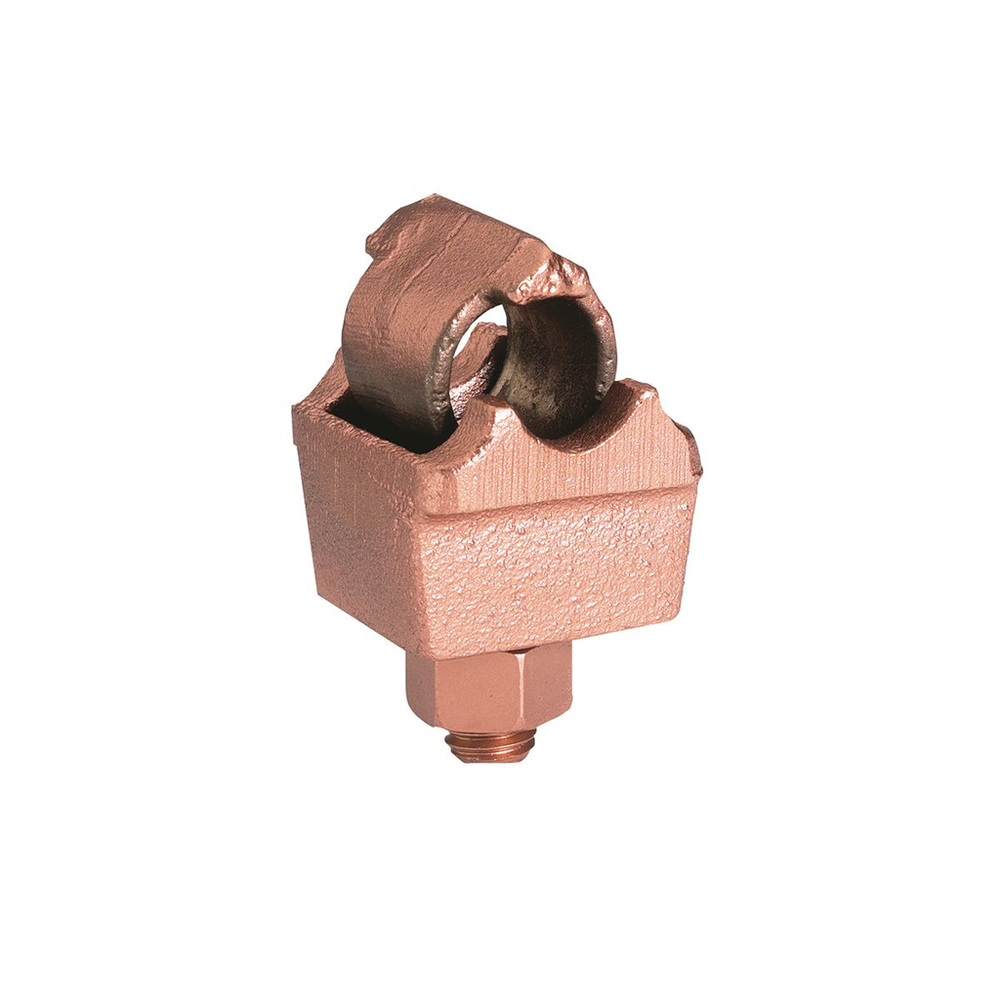

Burndy QGFL26B1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Bartap, Cable to Drilled Bar, 8 AWG (Sol)-2/0 AWG (Str) Cu Cable, 230 kV, Silicon Bronze H/W.Substation Connectors
Burndy QGFL26B1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810325100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810325101
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Copper Solid Size
- 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
- Conductor - Copper Solid Size Range
- 8 AWG-2/0 AWG
- Conductor - Copper Str Size
- #8 Sol;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;#2/0 Str
- Conductor - Copper Str Size Range
- #8 Sol-#2/0 Str
- Conductor Type
- CU C Str-Size;CU C Solid-Size
- Connector Type
- Bus Bar Clamp and Accessories
- Country of Origin
- MX
- Description - Invoice
- 8-2/0 CU TO FLAT, 1.12 IN W
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - B Length inch
- 1.25 in
- Dimension - Height fraction
- 2-1/8 in
- Dimension - Height inch
- 2.13 in
- Dimension - Width fraction
- 1-1/8 in
- Dimension - Width inch
- 1.13 in
- Dimension - Width mm
- 29 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.12 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.75 lb.
- Package - GTIN - Package
- 30781810325101
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810325100
- Package - Total Units
- 25 EA
- Package Weight
- 5.75 lb.
- Package Width
- 4.56 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy BARTAP For Joining A Range Of Cable To Bar Or Pad, One-Wrench Installation, Conductor Clamping Hardware: 3/8 IN, Wire Type: Copper, Installation Torque: 240 IN-LB
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- BARTAP
- Sub Class Code
- B21B0EF
- Trade Name
- BARTAP™
- Type
- QGFL
- UL Listed
- No
- Width
- 1.12 in
