Description

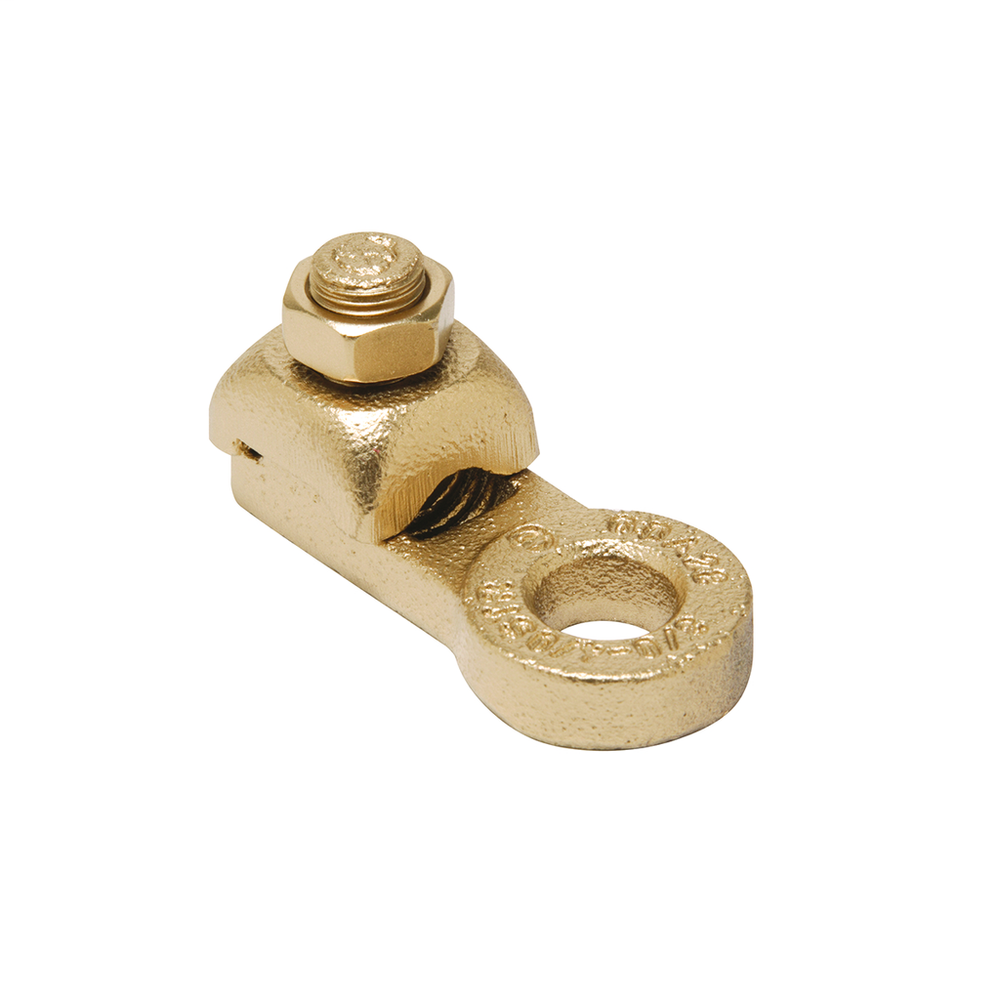

Copper Terminal, 1 Hole, 400-500 kcmil, 3/4" Stud, 1 Screw.QDA34
Burndy QDA34 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Application
- For Joining A Wide Range Of Copper Cable To Equipment Studs
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Conductor - Copper Str Navy Size
- 400 (127) Navy;500 (127) Navy
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy-500 (127) Navy
- Conductor - Copper Str Size
- 400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Size Range
- 400 kcmil-500 kcmil
- Connector Type
- Terminal
- Dimension - Height inch
- 2.00 in
- Dimension - Hole Size fraction
- 13/16
- Dimension - Hole Size inch
- 0.81 in
- Dimension - Hole Size mm
- 21 mm
- Dimension - Length Overall inch
- 3.63 in
- Dimension - L Length Overall mm
- 97 mm
- Dimension - Pad Width inch
- 1.88 in
- Dimension - Stud Size inch
- 3/4
- Dimension - Width inch
- 1.88 in
- Dimension - Width mm
- 48 mm
- Industry Standard(s)
- UL468A-468B
- Installation Torque Recommended in-lb
- 375 LBS/in
- Material
- Copper
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Standards - Industry Standards Met
- UL468A-468B
- Standards - RoHS Compliance Status
- EX
- Sub Brand
- QIKLUG
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- UPC
- 781810325568
