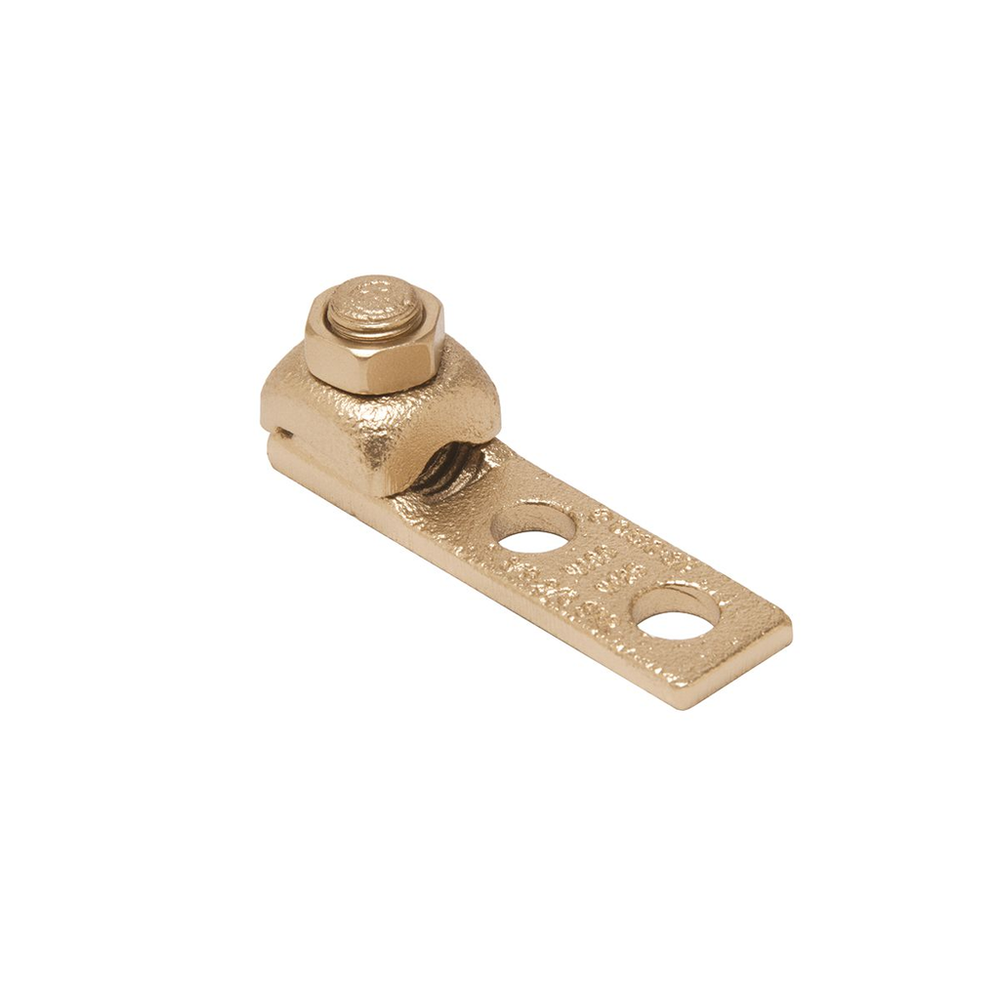

Burndy QB342N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Cu Alloy Terminal, 2 Pad Holes, 400 kcmil - 500 kcmil, 4.69 IN L, 1.38 IN W, 5/8-18 IN Bolt.Cast Cu Alloy Terminal, 2 Pad Holes, 400 kcmil - 500 kcmil, 4.69 IN L, 1.38 IN W, 5/8-18 IN Bolt
Burndy QB342N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810006054
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810006055
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Size
- 400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Size Range
- 400 kcmil-500 kcmil
- Conductor Type
- CU C Str-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Slang
- Mechanical lugs for one or more cables
- Dimension - B Length fraction
- 1-19/50 in
- Dimension - B Length inch
- 1.38 in
- Dimension - D inch
- 3.25 in
- Dimension - Height fraction
- 49
- Dimension - Height inch
- 1.94
- Dimension - Hole Size inch
- 0.56
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.69
- Dimension - L Length Overall mm
- 119 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.38 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810006055
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810006053
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2133.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B51BG3F
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
