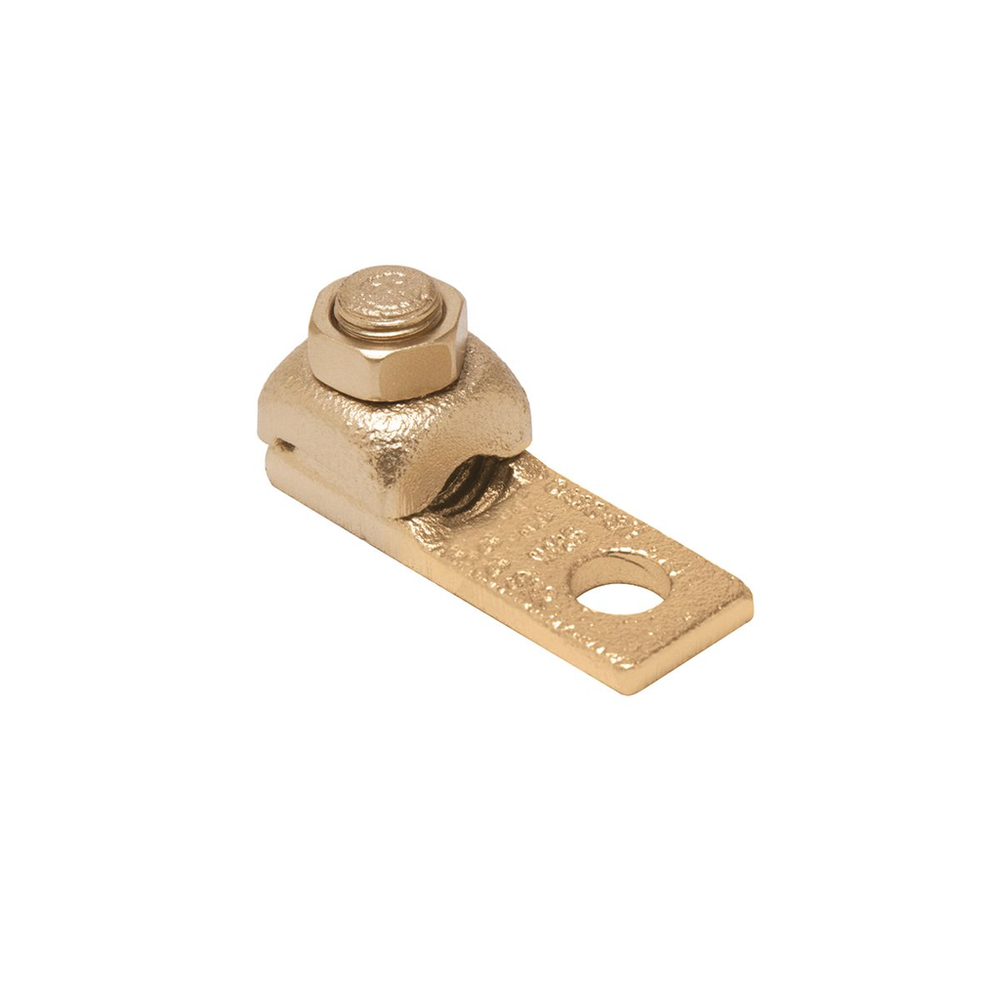

Burndy QB26
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Terminal, Side Entrance, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw.Copper Terminal, Side Entrance, 1 Hole, 1/0-2/0 AWG (Str), 3/8" Stud, 1 Screw
Burndy QB26 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Range Of Copper Cable At Right Angles To Terminal Blocks
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810324288
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810324289
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Size
- 1/0 ;2/0 AWG
- Conductor - Copper Str Size Range
- 1/0 -2/0 AWG
- Conductor Size
- 1/0-20 AWG
- Conductor Type
- CU C Str-Size
- Connector Type
- Right Angle
- Country of Origin
- US
- Description - Invoice
- 1/0 STR - 2/0 STR 90 DEG
- Description - Slang
- Mechanical lugs for one or more cables
- Dimension - B Length fraction
- 47/50 in
- Dimension - B Length inch
- 0.94 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - D inch
- 1.00 in
- Dimension - Height fraction
- 1-1/8
- Dimension - Height inch
- 1.13 in
- Dimension - Hole Size fraction
- 13/32
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 1.81 in
- Dimension - L Length Overall mm
- 46 mm
- Dimension - N inch
- 0.44 in
- Dimension - Pad Width fraction
- 13/16 in
- Dimension - Pad Width inch
- 0.81 in
- Dimension - Stud Size fraction
- 3/8
- Dimension - Stud Size inch
- 3/8
- Dimension - Width inch
- 0.81 in
- Dimension - Width mm
- 21 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.81 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 180 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- Number of Conductors/Ports (Main/Primary)
- 1
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 2.484 lb.
- Package - GTIN - Package
- 30781810324289
- Package Height
- 3.38 in
- Package Length
- 5.75 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810324288
- Package - Total Units
- 12 EA
- Package Weight
- 2.484 lb.
- Package Width
- 2.88 in
- Physical Attribute - Number of Clamping Elements
- 1
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Replaced Catalog Number
- QB26
- Special Features
- Features: Compact, High Copper Alloy Side Entrance Terminal For Joining A Range Of Cable At Right Angles To Terminal Blocks, One-Wrench Installation, Number Of Clamping Elements: 1, Dimension D: 1 IN, Dimension N: 7/16 IN, Dimension T: 7/32 IN, Dimension K: 13/32 IN, Tongue Width: 13/16 IN, Installation Torque: 180 IN-LB, Stud/bolt Hole Size: 3/8 IN, Height: 1-1/32 IN, Length: 1-13/16 IN
- Standard
- UL 486A-486B
- Standard Package Quantity
- 12
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- QIKLUG
- Sub Class Code
- B51BG3F
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Weight
- 0.23 lb.
- Width
- 0.81 in
