Burndy QA402N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

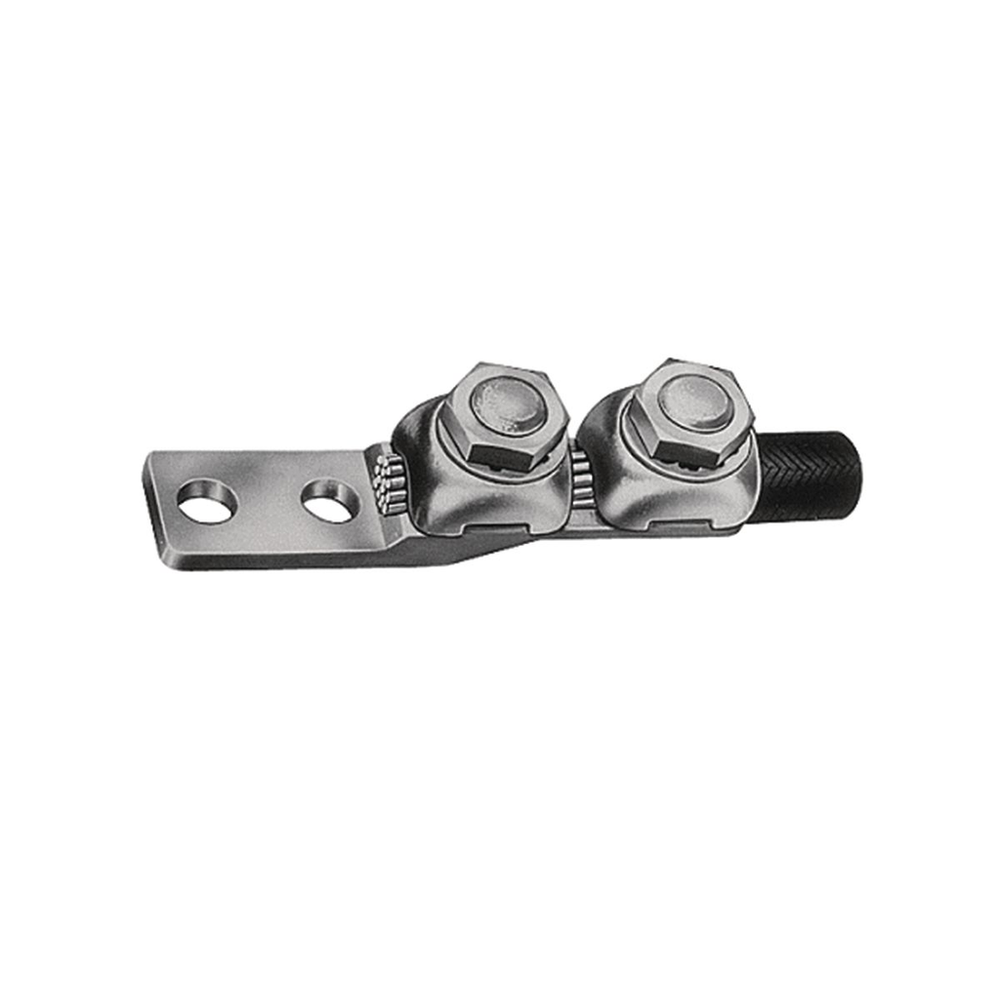

Copper Terminal, Heavy Duty, 2 Hole, 600-800 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 1 Screw.Copper Terminal, Heavy Duty, 2 Hole, 600-800 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 1 Screw
Burndy QA402N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810317327
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810317328
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Navy Size
- 650 (127) Navy;800 (127) Navy
- Conductor - Copper Str Navy Size Range
- 650 (127) Navy-800 (127) Navy
- Conductor - Copper Str Size
- 600 kcmil;700 kcmil;750 kcmil;800 kcmil
- Conductor - Copper Str Size Range
- 600 kcmil-800 kcmil
- Conductor Size
- 600-800 kcmil
- Conductor Type
- CU C Str-Size;CU C Str Navy-Size
- Connector Type
- Single Clamp
- Country of Origin
- US
- Description - Invoice
- 600-800 2 HOLE NEMA
- Description - Slang
- QIKLUG QA,QQA,Q2A
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 2-7/16
- Dimension - Height inch
- 2.31 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.81 in
- Dimension - L Length Overall mm
- 122 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.62 in
- Dimension - Stud Size inch
- 1/2
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.62 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 500 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.432 lb.
- Package - GTIN - Package
- 30781810317328
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810317327
- Package - Total Units
- 6 EA
- Package Weight
- 9.432 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Replaced Catalog Number
- QA402N
- Special Features
- Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar
- Standard
- UL 486A-486B
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- QIKLUG
- Sub Class Code
- B51BG2F
- Temperature Rating
- 194
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 1.62 in
