Burndy QA28B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

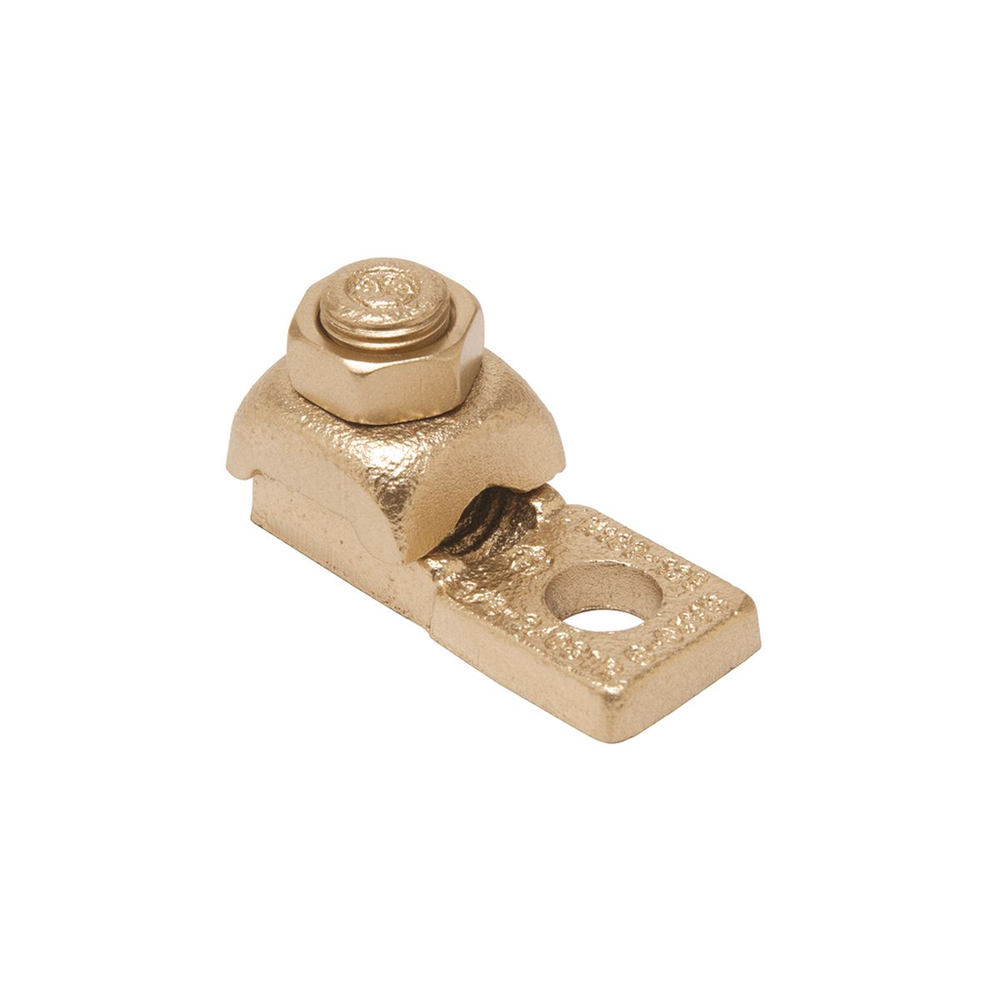

Copper Terminal, Heavy Duty, 1 Hole, 3/0-4/0 AWG (Str), 3/8" Stud, 1 Screw.Copper Terminal, Heavy Duty, 1 Hole, 3/0-4/0 AWG (Str), 3/8" Stud, 1 Screw
Burndy QA28B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Joining A Wide Range Of Cable To Equipment Pads Or Bar
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810314760
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810314761
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Navy Size
- 150 (61) Navy;200 (61) Navy
- Conductor - Copper Str Navy Size Range
- 150 (61) Navy-200 (61) Navy
- Conductor - Copper Str Size
- 3/0 AWG;4/0 AWG
- Conductor - Copper Str Size Range
- 3/0 AWG-4/0 AWG
- Conductor Size
- 3/0-4/0 AWG
- Conductor Type
- CU C Str-Size;CU C Str Navy-Size
- Connector Type
- Single Clamp
- Country of Origin
- MX
- Description - Invoice
- 3/0-4/0 CU LUG 1 BLT 1 H
- Description - Slang
- QIKLUG QA,QQA,Q2A
- Dimension - Bolt Size fraction
- 3/8
- Dimension - D inch
- 1.06 in
- Dimension - Height fraction
- 1-5/16
- Dimension - Height inch
- 1.31 in
- Dimension - Hole Size fraction
- 13/32
- Dimension - Hole Size inch
- 0.41 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 2.25 in
- Dimension - L Length Overall mm
- 57 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 1.00 in
- Dimension - Stud Size inch
- 3/8
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 250 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 7.25 lb.
- Package - GTIN - Package
- 30781810314761
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810314760
- Package - Total Units
- 25 EA
- Package Weight
- 7.25 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Number of Screws
- 1
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Replaced Catalog Number
- QA28B
- Special Features
- Features: Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Fast Onewrench Installation, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Stud/bolt Hole Size: 3/8 IN, Length: 2-1/4 IN, Installation Torque: 250 IN-LB, Dimension T: 1/4 IN, Width: 1 IN, Height: 1-5/16 IN, Tongue Width : 1 IN, Dimension D: 1-1/16 IN, Dimension K: 13/32 IN, Dimension N: 17/32 IN, Number Of Clamping Elements: 1
- Standard
- UL 486A-486B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- QIKLUG
- Sub Class Code
- B51BG2F
- Temperature Rating
- 194
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
- Width
- 1 in
