Burndy Q3A314N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

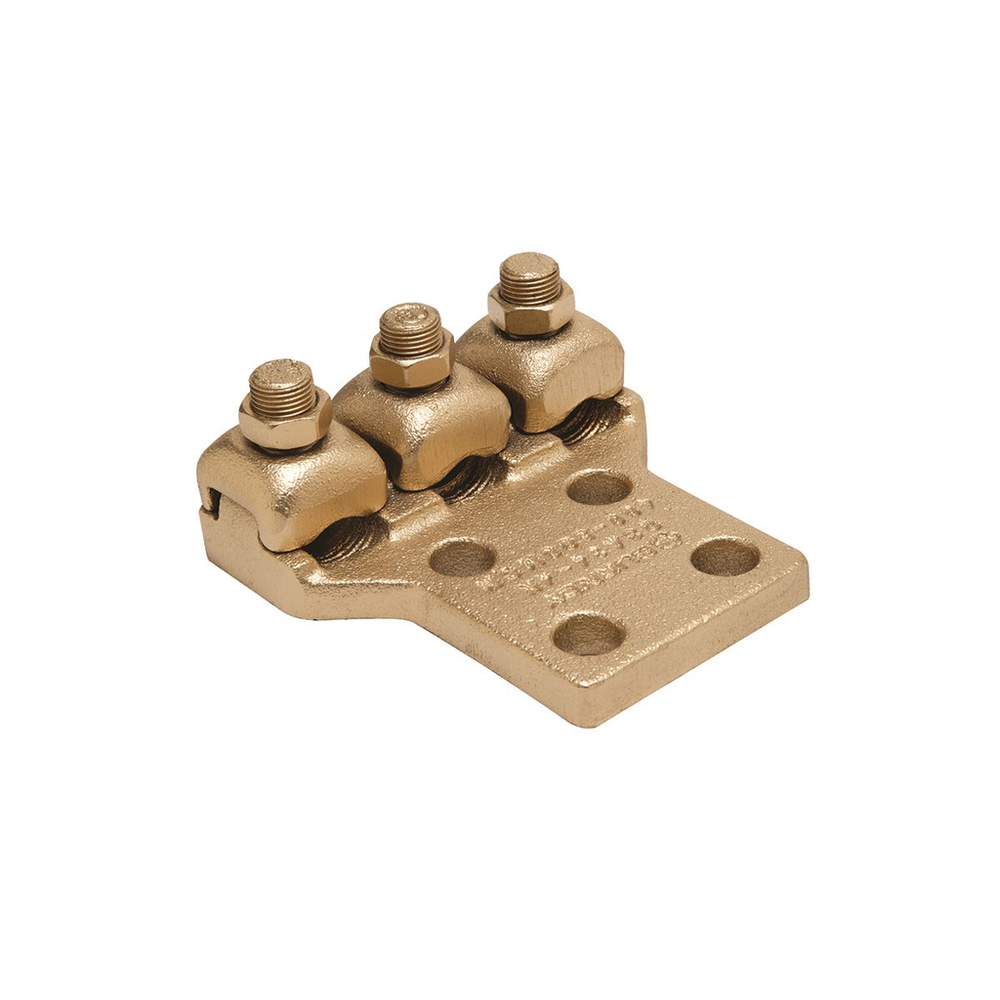

Copper Terminal, 4 Hole, 250-350 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 3 Screws.Copper Terminal, 4 Hole, 250-350 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 3 Screws
Burndy Q3A314N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810323328
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810323329
- Certification Agency
- Proposition 65
- Class Code
- B51
- Conductor - Copper Str Size
- 250 kcmil;300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 250 kcmil-350 kcmil
- Conductor Size
- 250-350 kcmil
- Conductor Type
- CU C Str-Size;CU C Solid-Size
- Connector Type
- Tri Clamp
- Country of Origin
- US
- Description - Slang
- Mechanical lugs for one or more cables
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.13 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 1-11/16
- Dimension - Height inch
- 1.69 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 4.44 in
- Dimension - L Length Overall mm
- 113 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 3.00 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Width fraction
- 4-1/16 in
- Dimension - Width inch
- 4.06 in
- Dimension - Width mm
- 103 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Installation Torque Recommended in-lb
- 325 LBS/in
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810323329
- Package Quantity
- 3 EA
- Package - Total Units
- 3 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Number of Screws
- 3
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plated
- N
- Plating Type
- Unplated
- Product Type
- TERMINAL
- Rating - Minimum Voltage
- 600
- Standard Package Quantity
- 3
- Standards - Industry Standards Met
- UL 486A-486B
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B51BG3F
- Temperature Rating
- 194
- Trade Name
- QIKLUG™
- Type
- Bolted Lugs & Terminals
- UL Listed
- Yes
