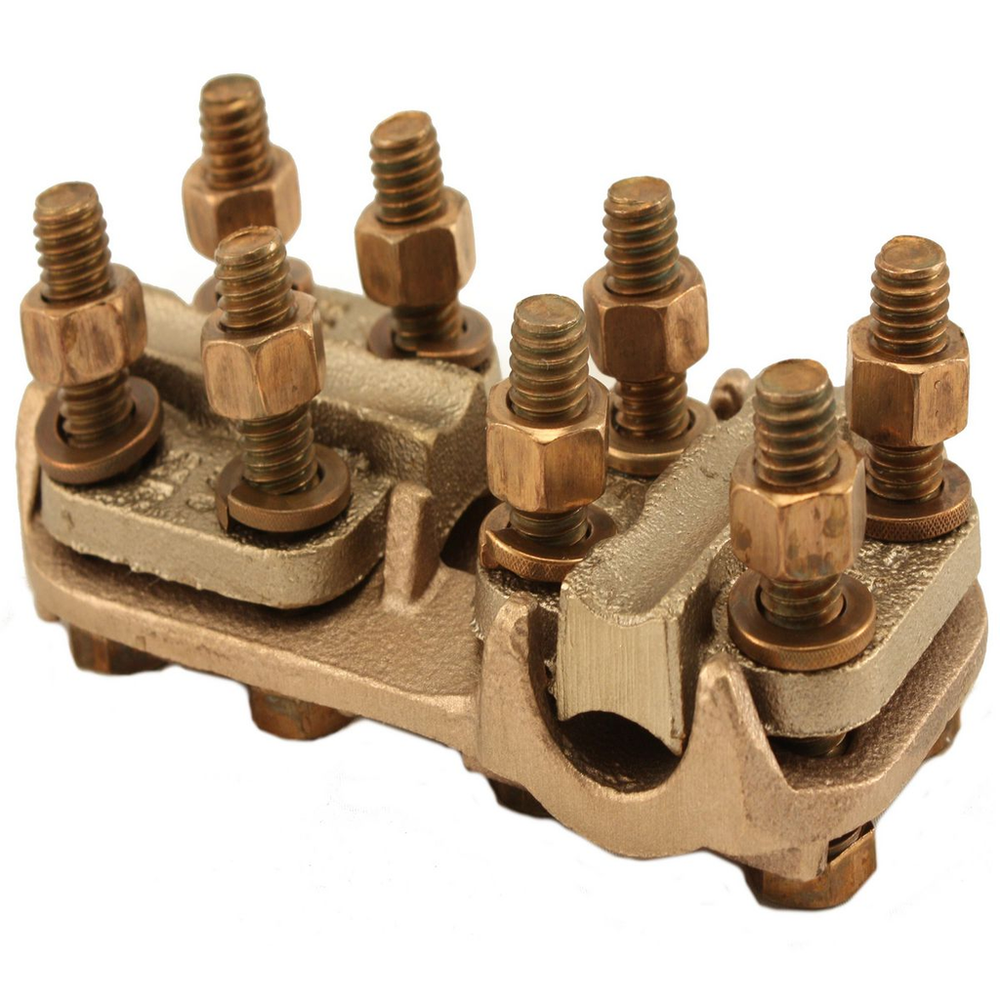

Burndy NSNT3429
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Cu Alloy T Connector, Cu Cable to Cable, 1/0 Sol. to 500 kcmil (Run), 6 Sol. to 250 kcmil (Tap).Cast Cu Alloy Bolted Coupler, Cu Tube to Tube, 1/0 Sol. to 500 kcmil (Run), 6 Sol. to 250 kcmil (Tap)
Burndy NSNT3429 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002780
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002781
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Cable
- Conductor - Copper Solid Run
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Run Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Solid Tap
- 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 5 AWG-4/0 AWG
- Conductor - Copper Str Run
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 1/0 AWG-500 kcmil
- Conductor - Copper Str Tap
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Tap Range
- 6 AWG-250 kcmil
- Conductor Type
- CU C Str-Run;CU C Solid-Run;CU C Str-Tap;CU C Solid-Tap;CU Tube Std-Run
- Connector Type
- T-Connector
- Country of Origin
- US
- Dimension - B Length fraction
- 2-19/50 in
- Dimension - B Length inch
- 2.38 in
- Dimension - Height inch
- 2.00 in
- Dimension - Length BB inch
- 2.38 in
- Dimension - Length Overall inch
- 4.84 in
- Dimension - L Length Overall mm
- 123 mm
- Dimension - Width fraction
- 1-24/25 in
- Dimension - Width inch
- 1.96 in
- Dimension - Width mm
- 50 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 240 LBS/in
- Lead Time
- 12 wk
- Material
- Copper Alloy, Cast
- Material - Hardware
- Silicon Bronze
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810002781
- Package Quantity
- 4 EA
- Package - Total Units
- 4 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 4
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B0OF
- Type
- Tube to Cable Couplers
- UL Listed
- No
