Burndy NS1717
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

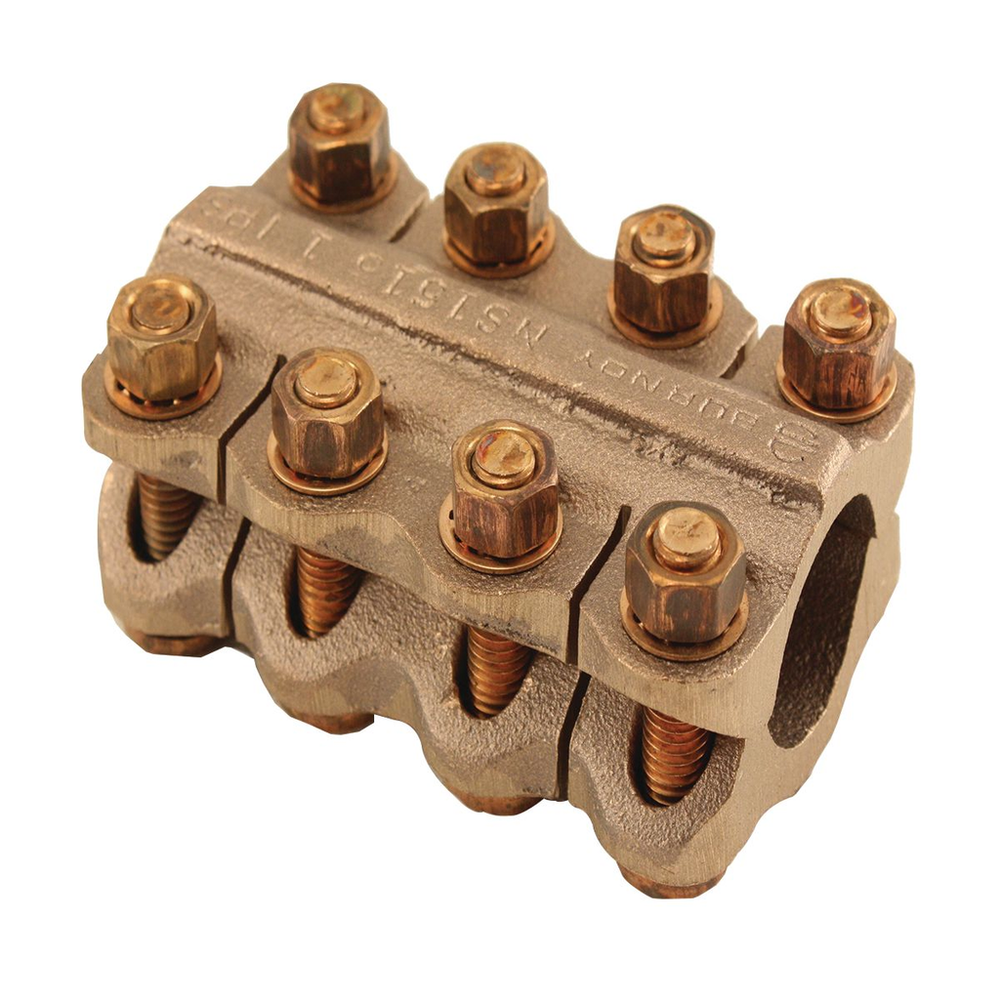

Cast Cu Alloy Bolted Coupler, Cu Tube to Tube, 1-1/2" IPS, Silicon Bronze H/W.Cast Cu Alloy Bolted Coupler, Cu Tube to Tube, 1-1/2" IPS, Silicon Bronze H/W
Burndy NS1717 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002551
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002552
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Tube to Tube
- Conductor - Copper Tube Std Run
- 1 1/2 IPS
- Conductor - Copper Tube Std Size
- 1 1/2 IPS
- Conductor - Copper Tube Std Size Range
- 1 1/2 IPS
- Conductor - Copper Tube Std Tap
- 1 1/2 IPS
- Conductor Type
- CU Tube Std-Size
- Connector Type
- Couplers
- Country of Origin
- US
- Dimension - B Length inch
- 2.88 in
- Dimension - Height inch
- 2.75 in
- Dimension - Length BB inch
- 2.88 in
- Dimension - Length Overall inch
- 5.75 in
- Dimension - L Length Overall mm
- 146 mm
- Dimension - Width inch
- 3.94 in
- Dimension - Width mm
- 100 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 LBS/in
- Lead Time
- 12 wk
- Material
- Copper Alloy, Cast
- Material - Hardware
- Silicon Bronze
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810002552
- Package Quantity
- 2 EA
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Physical Attribute - Pad Orientation
- Straight
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- NS1717
- Standard Package Quantity
- 2
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B0OF
- Type
- Tube to Tube Couplers
- UL Listed
- No
