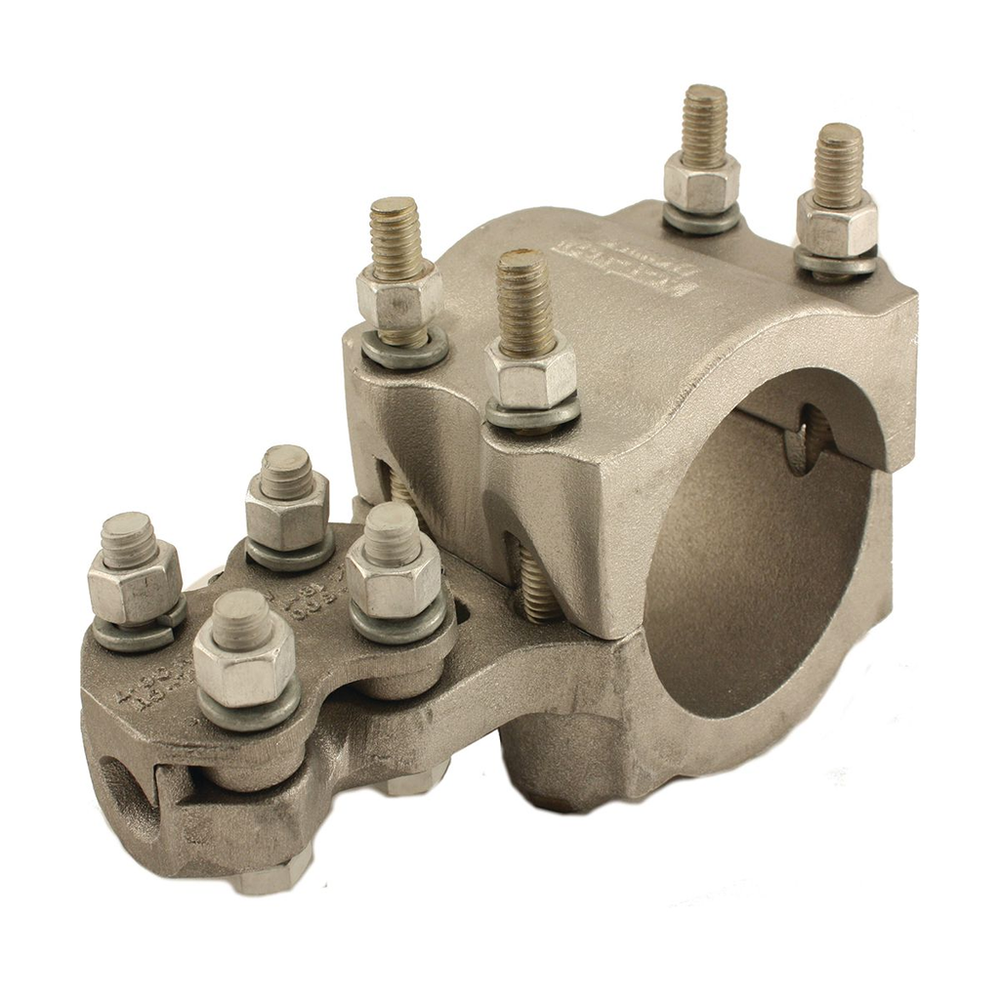

Burndy NNTR46A46A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Substation Connectors.Substation Connectors
Burndy NNTR46A46A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810004081
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810004082
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - ACSR Str Run
- 1113 (54/19) Finch kcmil;1192.5 (45/7) Bunting kcmil;1192.5 (54/19) Grackle kcmil;1272 (54/19) Pheasant kcmil;1351.5 (54/19) Martin kcmil;1431 (54/19) Plover kcmil
- Conductor - ACSR Str Run Range
- 1113 (54/19) Finch kcmil-1431 (54/19) Plover kcmil
- Conductor - ACSR Str Tap
- 1113 (54/19) Finch kcmil;1192.5 (45/7) Bunting kcmil;1192.5 (54/19) Grackle kcmil;1272 (54/19) Pheasant kcmil;1351.5 (54/19) Martin kcmil;1431 (54/19) Plover kcmil
- Conductor - ACSR Str Tap Range
- 1113 (54/19) Finch kcmil-1431 (54/19) Plover kcmil
- Conductor - AL Str Run
- 1250 kcmil;1272 kcmil;1300 kcmil;1351 kcmil;1400 kcmil;1431 kcmil;1500 kcmil;1590 kcmil;1600 kcmil
- Conductor - AL Str Run Range
- 1250 kcmil-1600 kcmil
- Conductor - AL Str Tap
- 1250 kcmil;1272 kcmil;1300 kcmil;1351 kcmil;1400 kcmil;1431 kcmil;1500 kcmil;1590 kcmil;1600 kcmil
- Conductor - AL Str Tap Range
- 1250 kcmil-1600 kcmil
- Conductor - Connection Combination
- Cable to Cable
- Connector Type
- T-Connector
- Country of Origin
- US
- Dimension - B Length fraction
- 4-3/8 in
- Dimension - B Length inch
- 4.38 in
- Dimension - Height fraction
- 3-3/4 in
- Dimension - Height inch
- 3.69 in
- Dimension - Length BB inch
- 4.38 in
- Dimension - Length Overall inch
- 8.31 in
- Dimension - L Length Overall mm
- 211 mm
- Dimension - Width inch
- 3.75 in
- Dimension - Width mm
- 95 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 LBS/in
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Material - Hardware
- Aluminum
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810004082
- Package Quantity
- 2 EA
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 2
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B21B06F
- Type
- Bolted Tees
- UL Listed
- No
