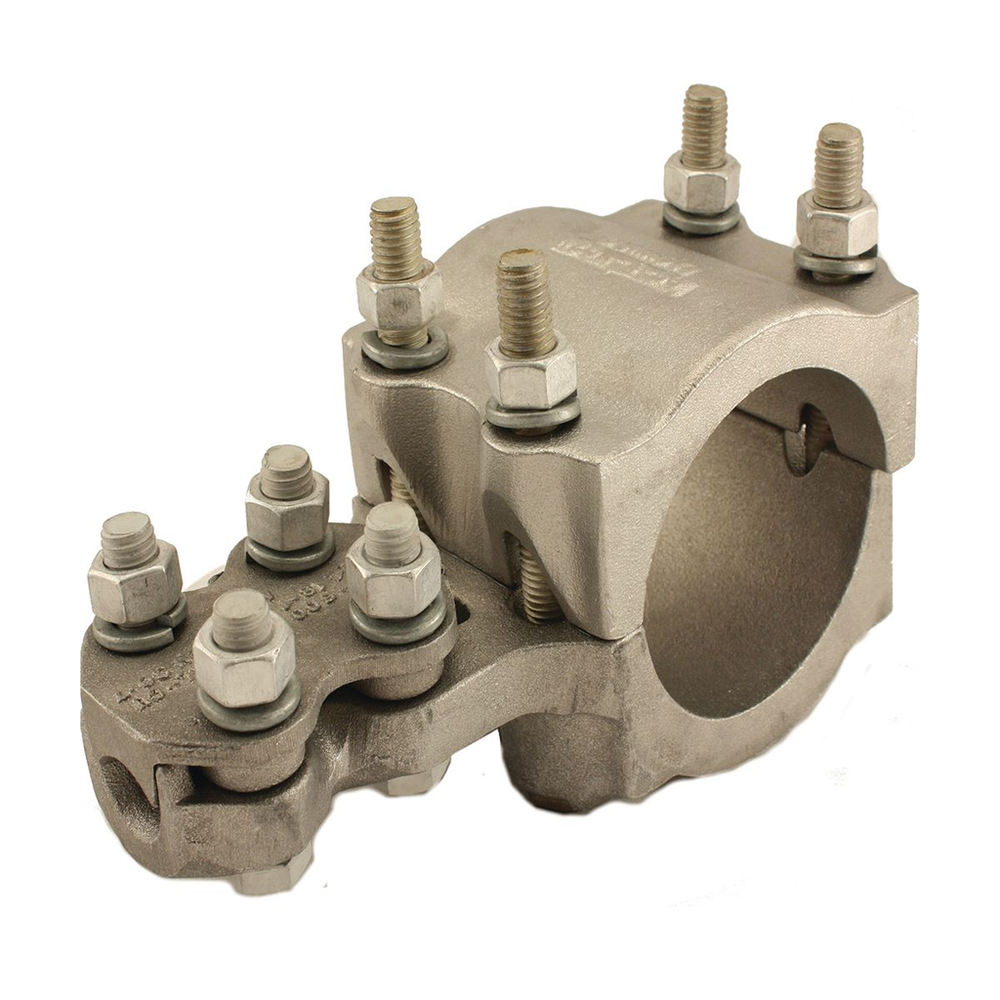

Burndy NNTR45A45A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Al Bolted T-Connector, Coductor Al or CU Range: 900-1250 Kcmil (Run and Tap), ACSR Conductor Range: 715.5-1113 Kcmil (Run and Tap).Al Bolted T-Connector, Coductor Al or CU Range: 900-1250 Kcmil (Run and Tap), ACSR Conductor Range: 715.5-1113 Kcmil (Run and Tap)
Burndy NNTR45A45A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810004197
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810004198
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - ACSR Str Run
- 715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil;1033.5 (45/7) Ortolan kcmil;1033.5 (54/7) Curlew kcmil;1113 (54/19) Finch kcmil
- Conductor - ACSR Str Run Range
- 715.5 (54/7) Crow kcmil-1113 (54/19) Finch kcmil
- Conductor - ACSR Str Tap
- 715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil;900 (54/7) Canary kcmil;954 (45/7) Rail kcmil;954 (54/7) Cardinal kcmil;1033.5 (45/7) Ortolan kcmil;1033.5 (54/7) Curlew kcmil;1113 (54/19) Finch kcmil
- Conductor - ACSR Str Tap Range
- 715.5 (54/7) Crow kcmil-1113 (54/19) Finch kcmil
- Conductor - AL Str Run
- 900 kcmil;954 kcmil;1000 kcmil;1033 kcmil;1100 kcmil;1113 kcmil;1192 kcmil;1200 kcmil;1250 kcmil
- Conductor - AL Str Run Range
- 900 kcmil-1250 kcmil
- Conductor - AL Str Tap
- 900 kcmil;954 kcmil;1000 kcmil;1033 kcmil;1100 kcmil;1113 kcmil;1192 kcmil;1200 kcmil;1250 kcmil
- Conductor - AL Str Tap Range
- 900 kcmil-1250 kcmil
- Conductor - Connection Combination
- Cable to Cable
- Connector Type
- T-Connector
- Country of Origin
- US
- Dimension - B Length fraction
- 3-3/4 in
- Dimension - B Length inch
- 3.75 in
- Dimension - Height fraction
- 3-1/4 in
- Dimension - Height inch
- 3.25 in
- Dimension - Length BB inch
- 3.75 in
- Dimension - Length Overall inch
- 7.31 in
- Dimension - L Length Overall mm
- 186 mm
- Dimension - Width inch
- 3.19 in
- Dimension - Width mm
- 81 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 300 LBS/in
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Material - Hardware
- Aluminum
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810004198
- Package Quantity
- 4 EA
- Package - Total Units
- 4 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- NNTR45A45A
- Standard Package Quantity
- 4
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B21B06F
- Type
- Bolted Tees
- UL Listed
- No
