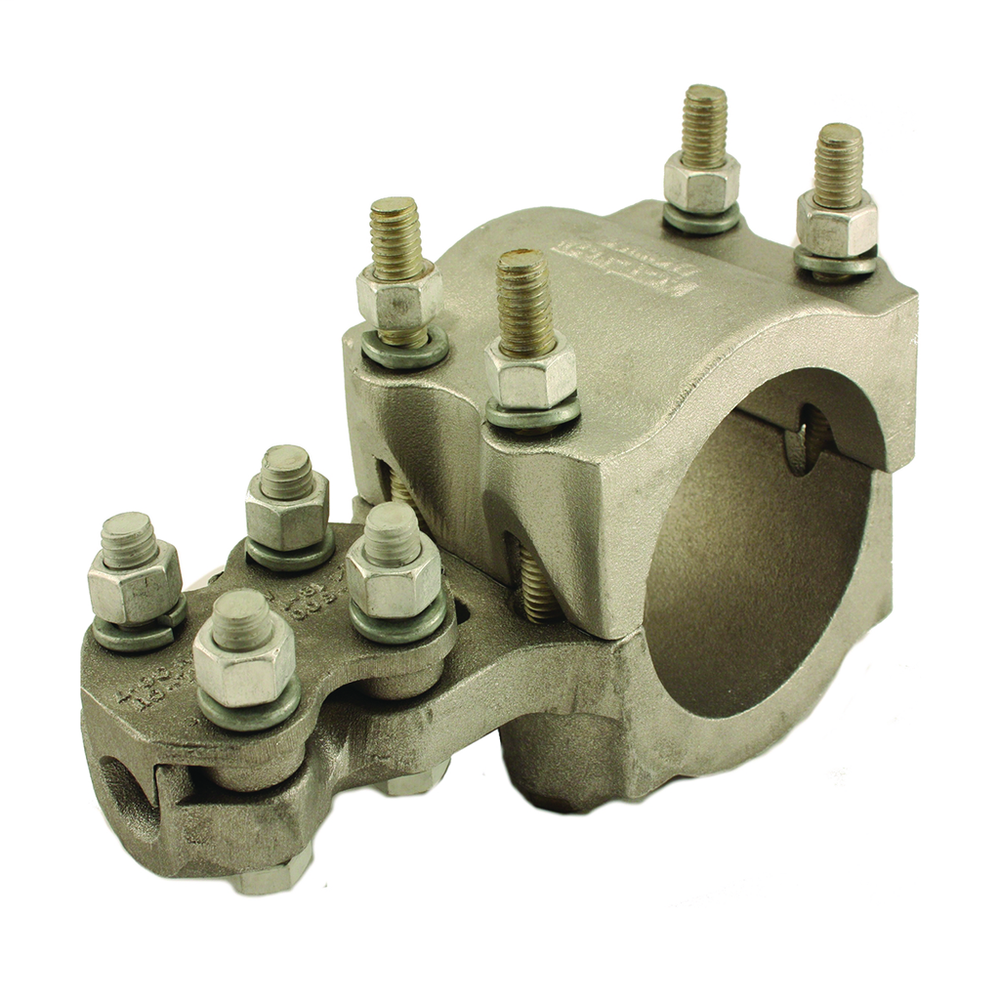

Burndy NNTR42A36A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Al Alloy T-Connector, Bolted, Cable to Cable, 600-900 kcmil(Al/Cu), 477-795 kcmil(ACSR)(Run), 350-600 kcmil(Al/Cu), 336.4-477 kcmil(ACSR)(Tap)Cable(s) to Cable(s) NNTR42A36A
Burndy NNTR42A36A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- No
Conductor Related
- Conductor - ACSR Str Run
- 477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil;500.0 (30/7) Heron kcmil;556.5 (24/7) Parakeet kcmil;556.5 (26/7) Dove kcmil;556.5 (30/7) Eagle kcmil;605 (24/7) Peacock kcmil;605 (26/7) Squab kcmil;605 (30/19) Teal kcmil;636 (24/7) Rook kcmil;636 (26/7) Grosbeak kcmil;636 (30/19) Egret kcmil;666.6 (24/7) Flamingo kcmil;715.5 (54/7) Crow kcmil;715.5 (24/7) Stilt kcmil;715.5 (26/7) Starling kcmil;715.5 (30/19) Redwing kcmil;795 (54/7) Condor kcmil
- Conductor - ACSR Str Run Range
- 477.0 (18/1) Pelican kcmil-795 (54/7) Condor kcmil
- Conductor - ACSR Str Tap
- 336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Tap Range
- 336.4 (18/1) Merlin kcmil-477.0 (18/1) Pelican kcmil
- Conductor - AL Str Run
- 600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil
- Conductor - AL Str Run Range
- 600 kcmil-900 kcmil
- Conductor - AL Str Tap
- 350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Conductor - AL Str Tap Range
- 350 kcmil-600 kcmil
- Conductor - Connection Combination
- Cable to Cable
Dimensions
- Dimension - B Length fraction
- 3-1/2 in
- Dimension - B Length inch
- 3.50 in
- Dimension - Height fraction
- 3-1/8 in
- Dimension - Height inch
- 3.13 in
- Dimension - Length BB inch
- 3.25 in
- Dimension - Length Overall inch
- 6.63 in
- Dimension - L Length Overall mm
- 168 mm
- Dimension - Width inch
- 2.75 in
- Dimension - Width mm
- 70 mm
Electrical Ratings
- Rating - KVA
- 230 kV
General
- Application
- Substation
- Connector Type
- T-Connector
- Installation Torque Recommended in-lb
- 300 LBS/in
- Material
- Aluminum Alloy
- Material - Hardware
- Aluminum
- One Wrench Installation
- Y
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Type
- Bolted Tees
- UPC
- 781810004005
- UPC 12 Digit
- 7818100040055
Logistics
- Minimum Pack Quantity
- 1
