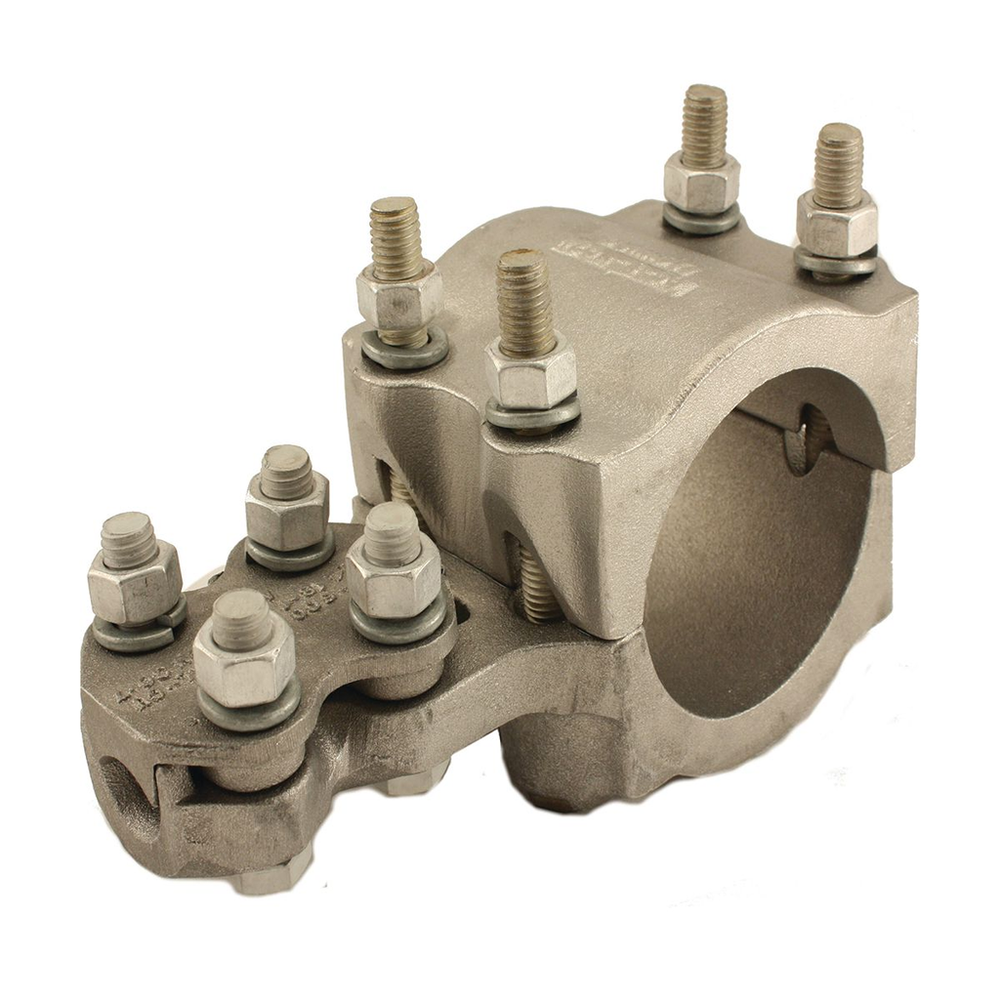

Burndy NNTR36A29A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Substation Connectors.Substation Connectors
Burndy NNTR36A29A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810003923
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810003924
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - ACSR Str Run
- 336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil;336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Run Range
- 336.4 (18/1) Merlin kcmil-477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Tap
- 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Tap Range
- 1/0 (6/1) Raven AWG-4/0 (6/1) Penquin AWG
- Conductor - AL Str Run
- 350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Conductor - AL Str Run Range
- 350 kcmil-600 kcmil
- Conductor - AL Str Tap
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Tap Range
- 1/0 AWG-250 kcmil
- Conductor - Connection Combination
- Cable to Cable
- Connector Type
- T-Connector
- Country of Origin
- US
- Dimension - B Length fraction
- 3-1/4 in
- Dimension - B Length inch
- 3.25 in
- Dimension - Height fraction
- 2-5/8 in
- Dimension - Height inch
- 2.56 in
- Dimension - Length BB inch
- 2.75 in
- Dimension - Length Overall inch
- 5.31 in
- Dimension - L Length Overall mm
- 135 mm
- Dimension - Width inch
- 2.50 in
- Dimension - Width mm
- 64 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 300 LBS/in
- Lead Time
- 12 wk
- Material
- Aluminum Alloy
- Material - Hardware
- Aluminum
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810003924
- Package Quantity
- 4 EA
- Package - Total Units
- 4 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 4
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B21B06F
- Type
- Bolted Tees
- UL Listed
- No
