Description

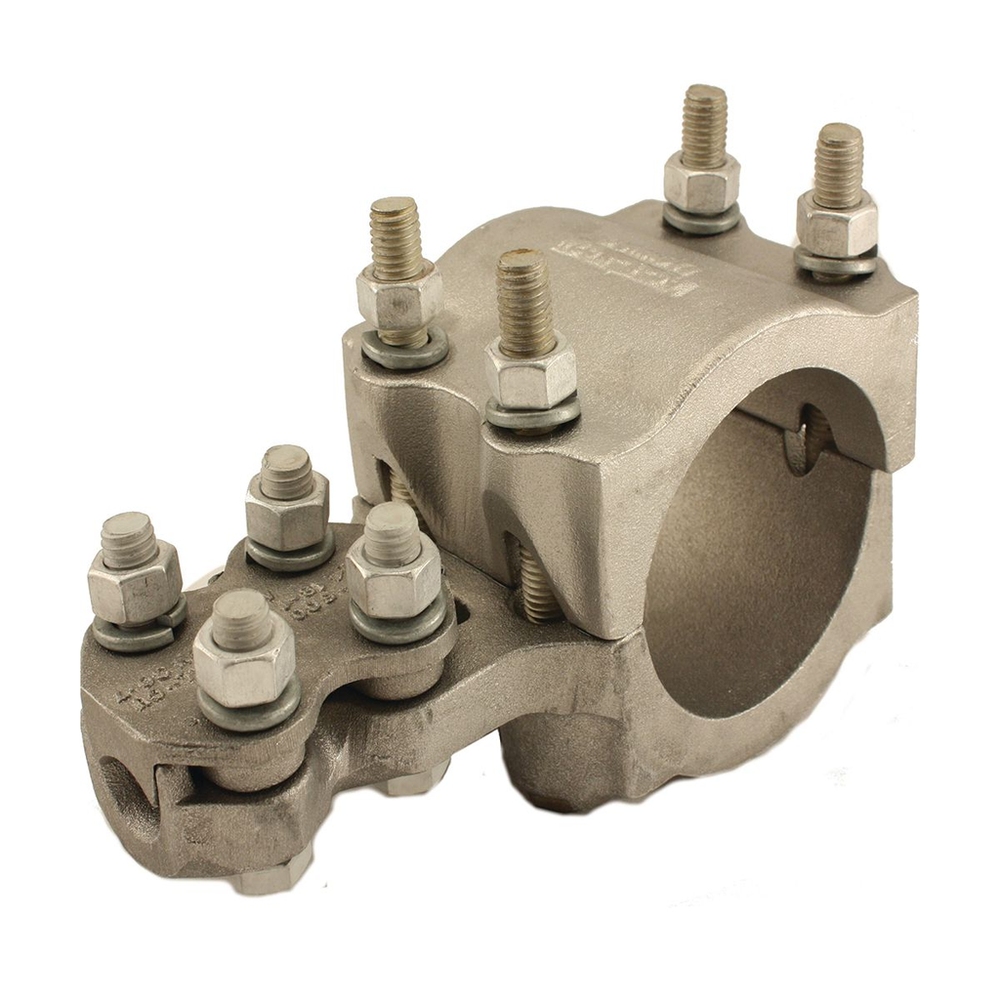

T-Connector, 5-5/8 in Length, 1/0 Str. - 250 Kcmil Al/Cu 1/0 - 4/0 Kcmil ACSR, 1/0 Str. - 250 Kcmil Al/Cu 1/0 - 4/0 Kcmil ACSR.T-Connector, 5-5/8 in Length, 1/0 Str. - 250 Kcmil Al/Cu 1/0 - 4/0 Kcmil ACSR, 1/0 Str. - 250 Kcmil Al/Cu 1/0 - 4/0 Kcmil ACSR
Burndy NNTR29A29A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810004043
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810004044
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - ACSR Str Run
- 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Run Range
- 1/0 (6/1) Raven AWG-4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Tap
- 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Tap Range
- 1/0 (6/1) Raven AWG-4/0 (6/1) Penquin AWG
- Conductor - AL Str Run
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Run Range
- 1/0 AWG-250 kcmil
- Conductor - AL Str Tap
- 1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - AL Str Tap Range
- 1/0 AWG-250 kcmil
- Conductor - Connection Combination
- Cable to Cable
- Connector Type
- T-Connector
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 1/0-250 TO 1/0-250 AL/CU
- Dimension - B Length fraction
- 2-3/4 in
- Dimension - B Length inch
- 2.75 in
- Dimension - F Width Center to Center inch
- 1.36 in
- Dimension - Height fraction
- 2-5/8 in
- Dimension - Height inch
- 2.56 in
- Dimension - Length BB inch
- 2.75 in
- Dimension - Length Overall inch
- 5.56 in
- Dimension - L Length Overall mm
- 141 mm
- Dimension - Pad Width inch
- 2.48 in
- Dimension - Width inch
- 2.50 in
- Dimension - Width mm
- 64 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.50 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 300 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.55 lb.
- Package - GTIN - Package
- 30781810004044
- Package Height
- 4.25 in
- Package Length
- 9.00 in
- Package - Number of Sub Packs
- 5
- Package - Pack Description
- Package
- Package Quantity
- 5 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810004043
- Package - Total Units
- 5 EA
- Package Weight
- 8.55 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- NNTR29A29A
- Special Features
- Features: Aluminum Alloy T-Connector For A Range Of Copper, Aluminum And ACSR Cable On Run And Tap, Properly Proportioned To Permit Use On Copper-Aluminum Conductor Combinations, One-Wrench Installation, PENETROX Joint Compound Recommended On Contact Surfaces, Wire Type: ACSR, Aluminum, Copper Run And Tap, Conductor Clamping Hardware: 1/2 IN, Installation Torque: 300 IN-LB
- Standard Package Quantity
- 5
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- T-CONNECTOR
- Sub Class Code
- B21B06F
- Type
- Bolted Tees
- UL Listed
- No
- Width
- 2.50 in
