Burndy NHNT4444
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

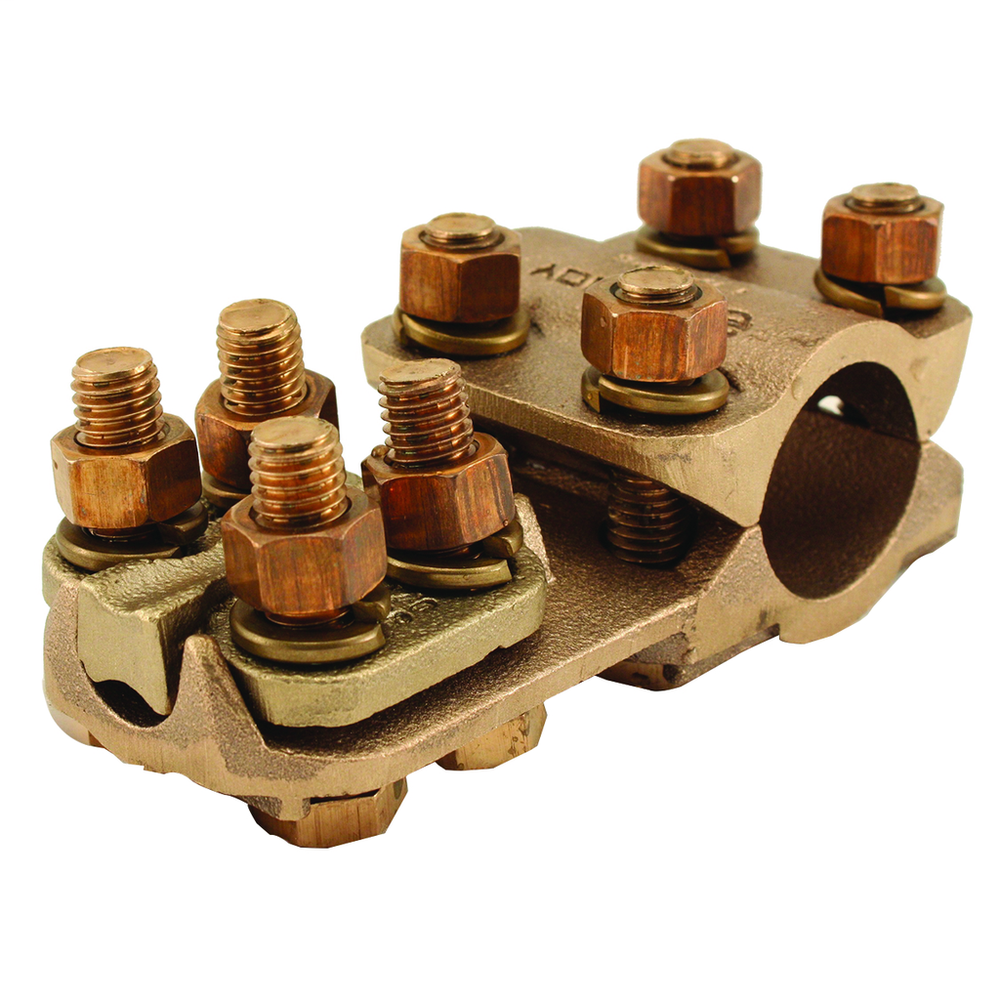

Cast Cu Alloy T Connector, 6.03 IN L, 2.90 IN W, Bolted, Cu Cable to Cable, 4/0 AWG STR-1000 KCMIL (Run), 4/0 AWG STR-1000 KCMIL (Tap), 230 kV.Tube to Cable NHNT4444
Burndy NHNT4444 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- EX
- UL Listed
- No
Conductor Related
- Conductor - Connection Combination
- Cable to Cable
- Conductor - Copper Str Run
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
- Conductor - Copper Str Run Range
- 4/0 AWG-1000 kcmil
- Conductor - Copper Str Tap
- 4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
- Conductor - Copper Str Tap Range
- 4/0 AWG-1000 kcmil
Dimensions
- Dimension - B Length fraction
- 2-22/25 in
- Dimension - B Length inch
- 2.88 in
- Dimension - Height fraction
- 2-57/100 in
- Dimension - Height inch
- 2.57 in
- Dimension - Length BB inch
- 2.88 in
- Dimension - Length Overall inch
- 6.03 in
- Dimension - L Length Overall mm
- 153 mm
- Dimension - Width fraction
- 2-9/10 in
- Dimension - Width inch
- 2.90 in
- Dimension - Width mm
- 74 mm
Electrical Ratings
- Rating - KVA
- 230 kV
General
- Application
- Substation
- Connector Type
- T-Connector
- Installation Torque Recommended in-lb
- 480 lb-in
- Material
- Copper Alloy, Cast
- Material - Hardware
- DURIUM™ Silicon Bronze
- One Wrench Installation
- Y
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Sub Brand
- SUBSTATION CONNECTORS
- Type
- Tube to Cable Couplers
- UPC
- 781810002292
- UPC 12 Digit
- 7818100022922
Logistics
- Minimum Pack Quantity
- 1
