Description

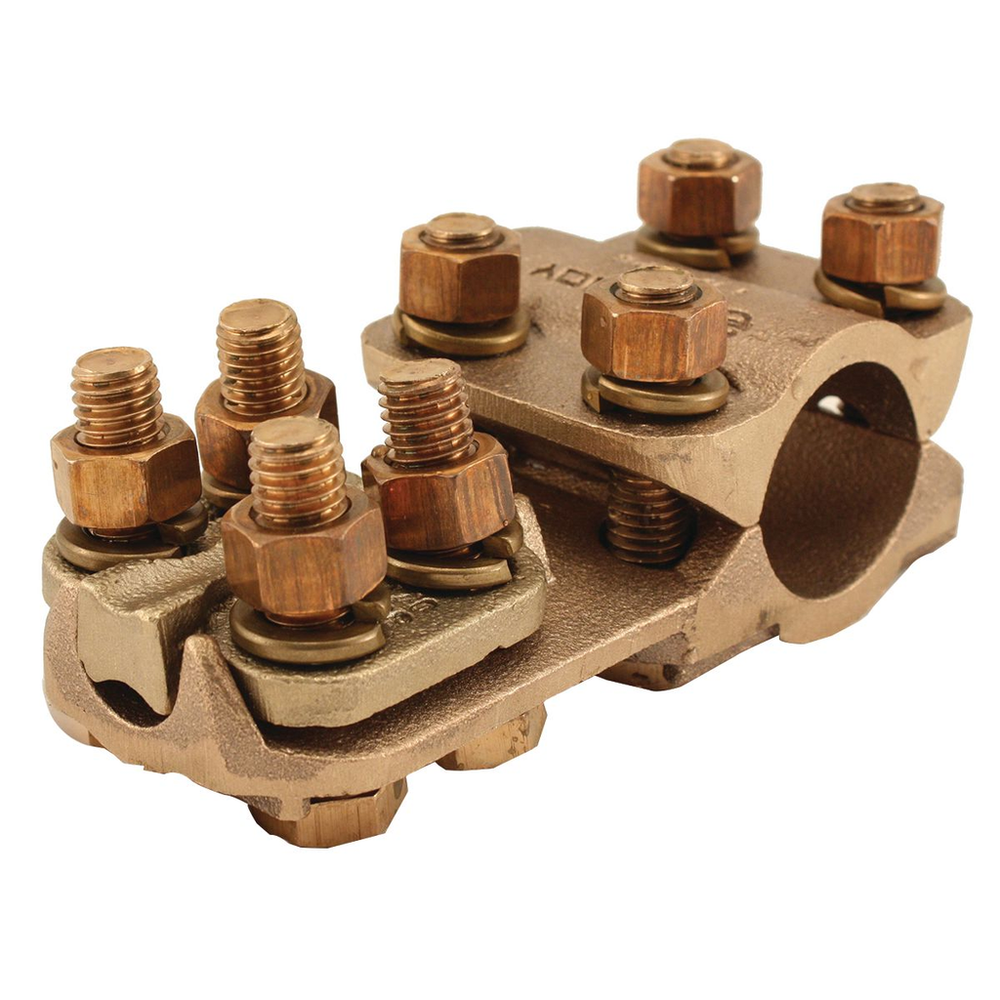

Cast Copper alloy T-Connector, 1/0 Sol.-500 kcmil, 4.84 in Length, Cable to Cable.Cast Copper alloy T-Connector, 1/0 Sol.-500 kcmil, 4.84 in Length, Cable to Cable
Burndy NHNT3434 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002230
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002231
- Certification Agency
- Proposition 65
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Cable
- Conductor - Copper Solid Run
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Run Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Solid Tap
- 2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Tap Range
- 2/0 AWG-4/0 AWG
- Conductor - Copper Str Run
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 1/0 -500 kcmil
- Conductor - Copper Str Tap
- 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Tap Range
- 1/0 -500 kcmil
- Conductor Type
- CU Tube Std-Run;CU C Str-Run;CU C Solid-Run;CU C Str-Tap;CU C Solid-Tap
- Connector Type
- T-Connector
- Country of Origin
- US
- Description - Invoice
- 250-500 kcmil LARGE TAP GROVE
- Dimension - B Length fraction
- 2-31/50 in
- Dimension - B Length inch
- 2.62 in
- Dimension - Height fraction
- 2-8/25 in
- Dimension - Height inch
- 2.32 in
- Dimension - Length BB inch
- 2.62 in
- Dimension - Length Overall inch
- 5.38 in
- Dimension - L Length Overall mm
- 137 mm
- Dimension - Width fraction
- 2-14/25 in
- Dimension - Width inch
- 2.56 in
- Dimension - Width mm
- 65 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.56 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 lb-in
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy, Cast
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 21 lb.
- Package - GTIN - Package
- 30781810002231
- Package Height
- 4.25 in
- Package Length
- 9.00 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810002230
- Package - Total Units
- 6 EA
- Package Weight
- 21 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Number of Tap Conductors
- 1
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- NHNT3434
- Special Features
- Cast Copper alloy T-Connector, 1/0 Sol.-500 kcmil, 4.84 in Length, Cable to Cable
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- T-CONNECTOR
- Sub Class Code
- B21B0OF
- Type
- Tube to Cable Couplers
- UL Listed
- No
- Width
- 2.56 in
