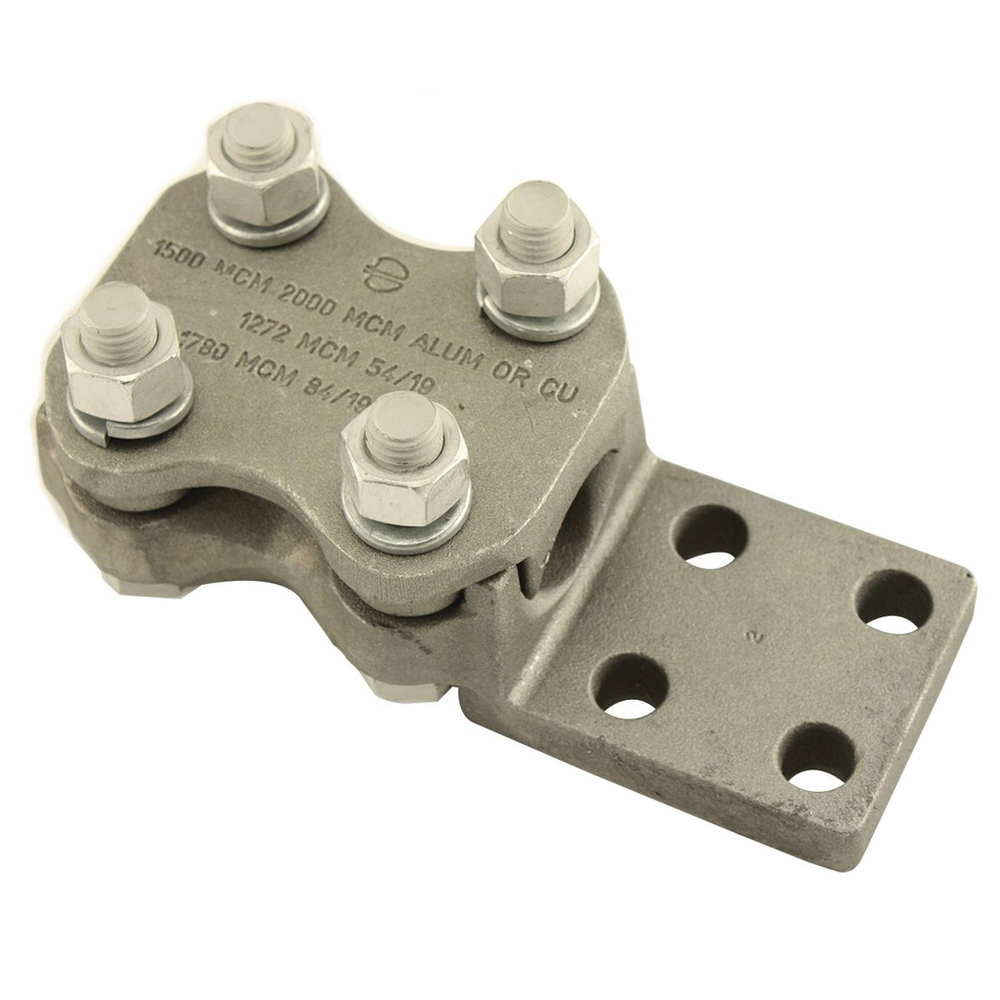

Burndy NAR36A4N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Al Bolted Terminal, Cable to Flat, 350-600 kcmil(Al/Cu), 336.4-477 kcmil(ACSR), 4 NEMA Pad Holes.Al Bolted Terminal, Cable to Flat, 350-600 kcmil(Al/Cu), 336.4-477 kcmil(ACSR), 4 NEMA Pad Holes
Burndy NAR36A4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810003855
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810003856
- Certification Agency
- Proposition 65
- Clamping Element Design
- Body And Cap
- Class Code
- B21
- Conductor - ACSR Str Size
- 336.4 (30/7) Oriole kcmil;397.5 (18/1) Chickadee kcmil;397.5 (24/7) Brant kcmil;397.5 (26/7) Ibis kcmil;397.5 (30/7) Larkspur kcmil;477.0 (18/1) Pelican kcmil;477.0 (24/7) Flicker kcmil;477.0 (26/7) Hawk kcmil;477. (30/7) Hen kcmil
- Conductor - ACSR Str Size Range
- 336.4 (30/7) Oriole kcmil-477. (30/7) Hen kcmil
- Conductor - AL Str Size
- 350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
- Conductor - AL Str Size Range
- 350 kcmil-600 kcmil
- Conductor - Connection Combination
- Cable to Flat
- Conductor Type
- AL C Str-Size;ACSR C Str-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- AL TERM 350-600
- Dimension - B Length inch
- 3.25 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 2-7/8 in
- Dimension - Height inch
- 2.81 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Length Overall inch
- 6.63 in
- Dimension - L Length Overall mm
- 168 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 3.00 in
- Dimension - Thread Size
- 1/2
- Dimension - Width inch
- 3.00 in
- Dimension - Width mm
- 76 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.00 in
- End Connection
- Bolted
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 300 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum Alloy
- Material - Hardware
- Aluminum
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.96 lb.
- Package - GTIN - Package
- 30781810003856
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 8
- Package - Pack Description
- Package
- Package Quantity
- 8 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810003855
- Package - Total Units
- 8 EA
- Package Weight
- 10.96 lb.
- Package Width
- 7.44 in
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Pad Alignment
- Offset
- Physical Attribute - Pad Configuration
- 3 x 3 - 4 holes
- Physical Attribute - Pad Orientation
- Straight
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Replaced Catalog Number
- NAR36A4N
- Special Features
- Features: Aluminum Alloy Terminal For Joining A Wide Range Of Copper Or Aluminum Cable To Copper Or Aluminum Pad, Properly Proportioned To Minimize Conductor Corrosion Due To Galvanic Action, Drilling In Pad Conforms To NEMA Standards, One-Wrench Installation, PENETROX A Joint Compound Recommended On Contact Surfaces, Available With 90 DEG Pad, Wire Type: ACSR, Aluminum, Copper, Conductor Clamping Hardware: 1/2 IN, Pad Configuration: Straight Offset, Installation Torque: 300 IN-LB
- Standard Package Quantity
- 8
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- SUBSTATION CONNECTOR
- Sub Class Code
- B21B06F
- Type
- NAR-A
- UL Listed
- No
- Width
- 3.00 in
