Burndy NAH292N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

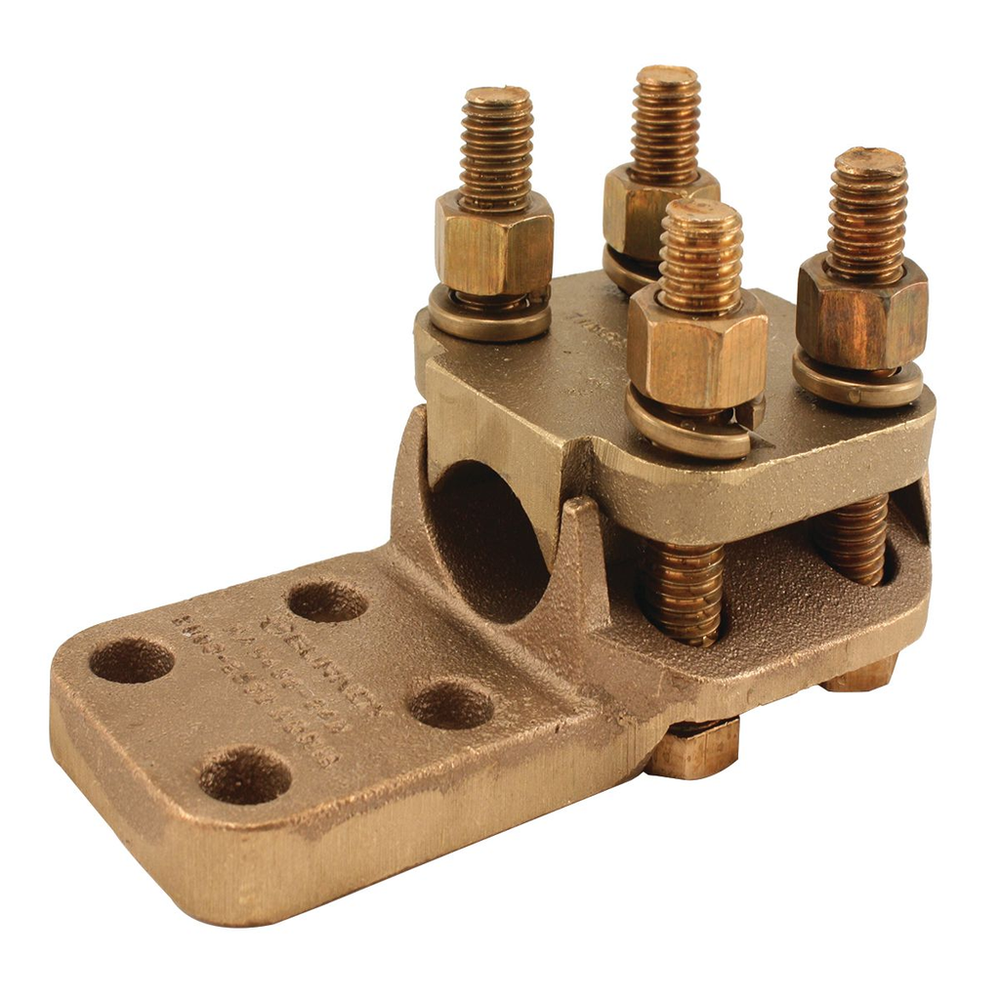

Cast Copper alloy terminal, 6 Sol-250 kcmil , 5.88 in Length, Cable to Pad.Cast Copper alloy terminal, 6 Sol-250 kcmil, 5.88 in Length, Cable to Pad
Burndy NAH292N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Substation
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002278
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002279
- Certification Agency
- Proposition 65
- Clamping Element Design
- Body and Cap
- Class Code
- B21
- Conductor - Connection Combination
- Cable to Flat
- Conductor - Copper Solid Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
- Conductor - Copper Solid Size Range
- 6 AWG-4/0 AWG
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 6 AWG-250 kcmil
- Conductor Type
- CU C Str-Size;CU C Solid-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- COPPER TERMINAL, 5.88 IN L
- Dimension - B Length fraction
- 2-31/50 in
- Dimension - B Length inch
- 2.62 in
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 2-3/25 in
- Dimension - Height inch
- 2.12 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 5.88 in
- Dimension - L Length Overall mm
- 149 mm
- Dimension - N inch
- 0.62 in
- Dimension - Pad Size inch
- 1.5 x 3
- Dimension - Pad Width inch
- 1.50 in
- Dimension - Width fraction
- 2-11/25 in
- Dimension - Width inch
- 2.44 in
- Dimension - Width mm
- 62 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.44 in
- End Connection
- Bolted
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- MSDS Flag
- No
- Number of Conductors
- 1
- Number Of Conductors
- 1
- One Wrench Installation
- Y
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 11.46 lb.
- Package - GTIN - Package
- 30781810002279
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810002278
- Package - Total Units
- 6 EA
- Package Weight
- 11.46 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Pad Alignment
- Offset
- Physical Attribute - Pad Configuration
- 1.50 x 3 - 2 holes
- Physical Attribute - Pad Orientation
- Straight
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: High Copper Alloy Alloy Reversible Cap Terminal For Joining A Wide Range Of Cable To Equipment Pads, Tongue Is Side Formed To Provide Adequate Clearance And Terminal Is Designed For One-Wrench Installation, Wire Type: Copper Tubing, Conductor Clamping Hardware: 1/2-13, Installation Torque: 480 IN-LB, Pad Configuration: Straight Offset
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- SUBSTATION CONNECTOR
- Sub Class Code
- B21B0OF
- Type
- NAH
- UL Listed
- No
- Width
- 2.44 in
