Burndy NA154N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

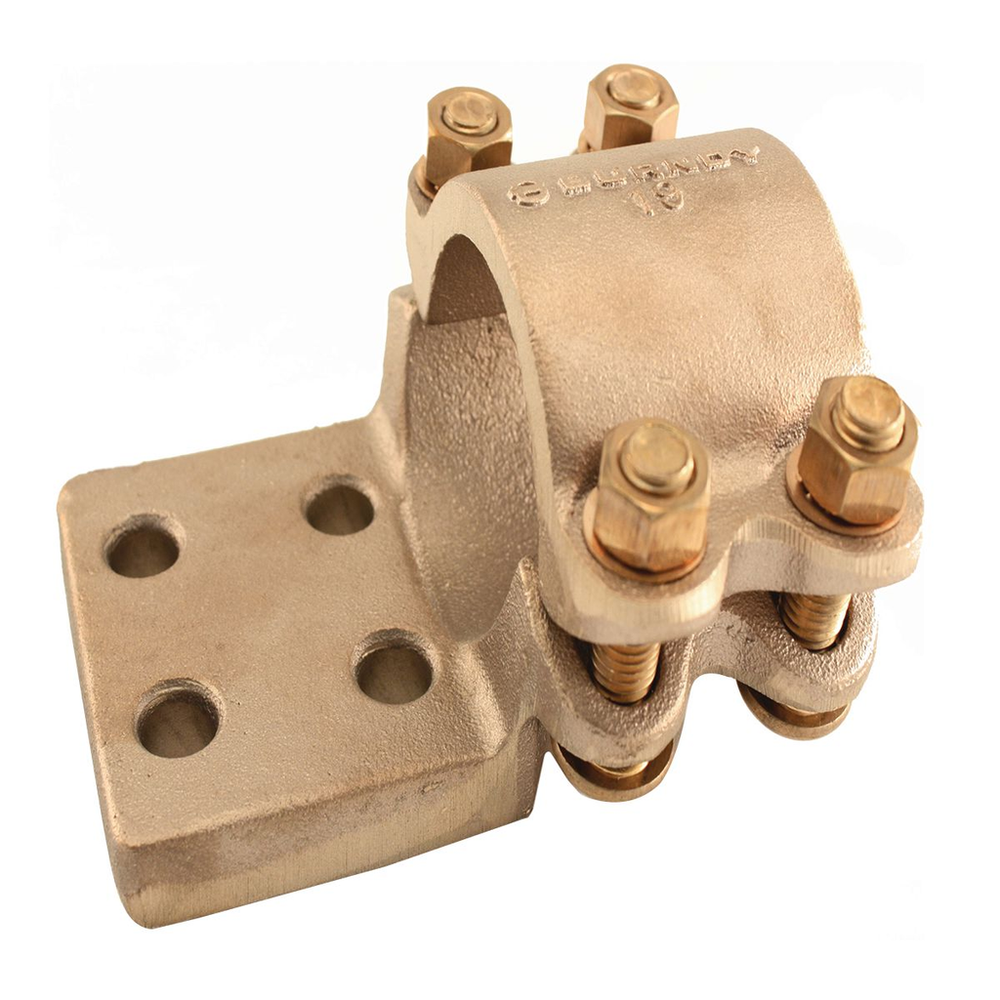

Copper Bolted Terminal , Tube to Flat , 1" Cu Pipe , 4 Pad Holes , 230 kV.Copper Bolted Terminal , Tube to Flat , 1" Cu Pipe , 4 Pad Holes , 230 kV.
Burndy NA154N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Substation
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002445
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002446
- Certification Agency
- Proposition 65
- Clamping Element Design
- Body and Cap
- Class Code
- B21
- Conductor - Connection Combination
- Tube to Flat
- Conductor - Copper Tube EH Size
- 1 IPS
- Conductor - Copper Tube EH Size Range
- 1 IPS
- Conductor - Copper Tube Std Size
- 1 IPS
- Conductor - Copper Tube Std Size Range
- 1 IPS
- Conductor Type
- CU Tube Std-Size;CU Tube EH-Size
- Connector Type
- Terminal
- Country of Origin
- US
- Dimension - B Length inch
- 2.00 in
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 2-1/8
- Dimension - Height inch
- 2.06 in
- Dimension - Hole Size fraction
- 9/16
- Dimension - Length Overall inch
- 5.25 in
- Dimension - L Length Overall mm
- 133 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 3.00 in
- Dimension - Width inch
- 2.75 in
- Dimension - Width mm
- 70 mm
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Copper Alloy
- Material - Hardware
- DURIUM™ Silicon Bronze
- Number Of Conductors
- 1
- One Wrench Installation
- Y
- Package - GTIN - Package
- 30781810002446
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Pad Alignment
- Offset
- Physical Attribute - Pad Configuration
- 3 x 3 - 4 holes
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B21B0OF
- UL Listed
- No
