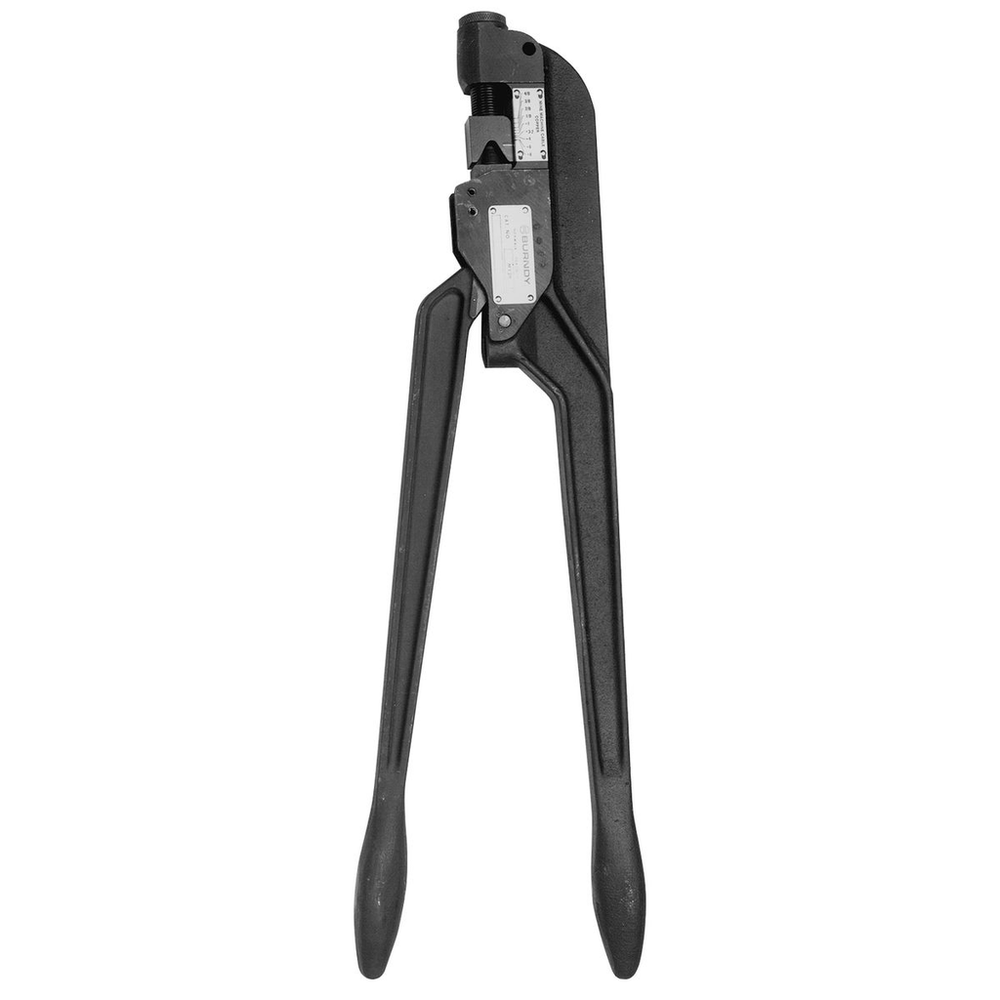

Burndy MY2911

Certifications

• EU RoHS Indicator
  • Yes

Specifications

• Application
  • Crimping
• Application - For Use On
  • #8-250 kcmil CU Code, 30 Navy-250 Navy CU Navy Cable, #8-4/0 Flex CU Mine Machine Cable
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• Buy American Compliant
  • Yes
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810462201
• Certification Agency
  • Proposition 65
• Class Code
  • B82
• Country of Origin
  • US
• Crimping Ranges
  • #8 Str. - 250 kcmil, 30 Navy - 250 Navy, #8 Str. - 4/0 Str
• Description - Invoice
  • CRIMPER, MECH, DIELESS 29-11
• Die Type
  • Dieless
• Dimensions
  • 22.65 in x 4.86 in x 1.12 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2 in
• Finish Type
  • Black Matte
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8205595560
• Height
  • 1.12 in
• Image Actual Or Representative
  • A
• Lead Time
  • 11 wk
• Length
  • 22.65 in
• Lowest Level UOM
  • Each
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Overall Length
  • 22.65 in
• Product Type
  • MY Series
• Special Features
  • Features: Save On Capital Investment With The Type MY HYTOOL That Accommodates A Wide Range Of Connector/Conductor Combinations From 8 AWG Stranded - 250 KCMIL, Save Time, Money, And Lower Installed Cost With The Original Dieless MY Tool Design, No Separate Dies Required To Purchase Or To Lose, Fast And Easy Tool Setting For The Connector/ Conductor Combination Simply By Aligning The White Scribe On The Nest Die With The Wire Size On The Gauge For Proper Crimping Results, Easy To Adjust Nest Die With Knurled Steel Knob And Machine Threads, Quality Tool With Precision Machines Indentor, Component Parts And Tool Body, Fast, Medium And High Volume Crimping Is Easily Accomplished By Bench Mounting The Type MY Tool In The BMY-BCH-MT Bench Mount Adapter, A Single Bolt Holds The MY HYTOOL Securely Using The 0.31 IN Diameter Mounting Hole In The Bench Mount Adapter, High Quality Rugged Tool Design Manufactured From Heavy Duty Forged Steel With Strong Reinforced Back And Handles, Covered Handles Available On The MY29-3C, MY29-11C And MY29-3CF HYTOOL, Comfort Grip Handles For Long Periods Of Usage, Compression Terminals And Splices Are UL Listed And CSA Certified When Installed With Type MY HYTOOL, 5-Year Limited Warranty, Case And Lugs: No, Conductor Type: Copper Navy, Covered Handles: No, Accepts Dies: No, Weight: 8 LB, Permanent Dies: Yes, Fully Covered: No, Cutting Dies Available: No
• Standard Package Quantity
  • 1
• Standards - RoHS Compliance Status
  • EX
• Stock Indicator
  • S - Shelf Stock
• Sub Brand
  • HYTOOL
• Sub Class Code
  • B82B82M
• Tool Type
  • Mechanical Dieless Crimper
• Trade Name
  • HYTOOL™
• Warranty
  • 5 year limited warranty
• Weight
  • 8 lb.
• Width
  • 2 in
