Burndy LSC5561
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

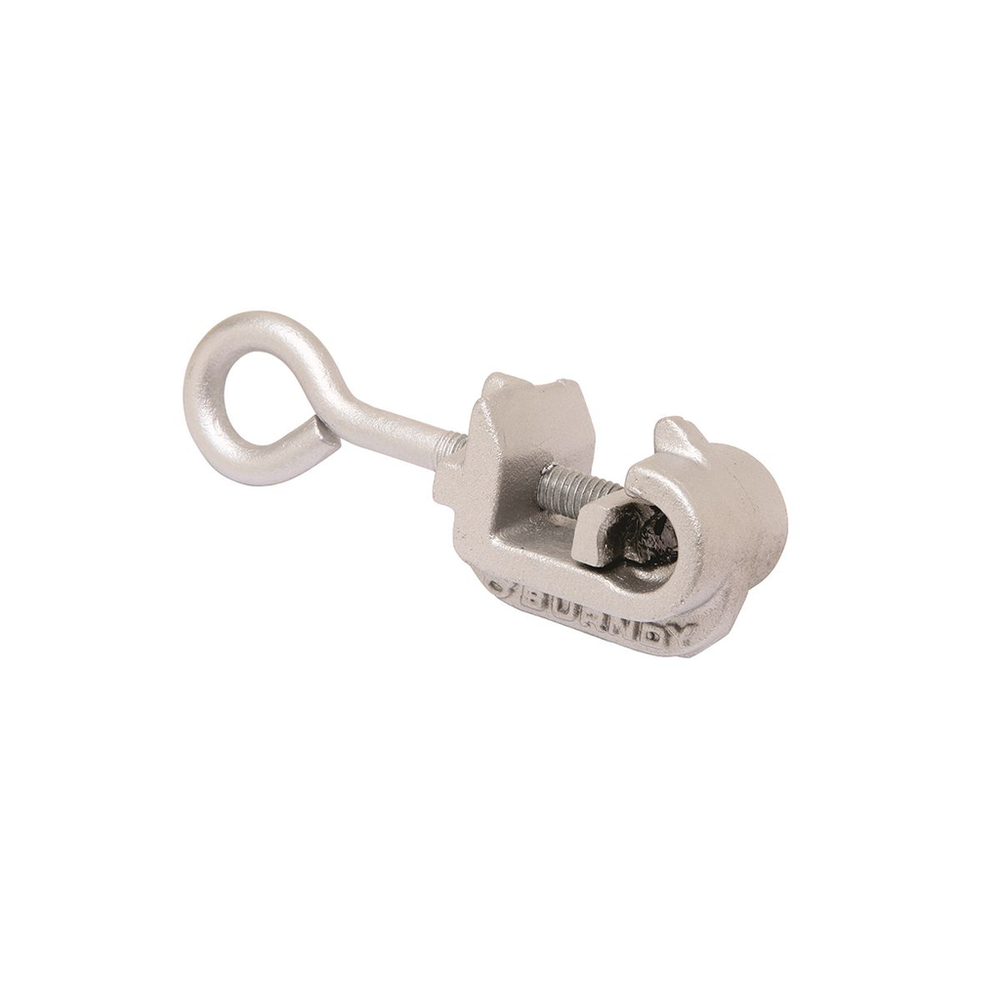

Cast Al Alloy Lightning Shield Clamp Assembly, 4/0 STR-556 AAC, 5.9 IN L, Galvanized Steel 3/8''-16 Eyebolt,insulation dia:1.34".Cast Al Alloy Lightning Shield Clamp Assembly, 4/0 STR-556 AAC, 5.9 IN L, Galvanized Steel 3/8''-16 Eyebolt, insulation dia:1.34"
Burndy LSC5561 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Aluminum And ACSR Primary Covered Conductor (Tree Wire)
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810084960
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810084961
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - AL Str Size
- 4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil
- Conductor - AL Str Size Range
- 4/0 AWG-556 kcmil
- Country of Origin
- US
- Description - Invoice
- LIGHTING SHIELD CLAMP
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - B Length inch
- 1.5 in
- Dimension - Length Overall inch
- 5.90 in
- Dimension - L Length Overall mm
- 150 mm
- Each - Number of Sub Packs
- 1 EA
- Each - Pack Description
- Each
- Each - Width
- 1.50 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum Alloy
- Material - Hardware
- Galvanized Steel
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Oxide Inhibitor Type
- Penetrox A-13
- Package - Gross Weight per Pack
- 29.5 lb.
- Package - GTIN - Package
- 30781810084961
- Package Height
- 6 in
- Package Length
- 14.38 in
- Package - Number of Sub Packs
- 50 EA
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810084960
- Package - Total Units
- 50 EA
- Package Weight
- 29.5 lb.
- Package Width
- 10.88 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Mechanical
- Special Features
- Features: Cast Aluminum Lightning Shield Clamp With A Galvanized Steel Eye Bolt For Use On Covered Aluminum And ACSR Primary Overhead Distribution Conductors (Tree Wire), They Are Designed To Protect The Tree Wire From Burn-Down Causing Service Interruption During High Lightning Activity, For Further Application Details Contact The Factory, Conductor Groove Is Pre-Filled With PENETROX A13, Which Is Compatible With Cable Insulation And Individually Bagged, Accommodates Cable Dia. a: 0.528 - 0.858 IN, Length: 5.9 IN
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- CONNECTOR
- Sub Class Code
- B31B5BF
- Type
- Arc Protection Device
- Width
- 1.50 in
