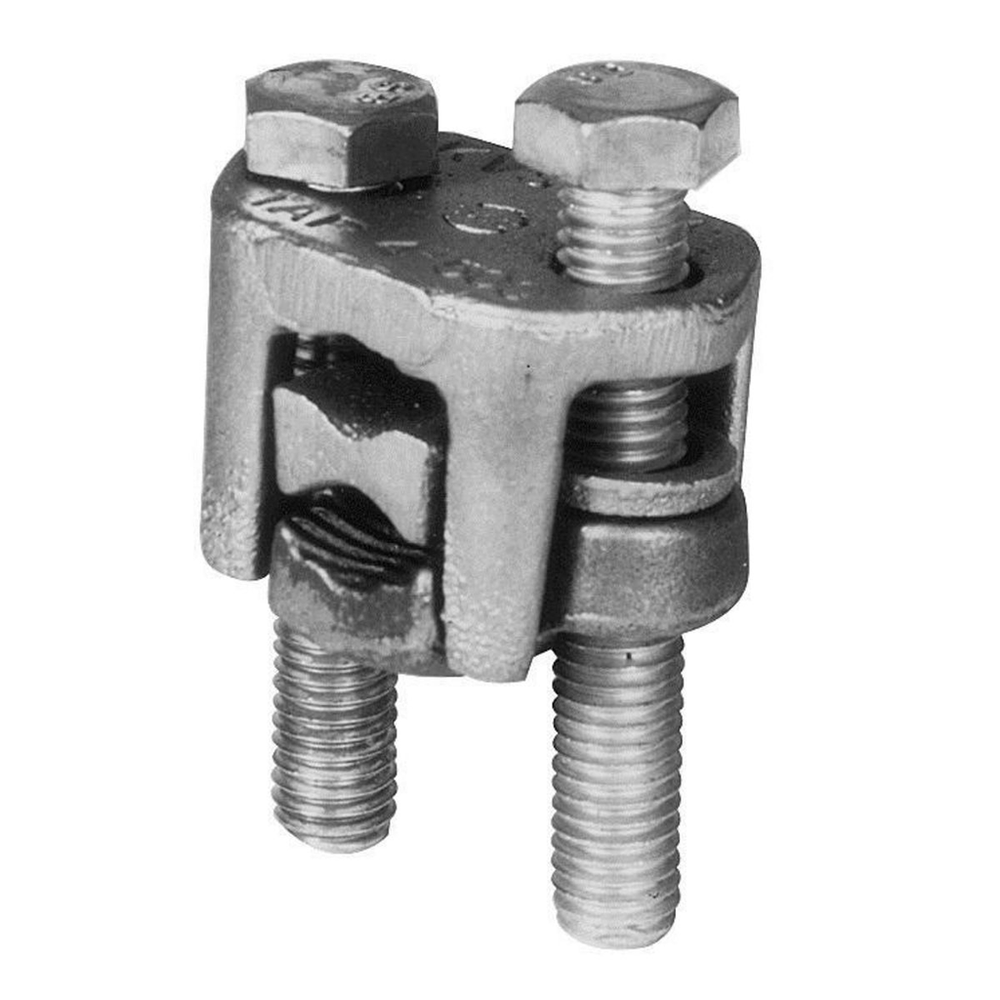

Burndy KVSW34
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Mechanical Connector For CUWeld and Copper Supplied with a CU alloy Spacer that separates run and tap conductors, Recommended Torque: 375 LBS.Mechanical Connector For CUWeld and Copper Supplied with a CU alloy Spacer that separates run and tap conductors, Run: 400 - 500 kcmil, Tap: 4 str. - 500 kcmil
Burndy KVSW34 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper And Copperweld Conductors
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810067307
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810067308
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Copper Str Run
- 400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Run Range
- 400 kcmil - 500 kcmil
- Conductor - Copper Str Tap
- 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Tap Range
- 4 str. - 500 kcmil
- Conductor Type
- CU C Str-Size
- Country of Origin
- MX
- Dimension - Height inch
- 3.06 in
- Dimension - Length Overall inch
- 1.34 in
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Width inch
- 2.20 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Freight Class Code
- 16027000
- Harmonization Code
- 8535909904
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 480 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10.44 lb.
- Package - GTIN - Package
- 30781810067308
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810067307
- Package - Total Units
- 12 EA
- Package Weight
- 0.000 lb.
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Standard Package Quantity
- 12
- Standards - RoHS Compliance Status
- EX
- Sub Brand
- OKLIP
- Sub Class Code
- B30B35F
- Trade Name
- OKLIP™
- Type
- KVSW
- UL Listed
- No
