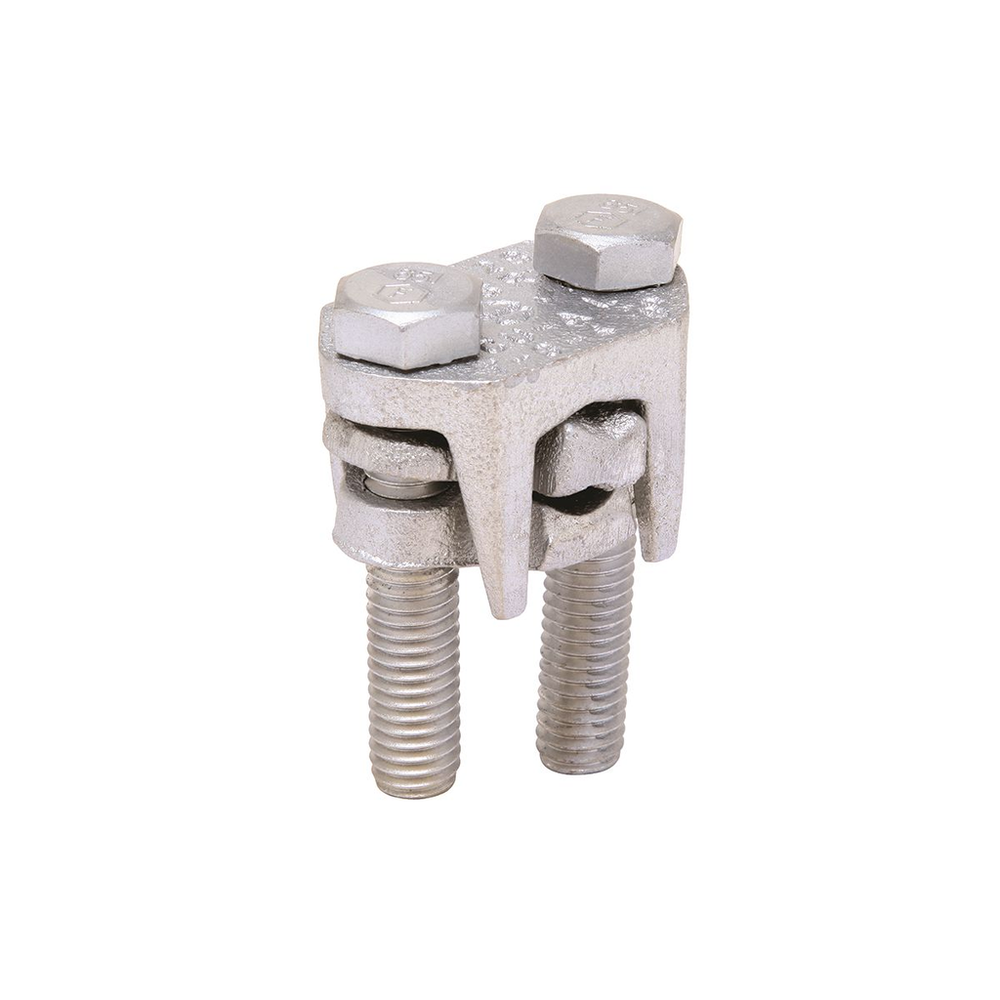

Burndy KVSU40
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Tin-plated copper alloy connector with tin plated silicon bronze hardware. Spacer bar separates dissimilar conductors and provides long contact length,Tightening torque: 500 in -lb,wrench size:3/4 cross flats.Tin plated copper alloy with tin plated hardware; spacer bar to separate dissimilar conductors
Burndy KVSU40 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Combinations of Copper, Aluminum, ACSR, AAAC And 5005, Heavy Duty Connections
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810084502
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810084503
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Run Range
- 336.4 kcmil-715.5 kcmil
- Conductor - ACSR Str Tap Range
- 3/0 ACSR - 715.5 kcmil
- Conductor - AL Str Run Range
- 400 kcmil- 800 kcmil
- Conductor - AL Str Tap Range
- 4/0 str.- 800 kcmil
- Conductor - Copper Str Run Range
- 400 kcmil- 800 kcmil
- Conductor - Copper Str Tap Range
- 4/0 str. - 800 kcmil
- Conductor - Galvanized Steel Str Run Range
- 3/4 in - 1 in
- Conductor - Galvanized Steel Str Tap Range
- 1/2 in - 1 in
- Conductor Type
- AL C Str-Run;AL C Str-Tap;CU C Str-Run;CU C Str-Tap;AAAC C 5005-Run;AAAC C 5005-Tap;AAAC C 6201-Run;AAAC C 6201-Tap;ACSR C Str-Run;ACSR C Str-Tap;GAL Steel C Str-Run;GAL Steel C Str-Tap;Cu Weld Sol.- Run;Cu Weld Sol.- Tap
- Country of Origin
- MX
- Description - Invoice
- UNIV OKLIP 400-800
- Dimension - Height fraction
- 3-1/2 in
- Dimension - Height inch
- 3.53 in
- Dimension - Length Overall inch
- 1.62 in
- Dimension - L Length Overall mm
- 41 mm
- Dimension - Stud Size inch
- 1/2 in
- Dimension - Width fraction
- 2-1/2 in
- Dimension - Width inch
- 2.50 in
- Dimension - Width mm
- 64 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.50 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Installation Torque Recommended in-lb
- 500 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.04 lb.
- Package - GTIN - Package
- 30781810084503
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810084502
- Package - Total Units
- 6 EA
- Package Weight
- 8.04 lb.
- Package Width
- 4.56 in
- Plated
- Y
- Plating Type
- Tin
- Product Type
- Mechanical
- Replaced Catalog Number
- KVSU40
- Special Features
- Features: Compact, High Strength, Tin Plated Copper Alloy Two-Piece Connector With Spacer And Tin-Plated Silicon Bronze DURIUM Hardware, Recommended For Heavy Duty Connections, Spacer Separates Dissimilar Conductors And Provides Long Contact Length, Neoprene Ring Prevents Loss Of Shorter Bolt During Installation, Longer Peened Bolt Permits Swivel Action For Easier Installation, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Spacer: Yes, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded Copper, Solid Copper, Solid Copperweld, Steel Nominal Diameter, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded Copper, Solid Copper, Solid Copperweld, Steel Nominal Diameter, Installation Torque: 500 IN-LB, Length: 1-5/8 IN, Width: 2-1/2 IN, Height: 3-1/2 IN
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- OKLIP
- Sub Class Code
- B30B3HF
- Trade Name
- OKLIP™
- Type
- KVSU, Universal
- UL Listed
- No
- Width
- 2.50 in
