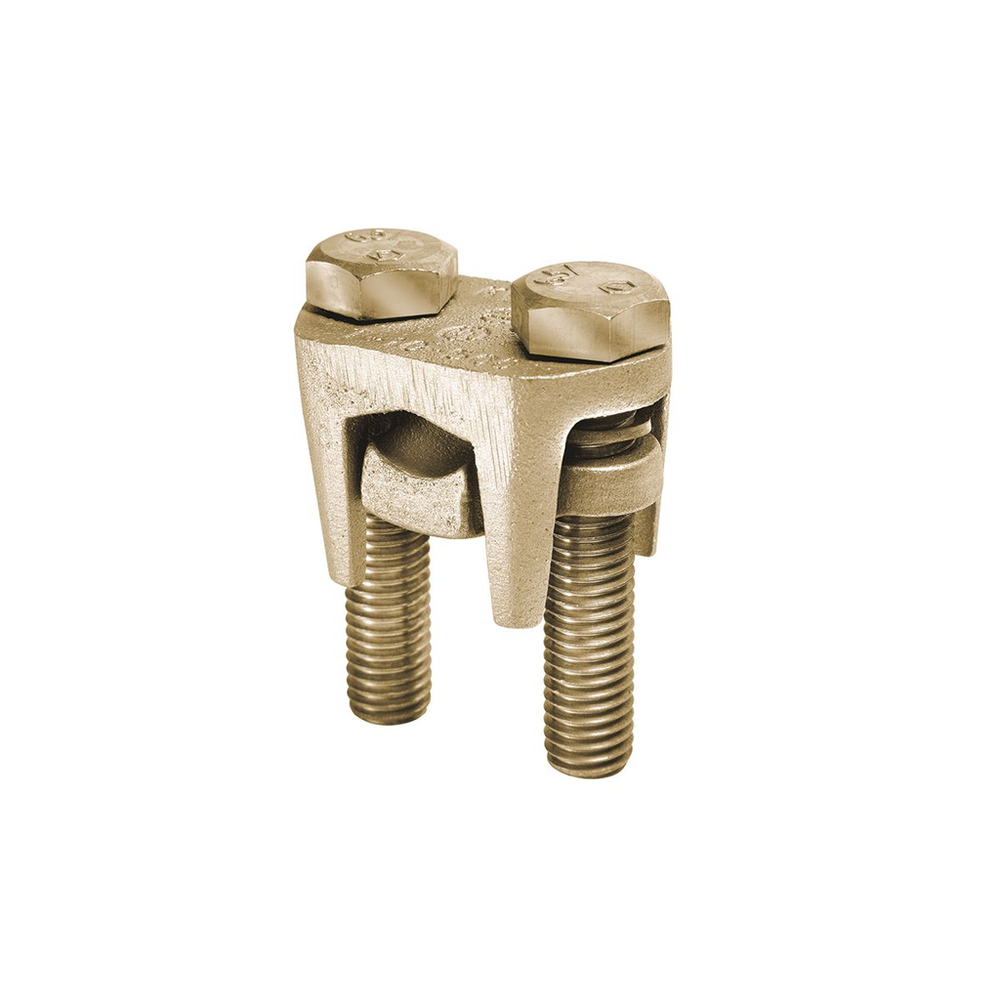

Burndy KVS44
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compact, two-piece, high strength, high copper alloy BURNDY OKLIP recommended for heavy duty connections. Neoprene rings hold DURIUM bolts in place during installation.Installed with ordinary wrench,wrench size: 15/16cross flats.Compact 2-piece, high strength, copper alloy with neoprene rings
Burndy KVS44 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper And Copperweld, Heavy Duty Connections
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- Buy American Compliant
- No
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810064603
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810064604
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Copper Str Run Range
- 500 kcmil- 1000 kcmil
- Conductor - Copper Str Tap Range
- 3/0 str.- 1000 kcmil
- Conductor Type
- CU C Str-Run;CU C Str-Tap;CU Weld C Solid-Run;CU Weld C Solid-Tap
- Country of Origin
- MX
- Description - Invoice
- 1000R-1000T CU 2BLT CONN
- Dimension - Height inch
- 3.71 in
- Dimension - Stud Size inch
- 5/8 in
- Dimension - Width inch
- 3.03 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.03 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL486C
- Installation Torque Recommended in-lb
- 500 LBS/in
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 11.46 lb.
- Package - GTIN - Package
- 30781810064604
- Package Height
- 4.50 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810064603
- Package - Total Units
- 6 EA
- Package Weight
- 11.46 lb.
- Package Width
- 6.13 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Mechanical
- Special Features
- Features: Compact, Two-Piece, High Strength, High Copper Alloy BURNDY OKLIP Recommended For Heavy Duty Connections, Neoprene Rings Hold DURIUM Bolts In Place During Installation, Installed With Ordinary Wrench, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Installation Torque: 500 IN-LB, Conductor Spacer: No
- Standard
- UL486C
- Standard Package Quantity
- 6
- Standards - Industry Standards Met
- UL486C
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- OKLIP
- Sub Class Code
- B30B34F
- Trade Name
- OKLIP™
- Type
- KVS
- UL Listed
- Yes
- Width
- 3.03 in
