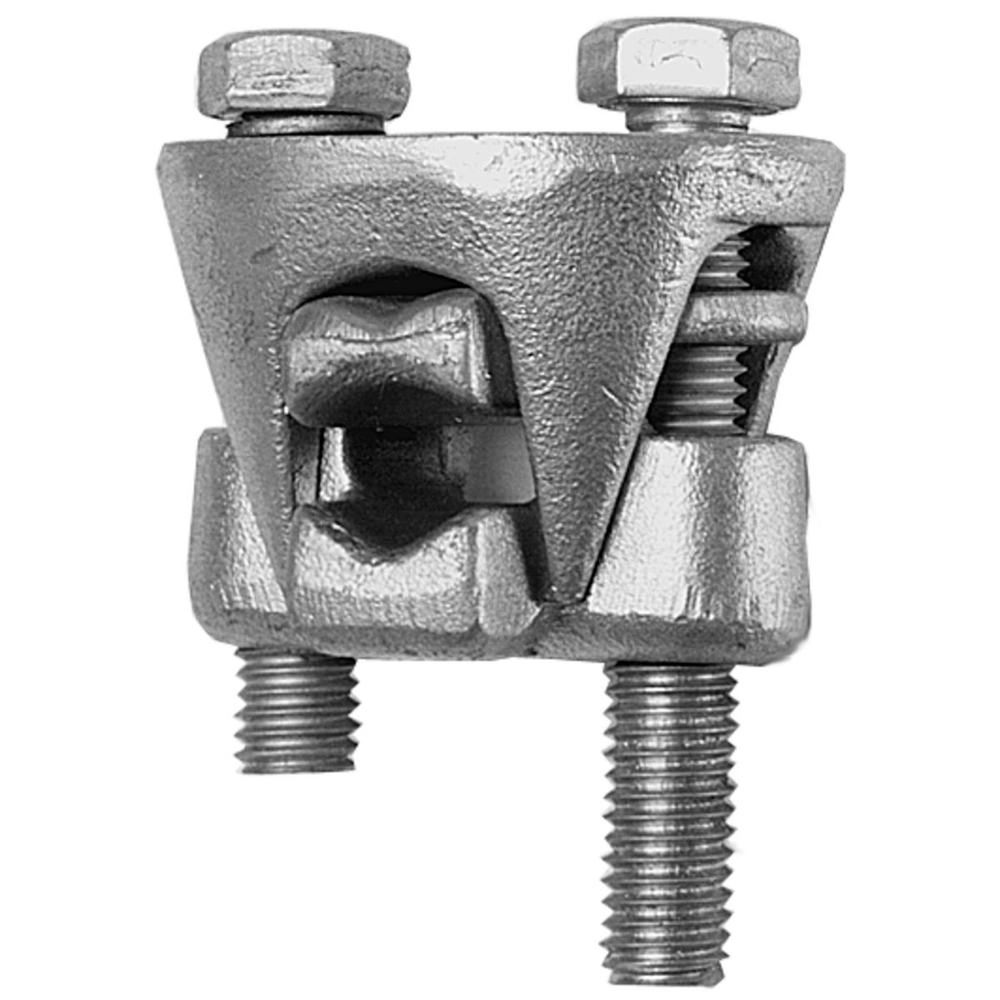

Burndy KVS40A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
High-conductivity, non-copper bearing aluminum alloy connector. Spacer bar separates dissimilar conductors. Intended for heavy duty applications,conductor range,Run Cu and Al :400-800.Aluminum connector with spacer bar to separate dissimilar metals; for heavy duty applications; for use with copper and alumimun conductors
Burndy KVS40A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- ETL
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810073506
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810073507
- Certification Agency
- Proposition 65
- Class Code
- B30
- Country of Origin
- US
- Description - Invoice
- AL OKLIP 400-800/3/0-800
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.84 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.6 lb.
- Package - GTIN - Package
- 30781810073507
- Package Height
- 4.63 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 12
- Package - Pack Description
- Package
- Package Quantity
- 12 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810073506
- Package - Total Units
- 12 EA
- Package Weight
- 9.6 lb.
- Package Width
- 6.38 in
- Special Features
- Features: Three-Piece, High-Conductivity, Non-Copper Bearing Aluminum Alloy Connector With Thick Spacer And Aluminum Hardware, Recommended For Heavy Duty Dissimilar Metal Applications, Spacer Separates Conductors And Provides Long Contact Length, Belled Entrances Prevent Chafing, Permit Easier Assembly Of Conductors, Longer Peened Bolt Permits Swivel Action For Easier Installation, Neoprene Ring Prevents Loss Of Shorter Bolt, PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run And Tap: Commercial Stranded Copper, Commercial Stranded Aluminum, ACSR, 5005, AAAC, Stud/bolt Size: 1/2 IN, Length: 2-7/16 IN, Installation Torque: 300 IN-LB, Width: 2-7/8 IN, Height: 4-1/16 IN, Conductor Spacer: Yes
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- OKLIP
- Sub Class Code
- B30B3GF
- Type
- KVS
- UL Listed
- No
- Width
- 2.84 in
